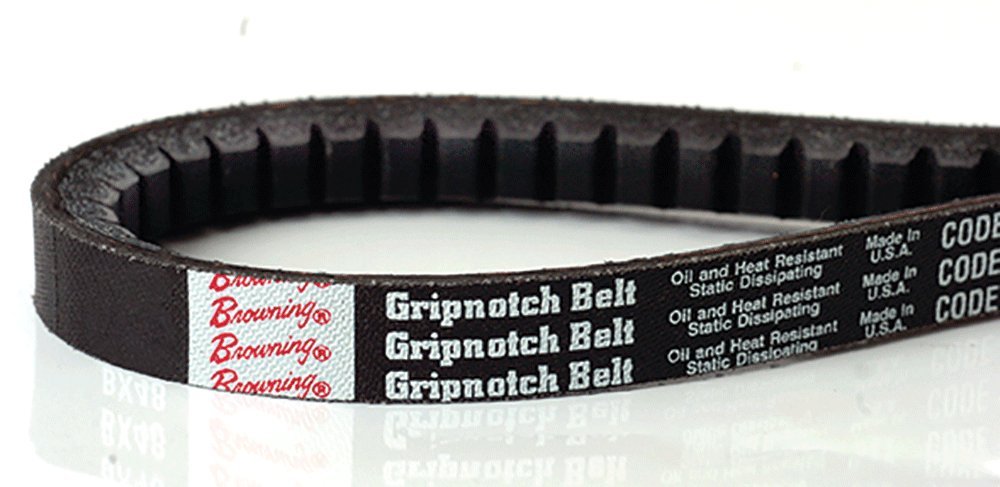

Browning 2454791 Gripnotch Belt AX Belt Section 75.3 Pitch Length

Product Description

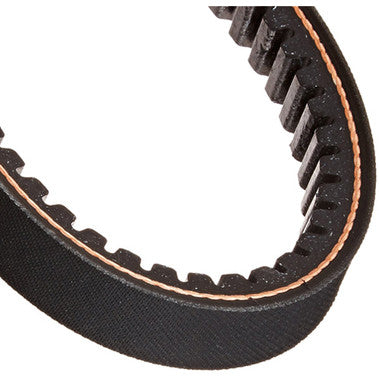

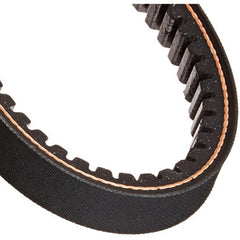

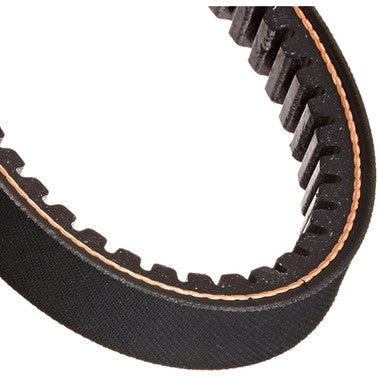

The Browning 2454791 Gripnotch Belt is an AX belt section with a 75.3 pitch length. This V-belt is oil and heat resistant, and static conducting. It features a notched, cogged design for 98% efficiency. Constructed from EPDM material, it offers an expanded operating temperature range. The belt utilizes a ground form design to reduce vibration and wear, ensuring enhanced stability and performance in power transmission applications.

• Utilizes ground form design to reduce vibration, wear, and initial belt tension loss.
• Constructed from EPDM material, offering an expanded operating temperature range from -60 degrees F to +230 degrees F.
• Features fabric on top and bottom for enhanced stability and performance.

Product Highlights

Oil and heat resistant, static conducting, notched, 98% efficient, EPDM, and cogged design.

Product Information

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 2454791
• Country of Origin: US

Technical Specifications

• Model Number: 2454791
• Manufacturer: Regal
• Product Type: Mechanical Belt
• Brand: Browning
• Number of Items: 1
• Package Quantity: 1

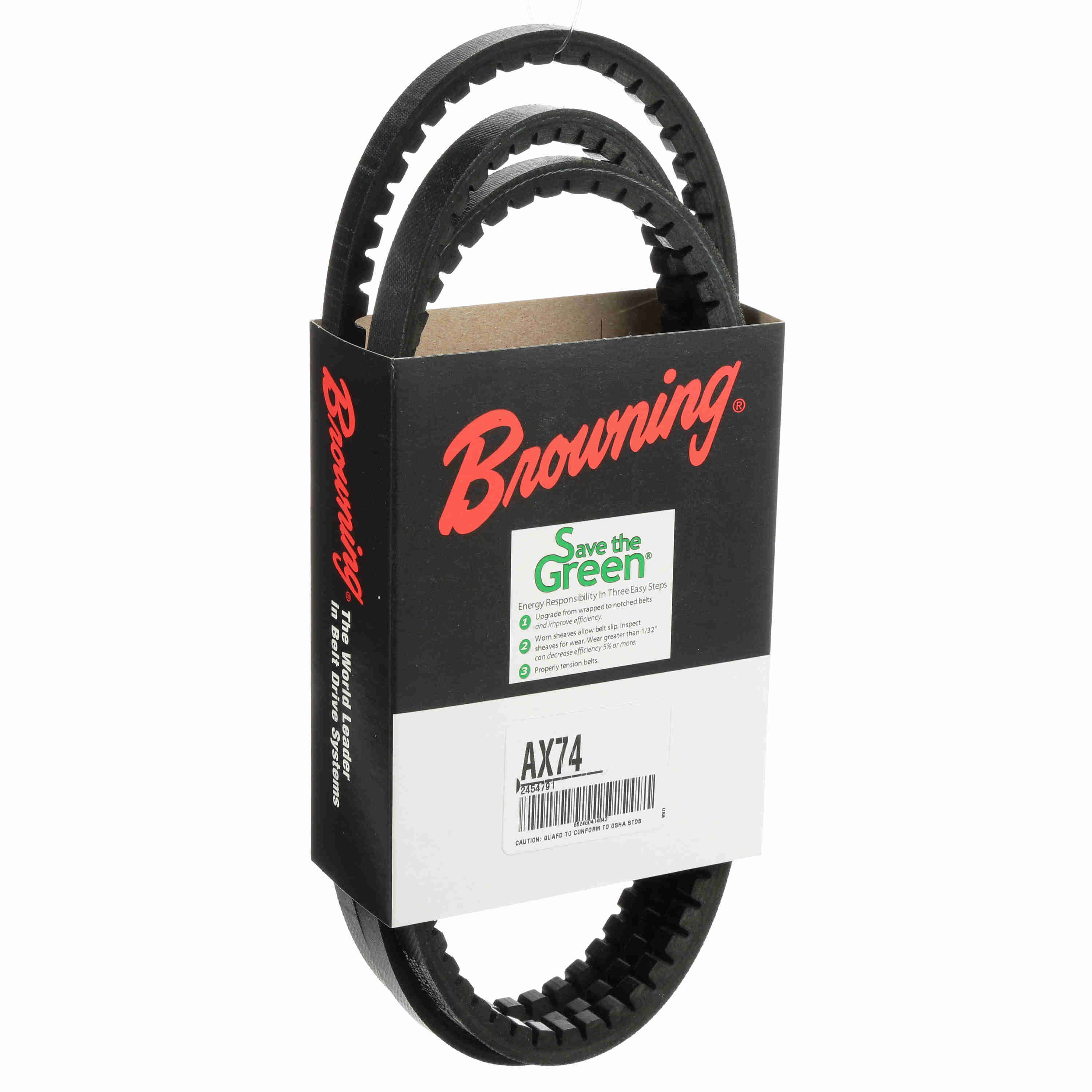

• Part ID: AX74
• Pitch Length: 75.3
• Item Type: V-Belt
• Cross Section: AX
• Number of Ribs: 1
• Operating Temperature: 250°F
• Outside Length: 76.2 inches
• Reinforced Material: Nylon
• Thickness: 5/16 inch
• Top Width: 1/2 inch
• Design: Notched
• Series: TorqTitan
• Belt Design: Cogged
