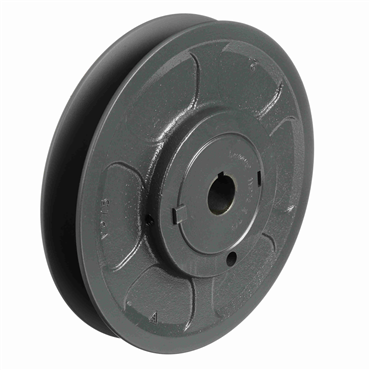

Browning 1VP75X7/8 Finished Bore Cast Iron Variable Pitch Sheave

Product Description

The Browning 1VP75X7/8 is a finished bore cast iron variable pitch sheave. This product is suitable for various applications including pumps, fans, mixers, ventilators, and conveyors. The sheave features the widest range of variable speed sheaves available in the market.

• Compatible with standard one groove O, A, B or 5V sheaves
• Constructed from durable cast iron material
• Available in multiple groove configurations

Product Highlights

This variable pitch sheave provides flexibility in speed adjustment and is a reliable choice for mechanical power transmission.

Product Information

Standard Information

• Brand: Browning
• MPN: 1VP75X7/8

Technical Specifications

• Bore Diameter: 0.875 inches
• Outside Diameter: 7.5 inches
• Weight: 10.065 pounds
• Material: Cast Iron
• Number of Grooves: 1
• Belt Section: 4L or A, 5L or B, 5V
• Turns Open (A or 4L): 5
• Turns Open (B or 5L): 6
• Pitch Diameter (Max): 6.2 inches
• Pitch Diameter (Min): 7.4 inches
