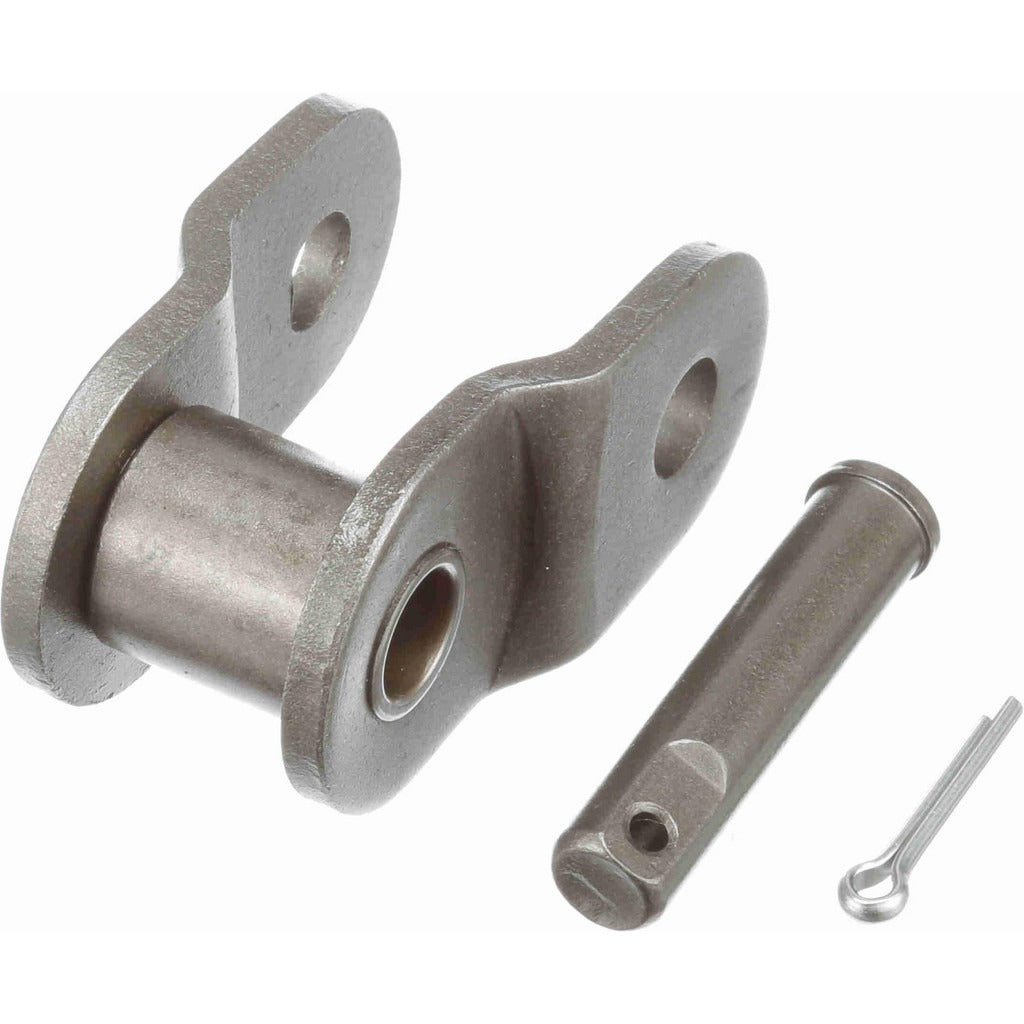

Browning 1298025 Offset Link 100 Chain 1-1/4 Inch Pitch

Product Description

The BROWNING 1298025 is a steel offset link designed for use with single strand roller chain. It connects two sections of ANSI 100 chain at a 1.25-inch pitch, allowing for odd-length chain assemblies where a standard connecting link cannot be used. The offset link uses a pin attachment type and is manufactured to ANSI standards. With a roller diameter of 0.75 inches, a roller width of 0.75 inches, and a pin diameter of 0.375 inches, this link matches the dimensional requirements of 100 series chain. Installation is typically performed by millwrights, maintenance technicians, and industrial mechanics working on drive or conveyor systems.

This offset link is suited for industrial drive applications using ANSI 100 single strand roller chain. Common uses include conveyor systems, power transmission drives, and general industrial machinery where chain length must be adjusted to an odd number of pitches. The single strand configuration and ANSI 100 designation make it a standard fit in a wide range of equipment found in manufacturing, agriculture, and material handling environments.

Key Features

• ANSI 100 series single strand roller chain offset link
• 1.25-inch pitch matches standard 100 chain dimensions
• Pin attachment type for secure chain connection
• Roller diameter of 0.75 inches and roller width of 0.75 inches
• Pin diameter of 0.375 inches for proper fit within chain strand
• Steel construction for durability in industrial drive applications

Compatibility

Designed for use with ANSI 100 single strand roller chain with a 1.25-inch pitch. Consult chain manufacturer specifications to confirm fitment before installation.

Installation Notes

Installation is typically performed by a qualified millwright or maintenance technician. Disengage and lock out all power to the drive system before working on the chain. Use appropriate chain tools to press or clip the connecting pin securely; never strike the link with a hammer in a way that could deform the pin or plates. Verify chain tension and alignment after installing the offset link and before returning the system to service.
