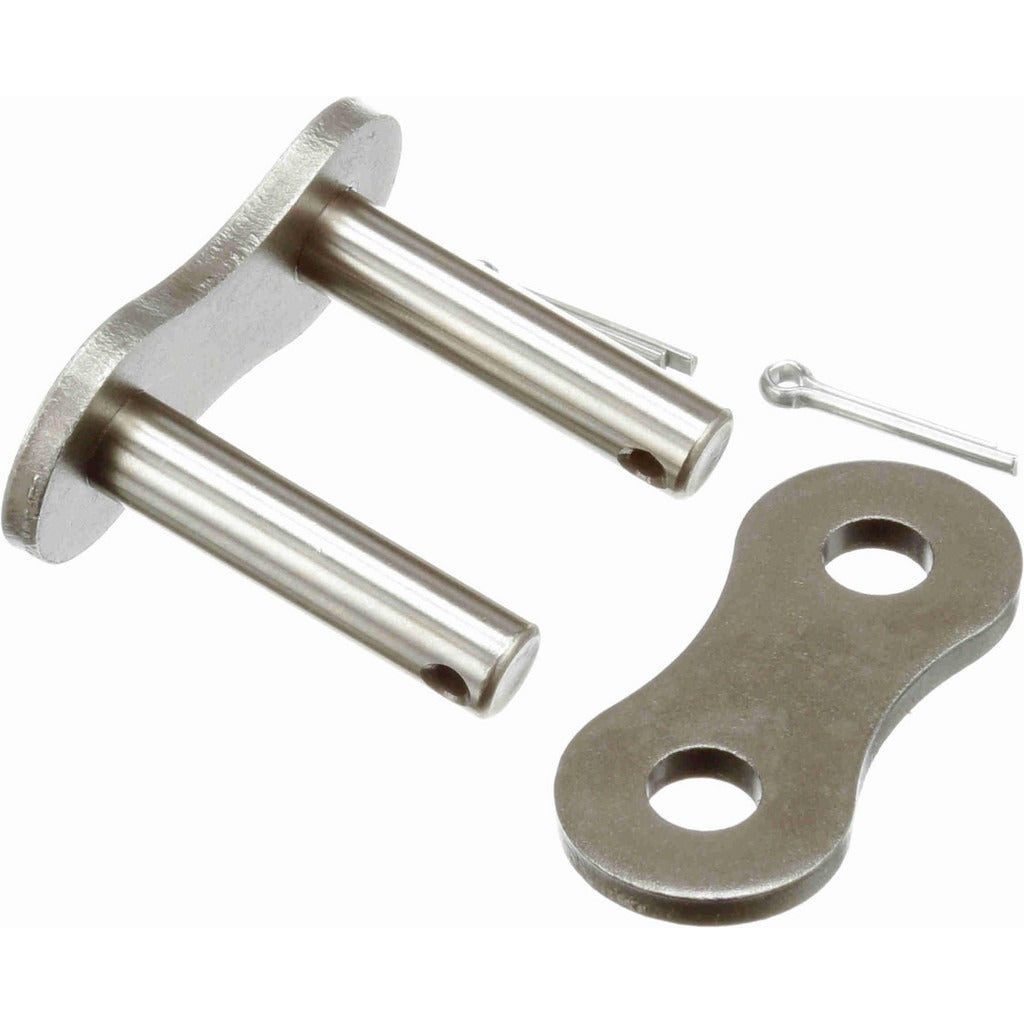

Browning 1297647 Single Strand 120 Chain Connecting Link

Product Description

The BROWNING 1297647 is a steel connecting link designed for single strand ANSI 120 roller chain with a 1.5 inch pitch. It serves as the removable closure link that joins chain ends, allowing for field assembly, length adjustment, or replacement without special tooling. The pin-style attachment secures the link in place during operation. This link is used by maintenance technicians, millwrights, and industrial mechanics working on conveyor, drive, and power transmission systems. The 0.437 inch pin diameter and 0.875 inch roller diameter conform to ANSI standards for 120 chain, ensuring proper fit and load handling within the chain assembly.

This connecting link is suited for industrial and commercial power transmission applications where ANSI 120 single strand roller chain is specified. Typical uses include conveyor drive systems, agricultural equipment, industrial machinery, and mechanical power transmission drives. The steel construction handles the mechanical demands of standard 120 chain service loads. It is packaged individually and is intended for field installation or maintenance replacement in existing chain runs.

Key Features

• Pin-style attachment for secure, removable field connection
• Steel construction for durability in standard power transmission applications
• Conforms to ANSI standards for 120 chain
• 1.5 inch pitch matches ANSI 120 single strand roller chain dimensions
• 0.875 inch roller diameter and 1.0 inch roller width for proper chain engagement

Compatibility

Designed as an OEM-style replacement connecting link for ANSI 120 single strand roller chain with a 1.5 inch pitch.

Installation Notes

Installation is performed by millwrights or maintenance mechanics servicing power transmission or conveyor systems. De-energize and lock out the drive before working on the chain assembly per LOTO procedures. Ensure the connecting link pin is fully seated and the retaining clip is secured before returning the drive to service. Do not operate the chain drive with an improperly seated connecting link.
