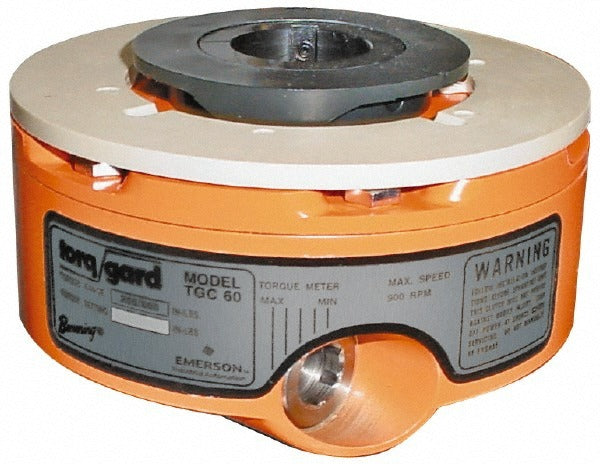

Browning 1295245 Clutch Torque Guard Sprocket 26 Tooth

Product Description

The BROWNING 1295245 is a steel clutch torque guard with sprocket designed for use in mechanical power transmission applications. This component features 26 teeth and measures 6.63 inches in overall height and 4.38 inches in overall width, with a chain pitch of 0.75 inches. The part weighs 2.6 pounds and is manufactured from steel for durability under load cycling conditions. It is intended for installation by mechanical or industrial maintenance technicians working on drive systems that require torque-limiting protection. The torque guard function helps protect downstream drivetrain components from overload damage.

This torque guard with sprocket is designed for use with the Torq Gard 200 system. It is appropriate for industrial and commercial mechanical drive applications where controlled torque transmission and overload protection are required. The 26-tooth sprocket configuration suits common chain drive setups within that system family. Typical installations involve conveyor drives, processing equipment, and other machinery where drivetrain protection is a service priority.

Key Features

• 26-tooth sprocket integrated with torque guard clutch mechanism
• Steel construction for strength and wear resistance
• Overall height of 6.63 inches and overall width of 4.38 inches
• Sprocket width of 0.459 inches with 0.75 inch pitch
• Designed for use with the Torq Gard 200 system
• Weighs 2.6 pounds for straightforward handling during installation

Compatibility

Designed for use with the Torq Gard 200 system as specified by the manufacturer.

Installation Notes

Installation should be performed by a qualified mechanical or industrial maintenance technician. Disconnect and lock out all power sources to the drive system before beginning any installation or service work. Verify sprocket alignment and chain tension after installation per the equipment manufacturer specifications. Consult applicable ANSI and OSHA standards for mechanical power transmission safety during service.
