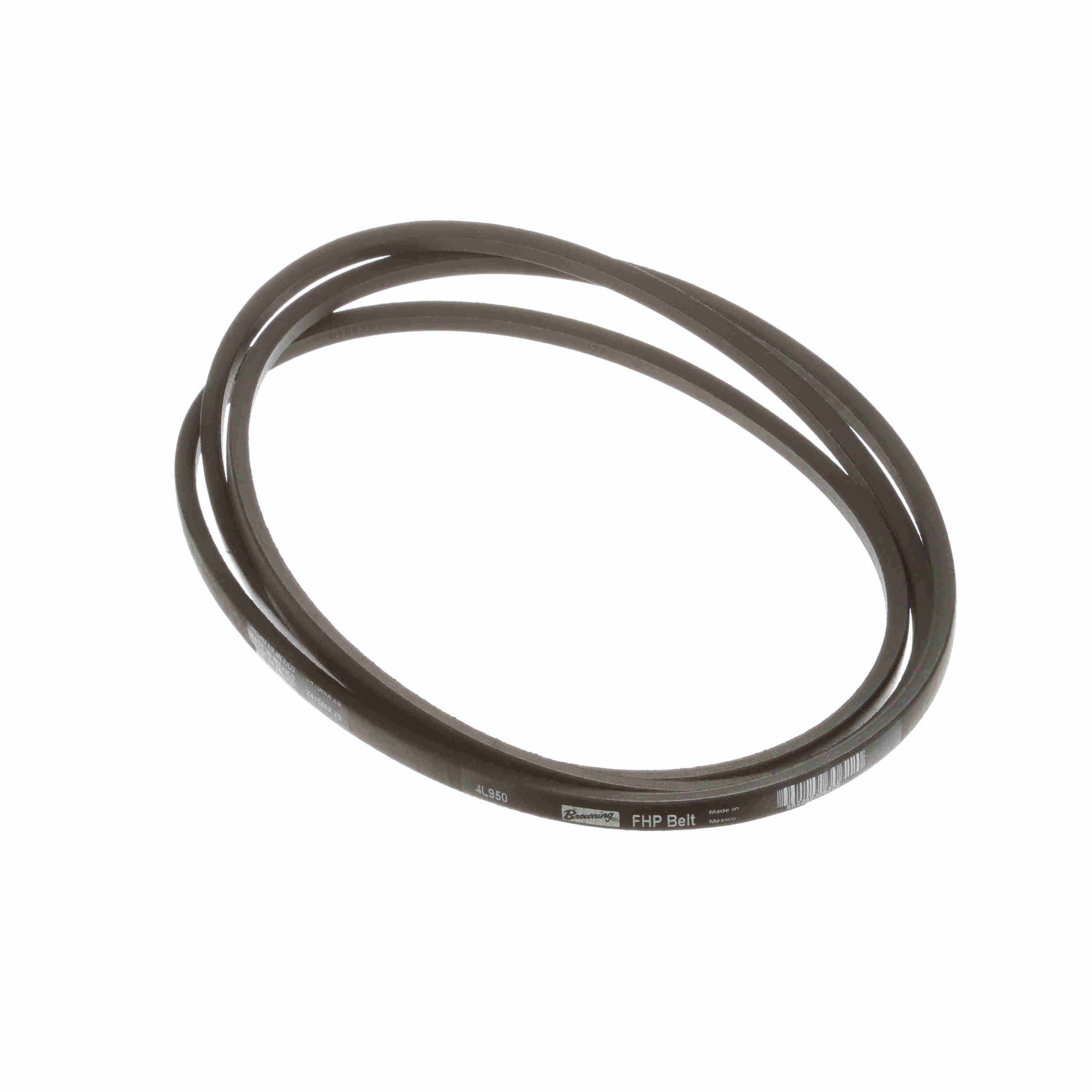

Browning 1095033 Rubber Fhp Belt 4L 0.5 in X 95 in

Product Description

The BROWNING 1095033 is a fractional horsepower (FHP) V-belt designed for light-duty power transmission applications in HVAC, refrigeration, and general mechanical equipment. This wrapped, non-cogged belt features a 4L section profile with a top width of 0.5 inches and an outside length of 95 inches, with a pitch length of 94 inches. Constructed from neoprene rubber with cotton reinforcing cord, it delivers reliable flex and grip across a range of small-motor drive systems. The black wrapped construction meets RMA standards for FHP belt performance and dimensional accuracy. HVAC technicians and mechanical service professionals are the typical installers.

The 1095033 is suited for residential and light commercial equipment using fractional horsepower motors, including fan drives, blower assemblies, and small compressor drives common in HVAC and refrigeration units. The 4L section is a widely used FHP profile compatible with standard 4L-groove sheaves and pulleys. The belt is rated for continuous operation up to 140 degrees F, making it appropriate for equipment rooms and rooftop installations where ambient temperatures can be elevated. It ships as a single belt with joined ends, ready for direct installation.

Key Features

• 4L section profile with 0.5-inch top width and 95-inch outside length for direct FHP drive replacement
• Wrapped, non-cogged construction provides smooth, consistent power transfer on standard sheaves
• Neoprene rubber compound with cotton reinforcing cord for flex strength and durability
• Rated to 140 degrees F maximum operating temperature
• Meets RMA standards for FHP belt dimensional and performance requirements
• Single belt with ends joined — no splicing or field assembly required

Compatibility

Designed as an OEM-style replacement FHP drive belt for equipment using standard 4L-section sheaves and pulleys rated for fractional horsepower motor drives.

Installation Notes

Installation should be performed by a qualified HVAC technician or mechanical service professional. Always de-energize and lock out the equipment before removing or installing drive belts. Loosen the motor mount to provide slack before seating the belt — never pry or roll a belt onto a sheave under tension, as this can damage the cord reinforcement. After installation, adjust motor position to achieve proper belt tension and check sheave alignment before returning the unit to service.

Technical Specifications

• Belt Section: 4L
• Outside Length: 95 inches
• Pitch Length: 94 inches
• Top Width: 0.5 inches
• Thickness: 0.3125 inches
• Construction Type: Wrapped, Non-Cogged
• Material: Neoprene Rubber
• Reinforcing Cord Material: Cotton
• Color: Black
• Maximum Operating Temperature: 140 degrees F (60 degrees C)
• Standards Met: RMA
• Band Type: Belt with Ends Joined

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 1095033
