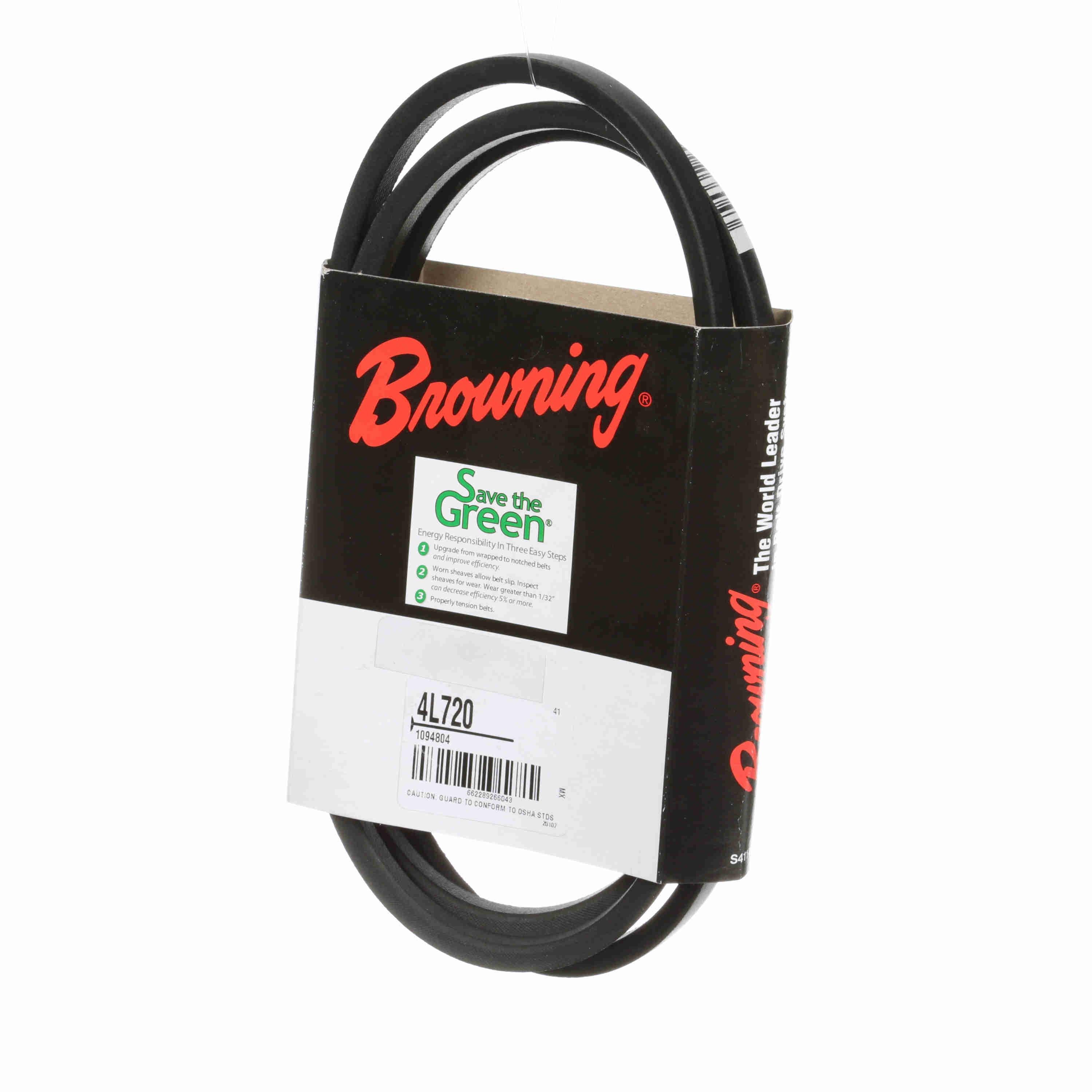

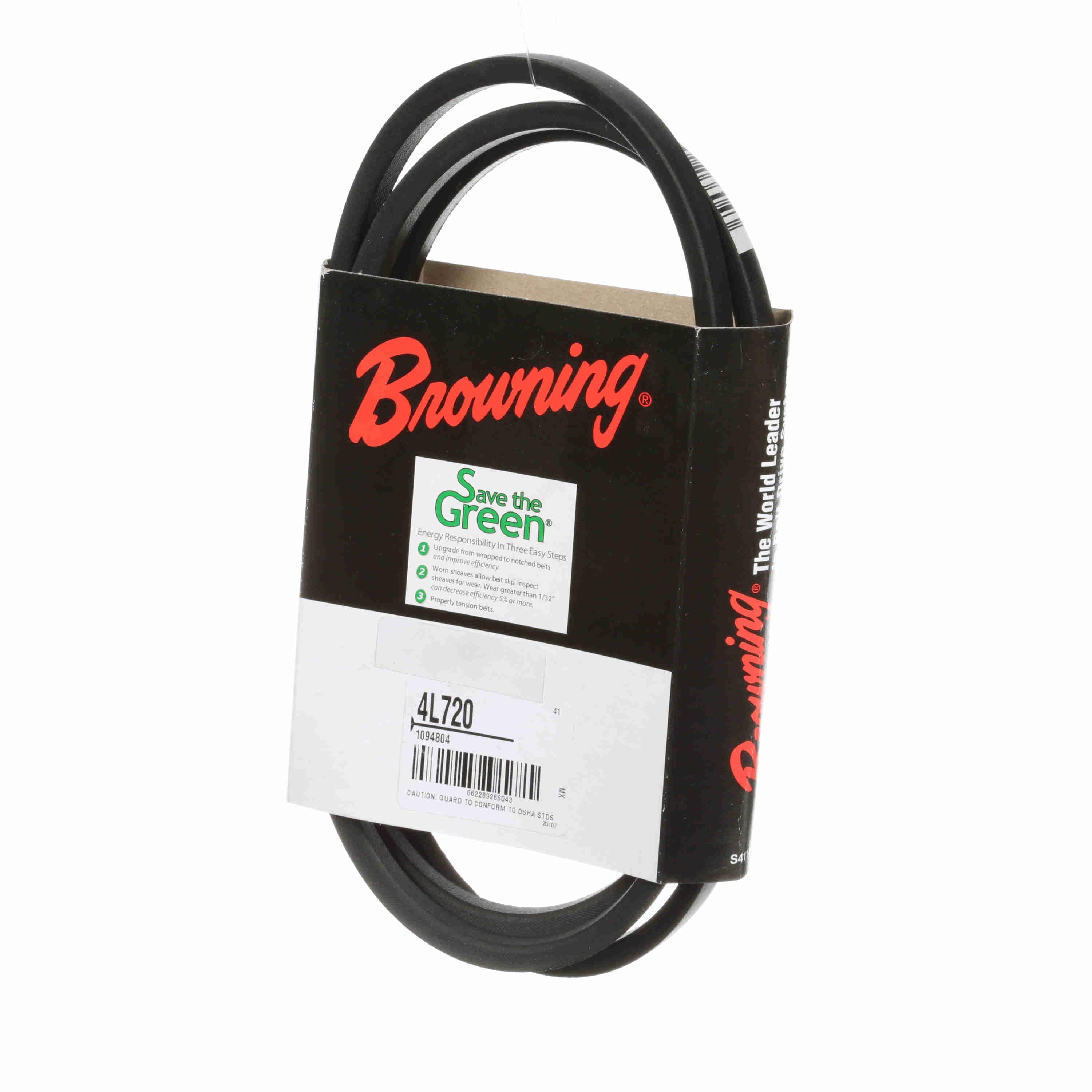

Browning 1094804 Non-cogged Fhp V-belt 4L 72 in Neoprene

Product Description

The BROWNING 1094804 is a non-cogged fractional horsepower (FHP) V-belt designed for light-duty power transmission in HVAC, refrigeration, and general mechanical applications. Built from neoprene, this 4L-section belt measures 0.5 inches in top width, 72 inches in outside length, and 5/16 inch in thickness. The non-cogged construction delivers a smooth, consistent drive profile suited for smaller motors and blower assemblies. Neoprene construction provides resistance to heat, oil, and environmental exposure common in mechanical rooms and rooftop units. HVAC technicians and mechanical contractors install this belt as a direct replacement on compatible FHP drive systems.

This belt is a standard 4L-section FHP V-belt, used in residential and light commercial HVAC equipment, evaporative coolers, small blower assemblies, and general-purpose machinery requiring a 72-inch outside-length drive belt. The 4L cross-section is one of the most common fractional horsepower profiles, making this a frequently stocked replacement item for service technicians maintaining belt-driven fan and blower systems.

Key Features

• Non-cogged design provides smooth, low-vibration power transfer on FHP drives
• 4L section with 0.5-inch top width fits standard FHP sheaves and pulleys
• 72-inch outside length for compatibility with common blower and fan drive configurations
• Neoprene construction resists heat, oil, and ozone exposure
• Rated up to 140 degrees F operating temperature
• Single-rib profile for straightforward sheave alignment and installation

Compatibility

Designed as a standard replacement for 4L-section fractional horsepower belt drives requiring a 72-inch outside length. Fits any sheave or pulley machined to the 4L FHP profile specification.

Installation Notes

Installation is typically performed by HVAC technicians or mechanical contractors. Always disconnect and lock out electrical power to the unit before removing or installing drive belts. Adjust sheave center distance to allow belt seating without forcing, then set tension according to the equipment manufacturer's deflection specification. Do not pry the belt over sheave flanges, as this can cause internal cord damage that shortens belt life.

Technical Specifications

• Belt Type: Non-Cogged FHP V-Belt
• Section Size: 4L
• Top Width: 0.5 inches
• Outside Length: 72 inches
• Thickness: 0.3125 inches (5/16 in)
• Number of Ribs: 1
• Maximum Temperature: 140 degrees F
• Material: Neoprene

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 1094804
