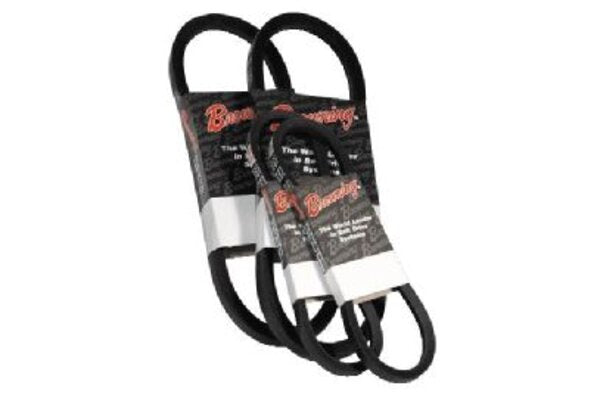

Browning 1094093 Fhp 3L Series Wrapped V-belt

Product Description

The BROWNING 1094093 is a fractional horsepower (FHP) wrapped V-belt in the 3L series, designed for light-duty power transmission in HVAC, fan, and small motor drive applications. Wrapped construction encases the belt in a reinforced fabric cover, enabling smooth, quiet operation across a range of sheave sizes. The belt is oil and heat resistant, making it suitable for equipment compartments where exposure to these conditions is common. Licensed HVAC technicians and motor drive specialists are the typical installers of this belt type.

This belt is used in residential and light commercial applications where fractional horsepower drives are specified. Common installations include belt-driven blower assemblies, small fan units, and auxiliary motor drives. The 3L cross-section is a standard FHP profile suited for smaller diameter sheaves where flexibility is critical. Its static-conducting construction helps dissipate static charge buildup during operation, which is especially relevant in sensitive equipment environments.

Key Features

• Wrapped construction for smooth, quiet power transmission
• Formulated for maximum flexibility with smaller diameter sheaves
• Oil and heat resistant for use in demanding equipment compartments
• Static conducting to dissipate static charge during operation
• 3L series FHP cross-section for light-duty drive applications

Compatibility

Designed as an OEM-style replacement for fractional horsepower belt-driven systems using a standard 3L series wrapped V-belt cross-section.

Installation Notes

Belt replacement should be performed by a qualified technician following applicable equipment lockout/tagout procedures before removing the belt guard or accessing the drive. Power must be fully de-energized and the drive at rest before installation. Verify sheave alignment and condition before fitting the new belt, and do not use tools to force the belt over sheave flanges, as this can damage the belt cover and shorten service life. Tension the belt according to the equipment manufacturer's specification for the 3L series profile.

Technical Specifications

• Series: 3L (FHP Wrapped)
• Construction: Wrapped
• Oil Resistant: Yes
• Heat Resistant: Yes
• Static Conducting: Yes

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 1094093
