Browning 1093988 V-Belt FHP 3L400 40 Inch Length

Product Description

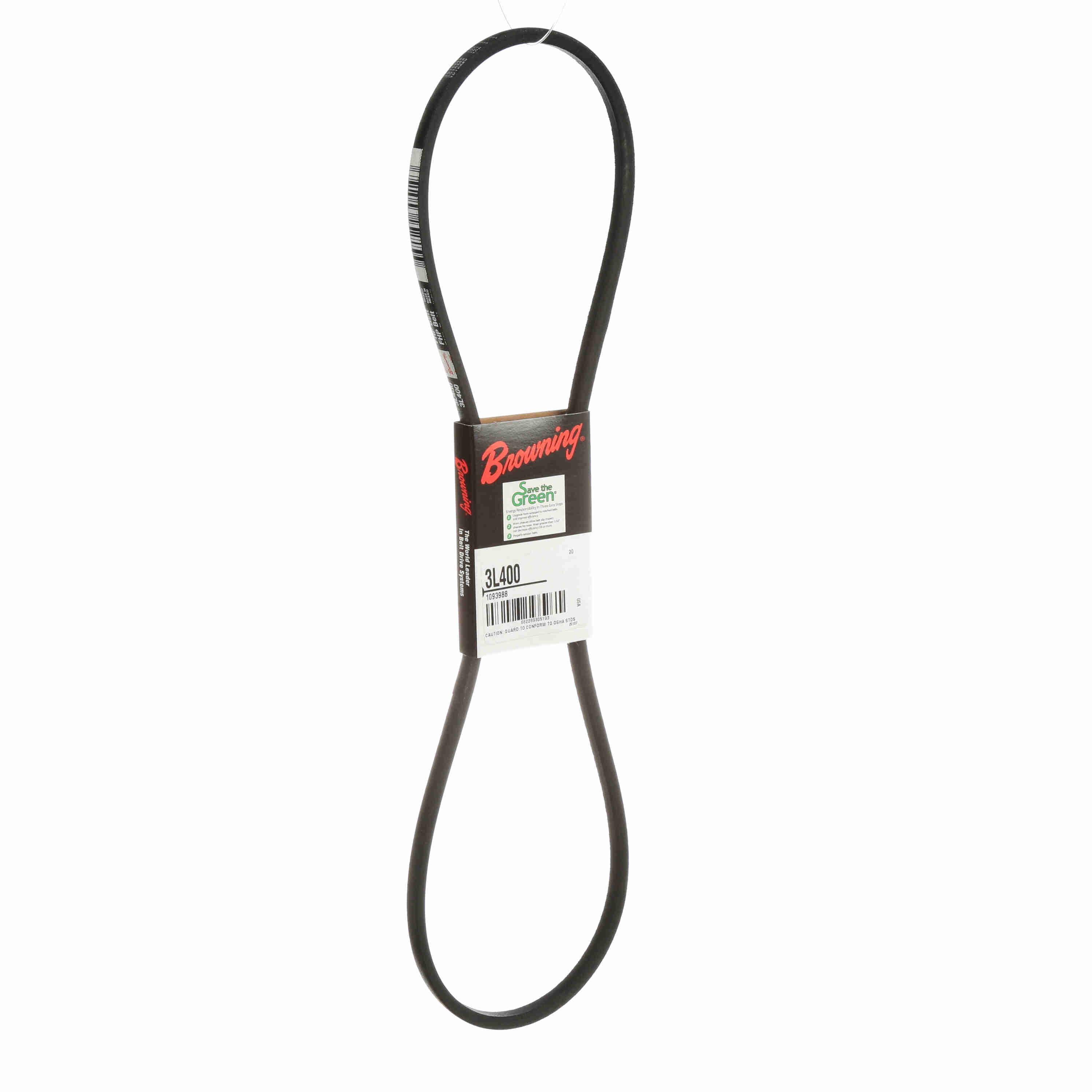

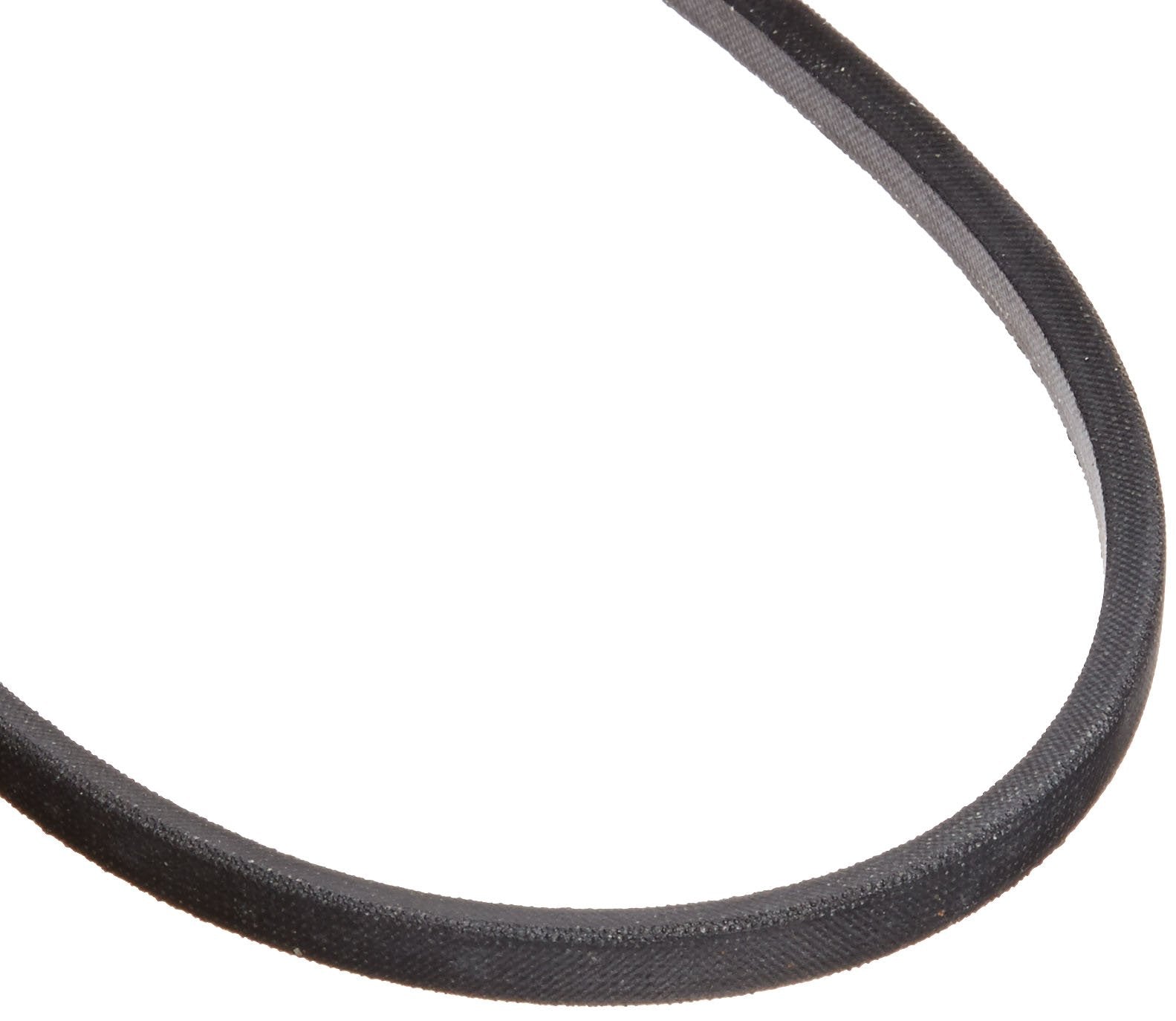

The Browning 1093988 V-Belt is a Standard V-Belt, specifically a 3L400 FHP Belt, featuring a 40-inch outside length. Its wrapped construction ensures smooth, quiet operation, making it suitable for light-duty drives. This non-cogged belt is formulated for maximum flexibility with smaller diameter sheaves and offers resistance to oil and heat, while also being static conducting. It is ideal for HVAC, agricultural, and general-purpose fractional-horsepower applications.

• Wrapped construction provides smooth, quiet operation.
• Formulated for maximum flexibility with smaller diameter sheaves.
• Oil and heat resistant - static conducting.

Product Highlights

Designed for fractional horsepower applications, this 3L400 V-belt ensures efficient and quiet power transmission.

Product Information

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 1093988
• Country of Origin: Mexico

Technical Specifications

• Industry Code: 3L400
• Type: Standard V-Belt
• Thickness: 4/25"
• Width: 9/32"
• Cubic Measurement: 0.0271
• Pitch Length: 39.3 inches
• Outside Length: 40 inches
• Product Type: MECHANICAL_BELT
• Section: 3L
• Number of Ribs: 1
• Operating Temperature: 140 deg F
• Material: Neoprene
• Application: Aggregate, Cement, Agriculture, HVAC, Minerals, Mining, Oil, Gas, Pulp, Paper and Unit Handling Industries
• Construction Type: Wrapped
• Resistance: Heat, Oil
• Item Type: FHP V-Belt
• Number of Bands: 1
• Outer Material: Rubber
• System of Measurement: Imperial
• Tensile Material: Cotton
• Band Type: Belt with Ends Joined
• Series: FHP Belts
• Standards Met: RMA
• Cogged: No
