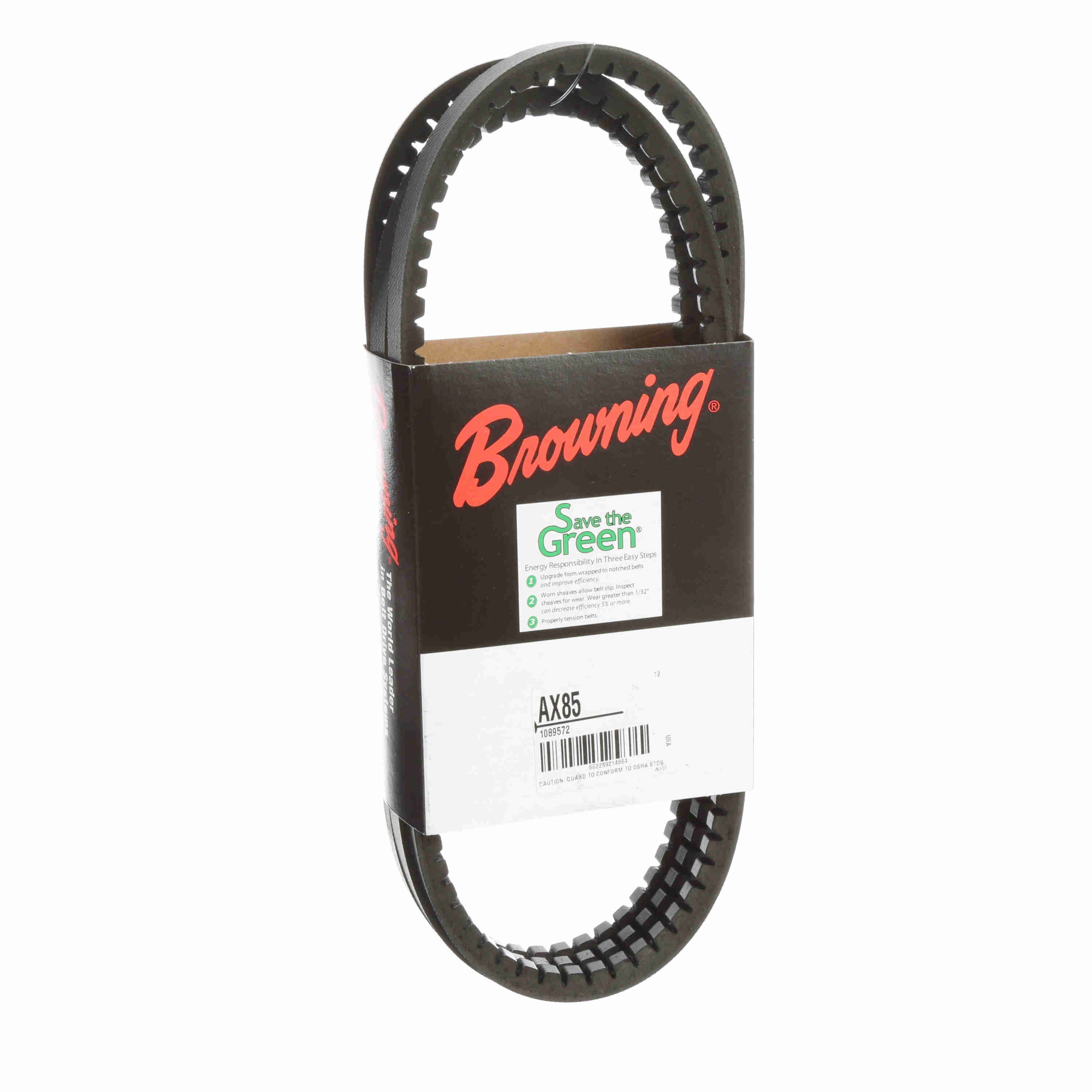

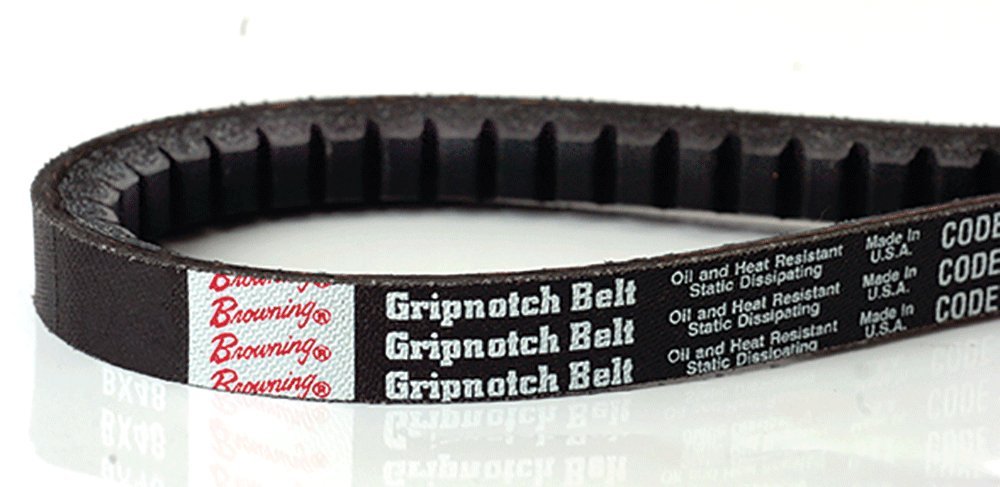

Browning 1089572 AX85 Gripnotch Belt AX Belt Section, 86.3 Pitch Length

Product Description

The Browning 1089572 AX85 Gripnotch Belt is an industrial V-belt designed for power transmission applications. It features an AX belt section with a pitch length of 86.3 and an outside length of 87.2 inches. This cogged V-belt is constructed from EPDM material, offering 98% efficiency and operating reliably in temperatures from -60°F to 250°F. It is oil and heat resistant, and static conducting. Common applications include fans, blowers, ventilation units, agricultural equipment, pumps, conveyors, and mixers.

• Ground Form Sidewalls Reduces Vibration and Increases Belt and Bearing Life
• Raw Edge Sidewalls Provide A Uniform, Anti-Slip Surface with Greater Flexibility
• Wider Notch Spacing Increases Rigidity and Stability While Also Reducing The Stress On The Cord Line

Product Highlights

Durable EPDM construction with 98% efficiency, oil and heat resistance, and static conducting properties for reliable power transmission.

Product Information

Standard Information

• Brand: BROWNING
• Manufacturer Part Number: 1089572
• Country of Origin: UNITED STATES

Technical Specifications

• Brand: Browning
• MPN: 1089572
• Manufacturer: Regal
• Product Type: MECHANICAL_BELT
• Belt Type: Cogged V-Belt
• Style: Gripnotch
• Model: AX85
• Cross Section: AX
• Pitch Length: 86.3
• Outside Length: 87.2 inches
• Belt Width: 1/2 inch
• Belt Thickness: 5/16 inch
• Material: EPDM
• Reinforced Material: Nylon
• Tensile Material: Polyester
• Number Of Bands: 1
• Number Of Ribs: 1
• Efficiency: 98%
• Operating Temperature Range: -60°F to 250°F
• Resistance: Oil-Resistant, Heat Resistant
• Static Conducting: Yes
• Standards: RMA
• UPC: 662289214884
• Country of Origin: USA
• Series: TorqTitan
