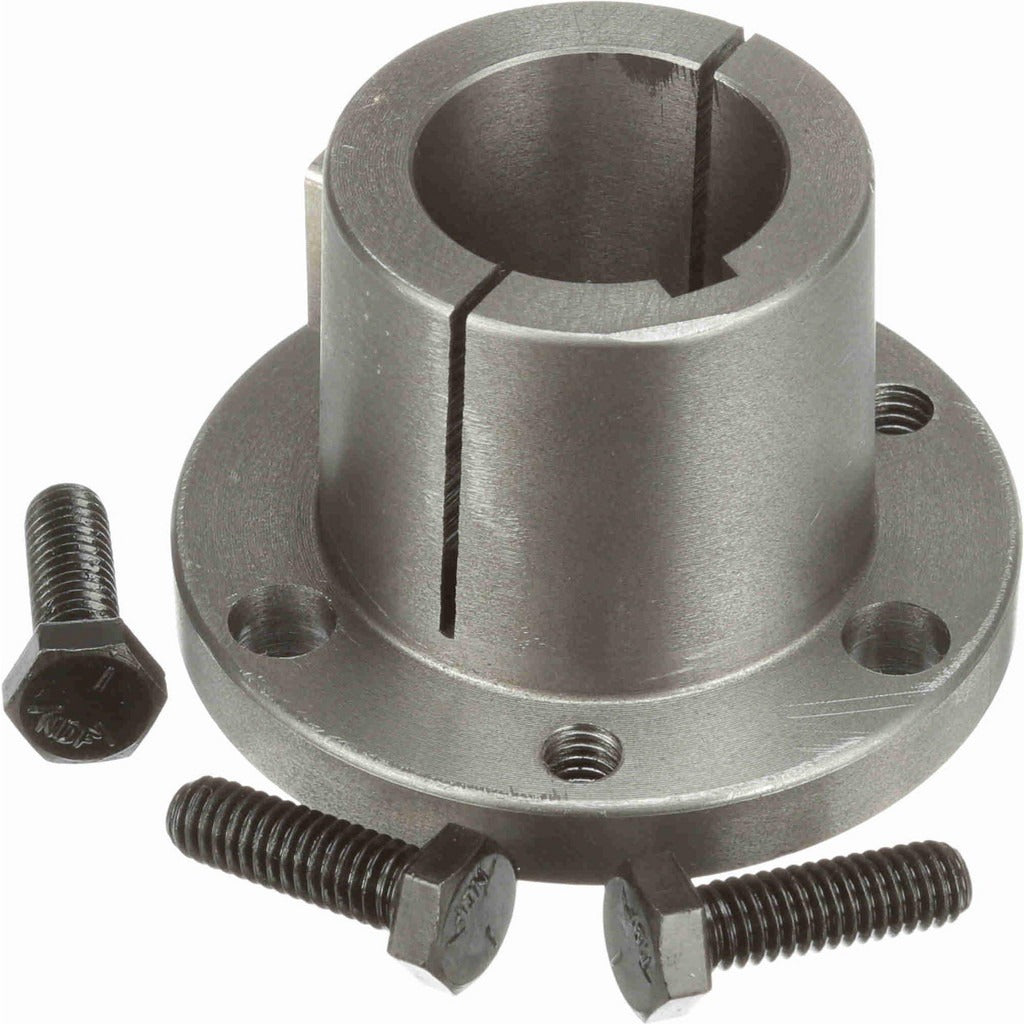

Browning 1069442 Type P Split Taper Sprocket Bushing

Product Description

The BROWNING 1069442 is a Type P split taper bushing designed for securing sprockets and sheaves to shafts in mechanical power transmission applications. With a 1.25-inch bore diameter and a 3-inch outside diameter, this bushing accepts a 0.25-inch wide by 0.125-inch deep keyway for positive shaft engagement. Cast from iron for durability, it is rated to a maximum torque of 192 inch-pounds. The P1 series bushing is installed by licensed millwrights, maintenance mechanics, and industrial technicians working on conveyor, drive, and pump systems.

This bushing is suited for use with split taper sprockets and sheaves in industrial and commercial drive system applications. The split taper design allows for easy installation and removal without requiring shaft disassembly, making it a practical choice for maintenance-heavy environments. It is commonly found in conveyor drives, fan assemblies, and pump drive trains where reliable shaft-to-hub connection is required.

Key Features

• Type P, Series P1 split taper bushing for use with compatible split taper sprockets and sheaves
• 1.25-inch bore diameter with 0.25-inch wide by 0.125-inch deep keyway
• 3-inch outside diameter
• Maximum torque rating of 192 inch-pounds
• Iron construction for strength and wear resistance
• Thread size 5/16 x 1 for mounting hardware engagement

Compatibility

Designed for use with split taper sprockets and sheaves. Compatible with any split taper hub system accepting a Type P, P1 series bushing with a 1.25-inch bore.

Installation Notes

Installation and removal should be performed by a qualified mechanic or millwright. Shut down and lock out all power to the drive system before servicing per OSHA lockout/tagout requirements. Clean the bore, shaft, and taper surfaces before assembly to ensure proper seating. Do not hammer the bushing onto the shaft; use the threaded jack screws to seat and release the taper as designed.
