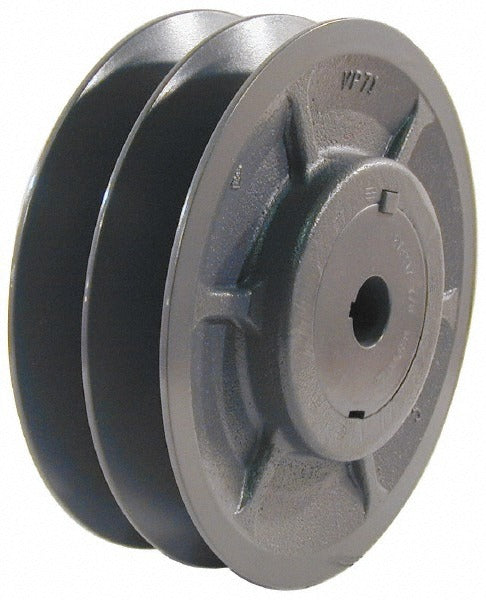

Browning 1045939 Variable Pitched Sheave 2 Groove

Product Description

The BROWNING 1045939 is a two-groove variable pitched sheave designed for use in belt-driven power transmission systems. With a 1 inch bore (inside diameter) and a 4.75 inch outside diameter, this sheave accepts 3L, 4L, A, 5L, and B section V-belts. The 3 inch sheave thickness and a face width range of 1.375 to 2 inches accommodate the variable pitch adjustment that makes this component useful for fine-tuning drive speed ratios in the field. Weighing 5.68 pounds, it is built for durable service in HVAC, industrial fan, and blower drive applications. Installation is typically performed by HVAC technicians or mechanical contractors.

This variable pitched sheave is suited for residential and light commercial applications where belt drive speed adjustment is required without swapping components. Typical installations include air handling unit blower assemblies, exhaust fans, and other rotating equipment driven by V-belts. The multi-section belt compatibility gives technicians flexibility when selecting or replacing drive belts on existing equipment. It is a standard adjustable-pitch component used when motor or blower RPM needs to be tuned to system requirements.

Key Features

• Two-groove design allows dual-belt drive configurations for increased power transmission capacity
• Variable pitch adjustment supports fine-tuning of drive speed ratios without replacing the sheave
• Compatible with 3L, 4L, A, 5L, and B section V-belts for broad belt selection flexibility
• 1 inch bore fits common motor and blower shaft sizes in HVAC and industrial fan drives
• Face width range of 1.375 to 2 inches accommodates pitch adjustment across supported belt sections
• 3 inch sheave thickness provides structural depth appropriate for dual-groove loading

Compatibility

Designed as an OEM-style replacement or upgrade variable pitched sheave for belt-driven blower and fan assemblies using 3L, 4L, A, 5L, or B section V-belts with a 1 inch shaft bore.

Installation Notes

Installation is performed by qualified HVAC technicians or mechanical contractors. Disconnect and lock out all electrical power to the drive system before removing or installing any sheave. Use a properly sized bore gauge and shaft key to ensure secure mounting on the motor or blower shaft, and verify belt tension and alignment after adjustment. Consult applicable mechanical codes and the equipment manufacturer specifications for drive ratio and belt tension requirements.
