Browning 1045921 Variable Pitched Sheave 2 Groove

Product Description

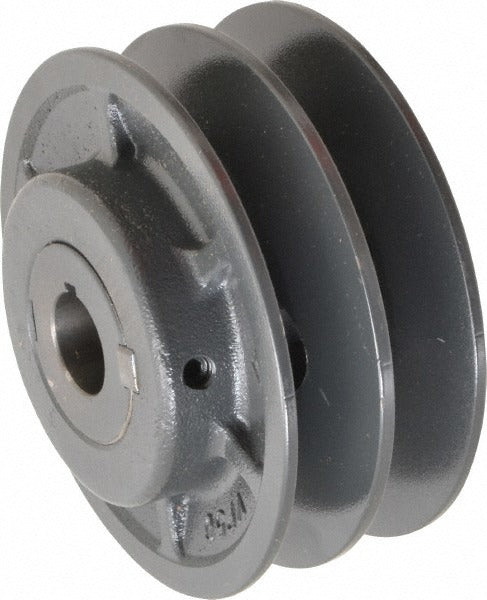

The BROWNING 1045921 is a 2-groove variable pitched sheave designed for belt-driven HVAC and mechanical systems where adjustable speed ratios are required. With a 7/8-inch bore and a 4-3/4-inch outside diameter, this sheave accepts 3L, 4L, A, 5L, and B section V-belts, covering a broad range of drive configurations. Sheave thickness measures 3 inches, and face width adjusts from 1-3/8 to 2 inches to accommodate pitch diameter changes. The variable pitch design allows technicians to fine-tune blower and fan speeds without replacing components, making it a practical choice for balancing airflow in the field. The unit weighs 6.05 pounds.

This sheave is used in belt-drive blower assemblies, supply fan drives, and general mechanical power transmission applications commonly found in residential and light commercial HVAC equipment. It suits installations where motor speed adjustment or belt tension correction is needed during commissioning or routine service. The two-groove configuration supports dual-belt drives for higher torque loads. Pitch diameter ranges vary by belt section: 3L belts run from 3.3 to 4.1 inches, 4L or A belts from 3.4 to 4.4 inches, and 5L or B belts from 3.7 to 4.7 inches.

Key Features

• 2-groove variable pitch design allows field adjustment of drive speed without component replacement
• Accepts 3L, 4L, A, 5L, and B section V-belts for broad drive compatibility
• 7/8-inch bore diameter with 4-3/4-inch outside diameter
• Face width adjustable from 1-3/8 to 2 inches
• Sheave thickness of 3 inches supports stable belt tracking under load
• Open turns range up to 5 for 4L or A belts and up to 6 for 5L or B belts

Compatibility

Designed as a variable pitched sheave replacement for belt-drive blower and fan assemblies using 3L, 4L, A, 5L, or B section V-belts with a 7/8-inch bore requirement.

Installation Notes

Installation is typically performed by an HVAC technician or millwright. Always de-energize and lock out the motor before removing or installing a sheave. Verify bore fit and key engagement before securing the sheave on the shaft, and confirm belt alignment and tension after adjustment. Consult the drive manufacturer specifications for proper open-turn settings and belt section selection.
