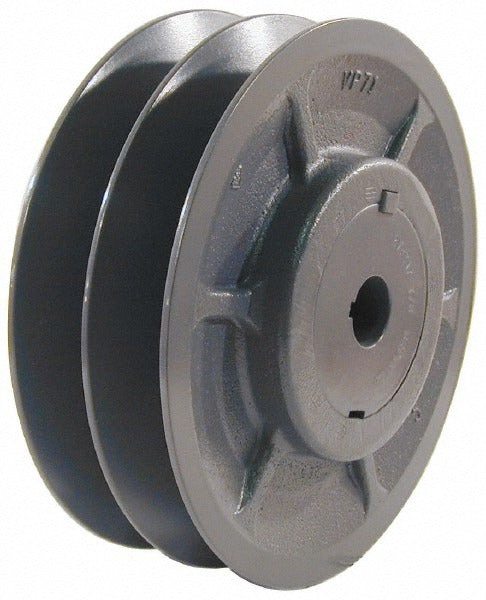

Browning 1045905 Variable Pitched Sheave 2 Groove

Product Description

The BROWNING 1045905 is a two-groove variable pitched sheave designed for V-belt drive systems commonly found in HVAC air handlers, blowers, fans, and light industrial equipment. It features a 5/8 inch bore and a 4-3/4 inch outside diameter, with a sheave thickness of 3 inches and a face width that adjusts from 1-3/8 to 2 inches. The variable pitch design allows technicians to change the effective pitch diameter within a set range, enabling belt speed and airflow adjustments without replacing the sheave. It accepts 3L, 4L, A, 5L, and B section V-belts.

This sheave is suited for residential and light commercial HVAC installations where blower motor speed must be tuned to match static pressure or airflow requirements. It is a standard component in belt-drive blower assemblies and is installed by HVAC technicians during system commissioning, air balancing, or drive component replacement. The adjustable pitch range allows field-tuning of fan RPM without requiring a different fixed sheave.

Key Features

• Variable pitch design allows pitch diameter adjustment in the field without sheave replacement
• Accepts multiple V-belt sections: 3L, 4L, A, 5L, and B
• 5/8 inch bore fits standard blower motor shafts common in residential HVAC equipment
• Two grooves accommodate dual V-belt drive configurations
• Face width adjusts from 1-3/8 to 2 inches to change pitch diameter and drive ratio
• 3 inch sheave thickness provides stable belt seating across the adjustment range

Compatibility

Designed as an OEM-style replacement or upgrade sheave for belt-drive blower and fan assemblies using 3L, 4L, A, 5L, or B section V-belts with a 5/8 inch shaft bore.

Installation Notes

Installation should be performed by a qualified HVAC technician. Disconnect and lock out all power to the air handler or blower unit before removing or installing any drive components. Use a proper sheave puller when removing the existing sheave to avoid shaft or bearing damage. After installing and adjusting the sheave, verify belt tension and alignment before restoring power and check drive operation under load.
