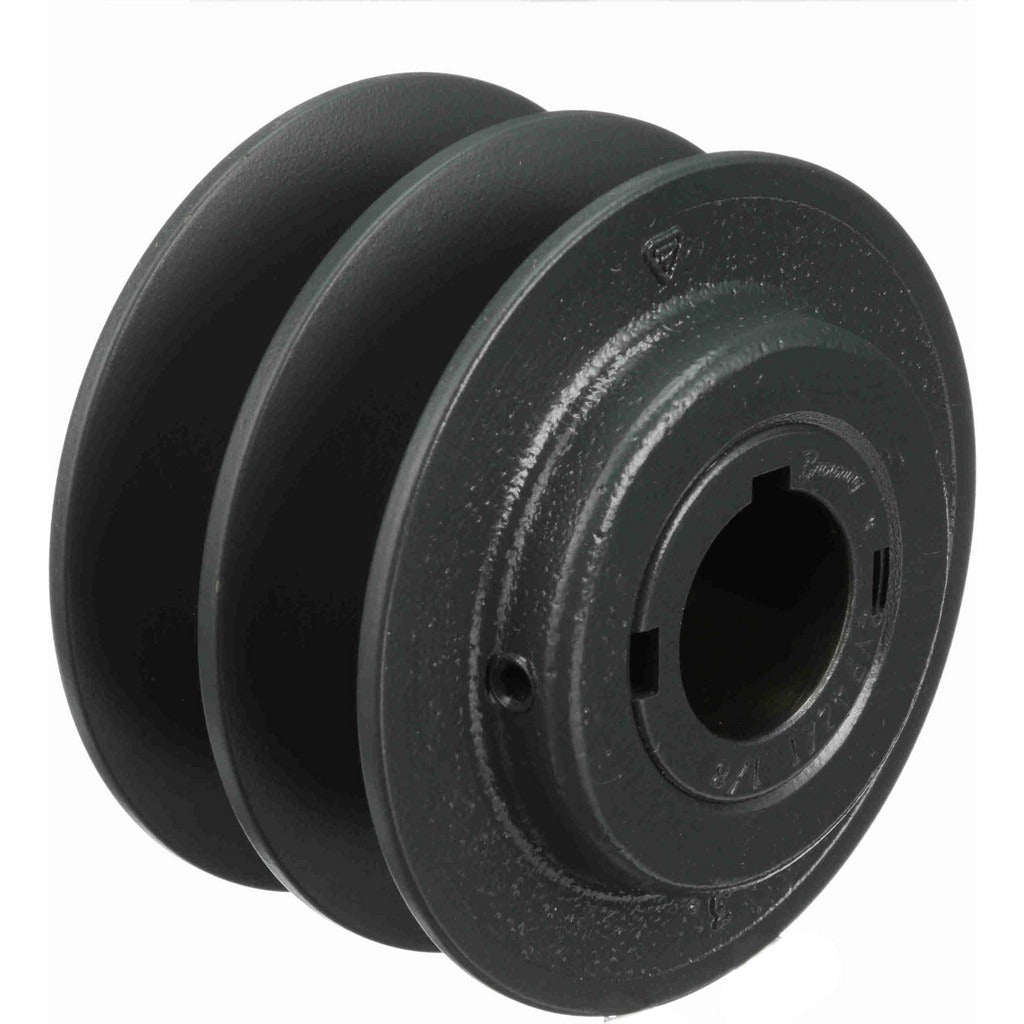

Browning 1045897 Variable Pitched Sheave 2 Groove

Product Description

The BROWNING 1045897 is a two-groove variable pitched sheave designed for adjustable V-belt drive applications in HVAC, industrial, and mechanical systems. Cast from iron, it accepts a 1.125-inch bore and measures 3.95 inches in outside diameter with a 3-inch sheave thickness. The variable pitch design allows technicians to adjust drive ratios without swapping components, making it a practical solution for fan speed tuning and belt drive optimization. Compatible belt sections include 3L, 4L, 5L, A, and B, giving it broad versatility across common fractional and standard V-belt configurations. HVAC and mechanical contractors are the primary installers.

This sheave is well suited for residential and light commercial air handling equipment, rooftop units, exhaust fans, and other belt-driven blower assemblies where motor-to-blower speed ratios require periodic adjustment. The two-groove configuration supports dual-belt drive setups, which distribute load across both grooves for improved torque transfer and reduced belt wear. Face width ranges from 1.375 to 2 inches depending on pitch setting, allowing incremental pitch diameter adjustment within the specified range for each belt section.

Key Features

• Variable pitch design enables drive ratio adjustment without sheave replacement
• Two grooves for dual V-belt configurations, improving load distribution
• Accepts 3L, 4L, 5L, A, and B belt sections for broad application coverage
• Cast iron construction for durability in continuous-duty drive applications
• 1.375 to 2 inch adjustable face width for pitch diameter fine-tuning
• 3-inch sheave thickness provides stable belt engagement across the pitch range

Compatibility

Designed as an OEM-style replacement or upgrade variable pitched sheave for belt-driven blower and fan assemblies using 3L, 4L, 5L, A, or B section V-belts with a 1.125-inch bore shaft.

Installation Notes

Installation should be performed by a qualified HVAC technician or millwright. Disconnect and lock out all power to the drive system before removing or installing sheaves. Ensure the shaft diameter matches the 1.125-inch bore and that the sheave is properly aligned with its mating component using a straightedge before tensioning belts. Adjust pitch diameter setting before final tightening, and verify belt tension per manufacturer belt drive guidelines after installation.
