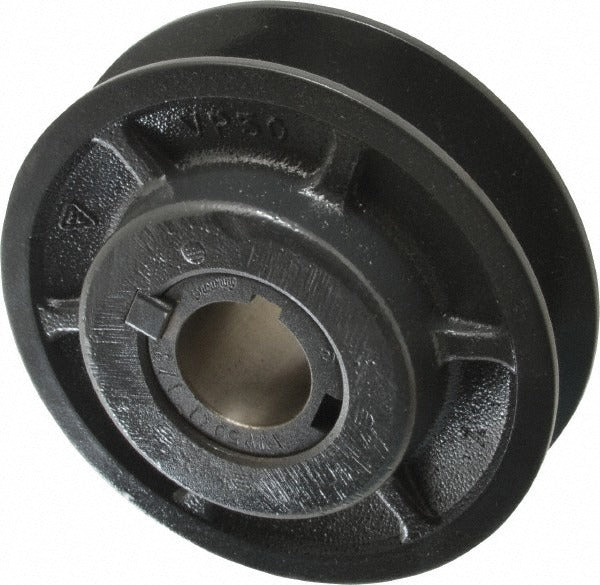

Browning 1045459 Variable Pitch Sheave 1-groove

Product Description

The BROWNING 1045459 is a single-groove variable pitch sheave designed for adjustable-speed V-belt drive systems in HVAC, industrial, and mechanical equipment applications. It features a 1.125-inch inside bore diameter and a 4.75-inch outside diameter, with a sheave thickness of 2.156 inches. The variable pitch design allows the effective pitch diameter to be adjusted by opening or closing the sheave halves, giving technicians precise control over blower or fan speed without swapping pulleys. At 3.5 pounds, it is a solid, durable component suited for commercial and light industrial belt drive installations.

This sheave is used in V-belt drive systems where fan or blower speed must be tuned during commissioning or adjusted in the field. Typical applications include air handling units, furnace blowers, exhaust fans, and other belt-driven HVAC equipment. It accepts 3L, 4L, A, 5L, and B belt sections, covering a wide range of standard V-belt sizes. The adjustable face width of 0.656 inches to 1.031 inches accommodates belt tracking across the pitch diameter range. Installers working on rooftop units, air handlers, or inline fans will find this sheave compatible with common adjustable-speed drive setups.

Key Features

• Variable pitch design allows field adjustment of drive speed without replacing the sheave
• Accepts multiple belt sections: 3L, 4L, A, 5L, and B
• 1.125-inch bore diameter fits standard shaft sizes used in HVAC blower assemblies
• Single-groove configuration for straightforward single-belt drive setups
• Adjustable face width from 0.656 inches to 1.031 inches
• Pitch diameter range supports multiple belt types: up to 4.1 inches for 3L, 4.4 inches for 4L or A, and 4.7 inches for 5L or B belts

Compatibility

Compatible with 3L, 4L, A, 5L, and B section V-belts. Designed as a variable pitch replacement sheave for single-groove belt drive systems in residential and commercial HVAC blower and fan applications.

Installation Notes

Installation is typically performed by a licensed HVAC technician or millwright. Always de-energize and lock out the equipment before removing or installing sheaves. A shaft key and setscrew are typically used to secure the sheave to the shaft — confirm bore fitment before installation. After adjustment, verify belt tension and alignment with a straightedge before returning the unit to service.
