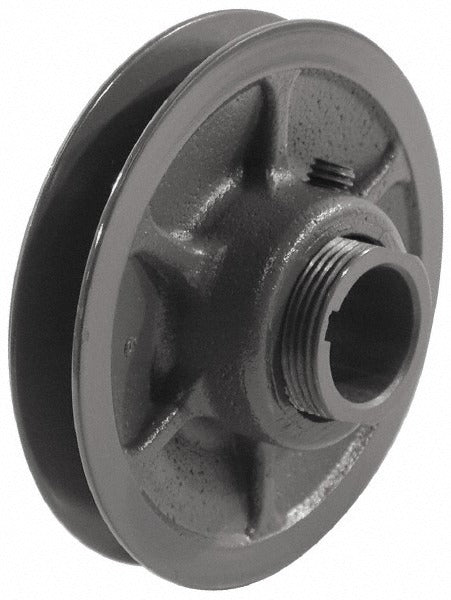

Browning 1045285 Variable Pitched Sheave 1 Groove

Product Description

The BROWNING 1045285 is a single-groove variable pitched sheave designed for use in belt-drive systems where adjustable speed ratios are required. With a 0.75-inch inside diameter bore and a 3.15-inch outside diameter, this sheave accepts 3L, 4L, A, 5L, and B section V-belts. The sheave thickness measures 1-7/8 inches, and the face width adjusts from 21/32 inch to 1 inch as the sheave opens or closes, allowing the effective pitch diameter to change and the driven speed to be varied without swapping pulleys. HVAC and mechanical contractors install this type of component on fan and blower shafts in air-handling equipment.

This variable pitch sheave is used in residential and light commercial HVAC systems, particularly on belt-drive blower assemblies, air handlers, and ventilation fans. Adjusting the sheave allows technicians to fine-tune fan speed and airflow to match design conditions or balance a system after installation. It is suited for use wherever a fixed sheave would otherwise require replacement to achieve a different drive ratio. The single-groove design fits standard single-belt drive configurations common in residential furnace blowers and commercial fan coil units.

Key Features

• Variable pitch design allows in-field speed adjustment without replacing the sheave
• Accepts 3L, 4L, A, 5L, and B section V-belts for broad belt compatibility
• 0.75-inch bore fits common blower and fan shaft sizes
• 3.15-inch outside diameter suits compact drive configurations
• Face width range of 21/32 inch to 1 inch enables pitch diameter variation across supported belt types
• Single-groove construction for standard single-belt drive systems

Compatibility

Designed as an OEM-style replacement or upgrade sheave for single-belt variable-speed drive assemblies using 3L, 4L, A, 5L, or B section V-belts with a 0.75-inch shaft bore.

Installation Notes

Installation should be performed by a qualified HVAC technician or millwright. Disconnect and lock out all electrical power to the blower or fan motor before servicing the drive assembly. Ensure the bore set screw or bushing is properly torqued per the drive shaft manufacturer specifications and that the sheave is aligned with the mating pulley using a straightedge before tensioning the belt. Refer to local mechanical codes and the equipment manufacturer service manual for belt tension and sheave alignment procedures.
