Browning 1045244 Variable Pitched Sheave 1 Groove 3L

Product Description

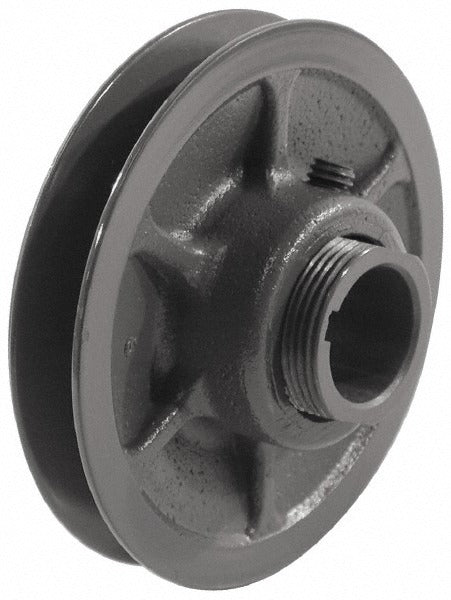

The BROWNING 1045244 is a single-groove variable pitched sheave designed for use with 3L-section V-belts in belt-drive systems. With a 0.625-inch inside (bore) diameter and a 2.87-inch outside diameter, this sheave provides adjustable speed ratios without requiring a belt change. The variable pitch design lets technicians fine-tune driven equipment speed by shifting the belt's running position within the groove. It is installed by HVAC mechanics, millwrights, and mechanical contractors on fan and blower assemblies where precise airflow or speed adjustment is required.

This sheave is suited for light-duty to medium-duty belt-drive applications using 3L-section V-belts. Typical installations include residential and light commercial HVAC blower sections, exhaust fans, and small motor-driven equipment where variable speed adjustment is performed during commissioning or seasonal balancing. The sheave thickness of 1-11/16 inches and a face width range of 17/32 to 25/32 inches accommodate standard 3L belt widths across common motor and blower shaft configurations.

Key Features

• Variable pitch groove allows speed adjustment without replacing the belt
• Single-groove design for straightforward single-belt drive configurations
• Compatible with 3L-section V-belts with a minimum pitch diameter of 1.8 inches and maximum pitch diameter of 2.7 inches
• 0.625-inch bore fits common motor and blower shaft sizes
• Sheave thickness of 1-11/16 inches and face width of 17/32 to 25/32 inches for proper belt alignment

Compatibility

Designed for use with 3L-section V-belts. Fits shafts with a 0.625-inch diameter. Suitable as an OEM-style replacement or upgrade sheave on single-belt blower and fan drive assemblies using 3L belt sections.

Installation Notes

Installation should be performed by a qualified HVAC technician or millwright. De-energize and lock out the motor before removing or installing any sheave. Ensure the bore fits the shaft snugly and that the sheave is aligned with the mating sheave using a straightedge before tensioning the belt. Adjust the variable pitch setting before final tightening to achieve the desired output speed.
