Brother PTE560BTVP Handheld Industrial Label Printer with Dual Auto-Cutter (Up to 24mm Labels)

Product Description

The BROTHER PTE560BTVP P-touch EDGE 560BT is designed to support contractors in large project applications, streamlining labeling for technicians. It formats laminated labels and heat shrink tubes up to 24mm using the included ruler and quick application keys. Store databases and templates, serialize, and create QR codes and linear barcodes directly on the printer.

• Label large industrial projects with laminated labels & heat shrink tubes from 3.5mm to 24mm.
• Create labels faster with quick application keys for cable wrap, cable flag, patch panel, punch block and faceplate labels plus add QR codes & linear barcodes.
• Print a strip of half-cut labels with the dual auto-cutter to make peel-and-apply easy.

Product Highlights

This handheld label printer features Bluetooth, USB-C connectivity, a dual auto-cutter, and compatibility with the Pro Label Tool app and P-touch Editor software.

Product Information

Standard Information

• Brand: BROTHER
• Manufacturer Part Number: PTE560BTVP
• Country of Origin: China

Technical Specifications

• Memory: Standalone: Up to 99 label designs (1,800 characters / file) Download: Up to 99 templates, databases & images (6MB)

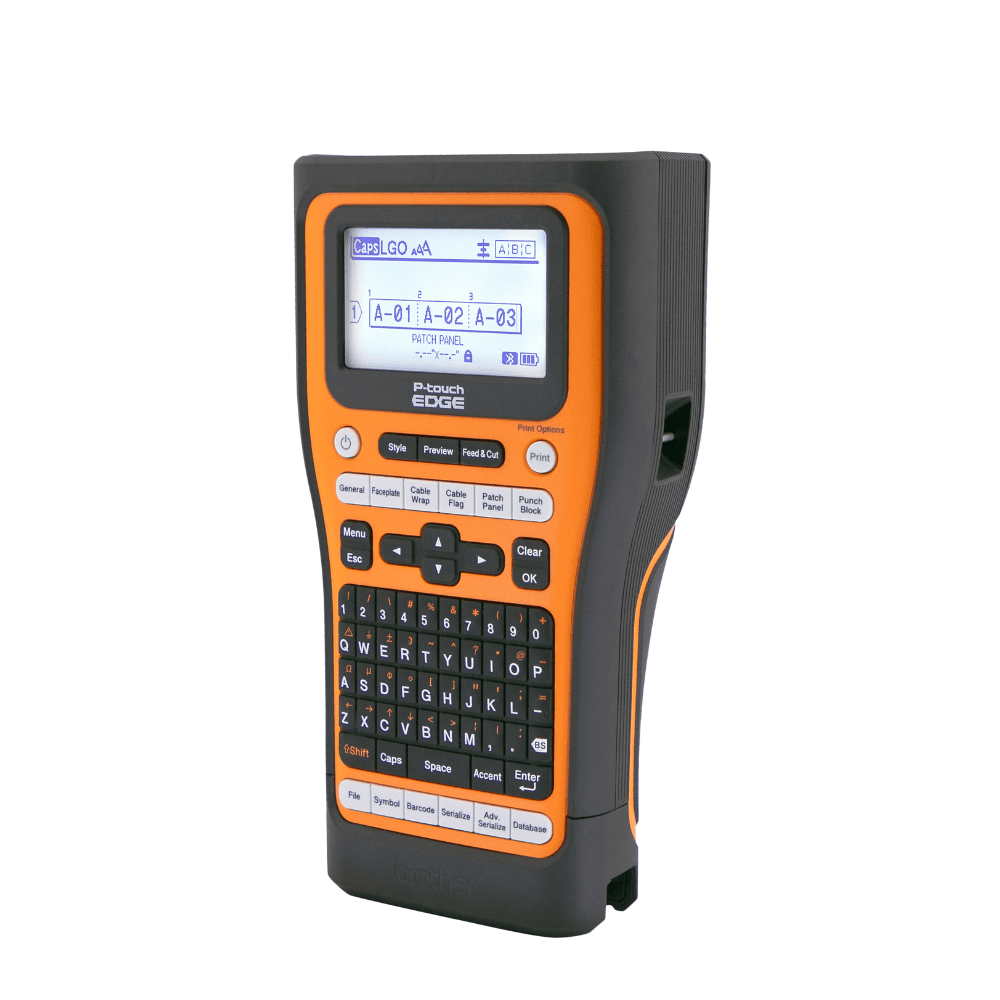

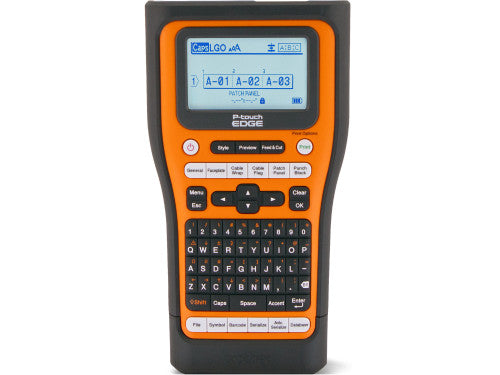

• Control panel: 70 rubber keys (QWERTY) 17 characters x 2 rows LCD and backlight
• Operating temperature / humidity: 50° F to 95° F (10° C to 35° C), 20% to 80% non-condensing
• Storage temperature / humidity: -4° F to 140° F (-20° C to 60° C), 20% to 80% non-condensing
• Power: Optional USB-C PD AC adapter (5VDC, 3A / 9VDC, 3A / 12VDC, 2.5A / 15VDC, 2A, 20VDC, 1.5A)
• Battery: Rechargeable Li-ion battery
• Battery yield: 5 tapes on one charge
• Battery charging options: USB-C PD AC adapter or any USB-C power source
• Battery charging time: 3 hours
• Energy conservation certifications: ENERGY STAR
• Print technology: Laminating thermal transfer
• Resolution: 180dpi
• Max print speed: Up to 1.2ips via AC adapter, up to 0.78ips via battery
• Max print width: 0.71in (18mm)
• Max print length: 39.37in (1m)
• Communications interfaces: USB-C 3.0 (Windows) / 2.0 (Mac), Bluetooth Classic (SPP) MFi (iAP)
• OS compatibility: Windows, MacOS For the most up-to-date compatibility, visit our Support Page
• Print driver compatibility: Windows, Mac For the most up-to-date compatibility, visit our Support Page
• SDK support: Android, iOS
• Support software: Windows Printer Driver, P-touch Editor v6.x for Windows, P-touch Editor v5.x for Mac, Transfer Manager v2.x for Windows, Transfer Express for Mac, Update Software for Windows, Firmware Update Tool for Windows & Mac
• Apps: Pro Label Tool for Android & iOS, Mobile Transfer Express for Android & iOS, Mobile SDK for Android & iOS
• Printer languages: Raster, P-touch Template (download), Mobile SDK
• Linear barcodes: Code39, Code128, I-2/5 (ITF), UPC-A/E, EAN-8/13, GS1-128 (UCC/EAN-128), Codabar (NW-7)
• 2D barcodes: QR Code, Data Matrix
• Fonts: Helsinki, Brussels, US, Los Angeles, San Diego, Florida, Calgary, Belgium, Atlanta, Adams, Brunei, Sofia, Germany, Letter Gothic
• Function keys: General, faceplate, cable wrap, cable flag, patch panel / terminal strip, punch block, barcode, serialize, advanced serialization, database, heat shrink tube (auto activation), self-laminate tape (auto activation)
• Keyboard: QWERTY, mini size rubber (70 keys)
• Print capabilities: Up to 25 alpha-numeric characters, up to 99 alpha-numeric character increments (individual or simultaneous), auto formats (faceplate, cable wrap, cable flag, patch panel / terminal strip, punch block, heat shrink tube, self-laminating), 476 symbols, text insert, multi-block up to 99, 20 languages, up to 99 downloadable templates / databases / graphic images (6MB)
• Print layout: Real Print preview, up to 7 lines per label, 10 type styles, 9 type sizes, 5 type widths, invert & vertical printing, repeat printing up to 99 copies
• Cutter: Automatic dual blade cutter (full and easy to peel multi-label strip cutter)
• Media sensors: Smart Identification
• Media type: HGe, TZe, HSe, STe

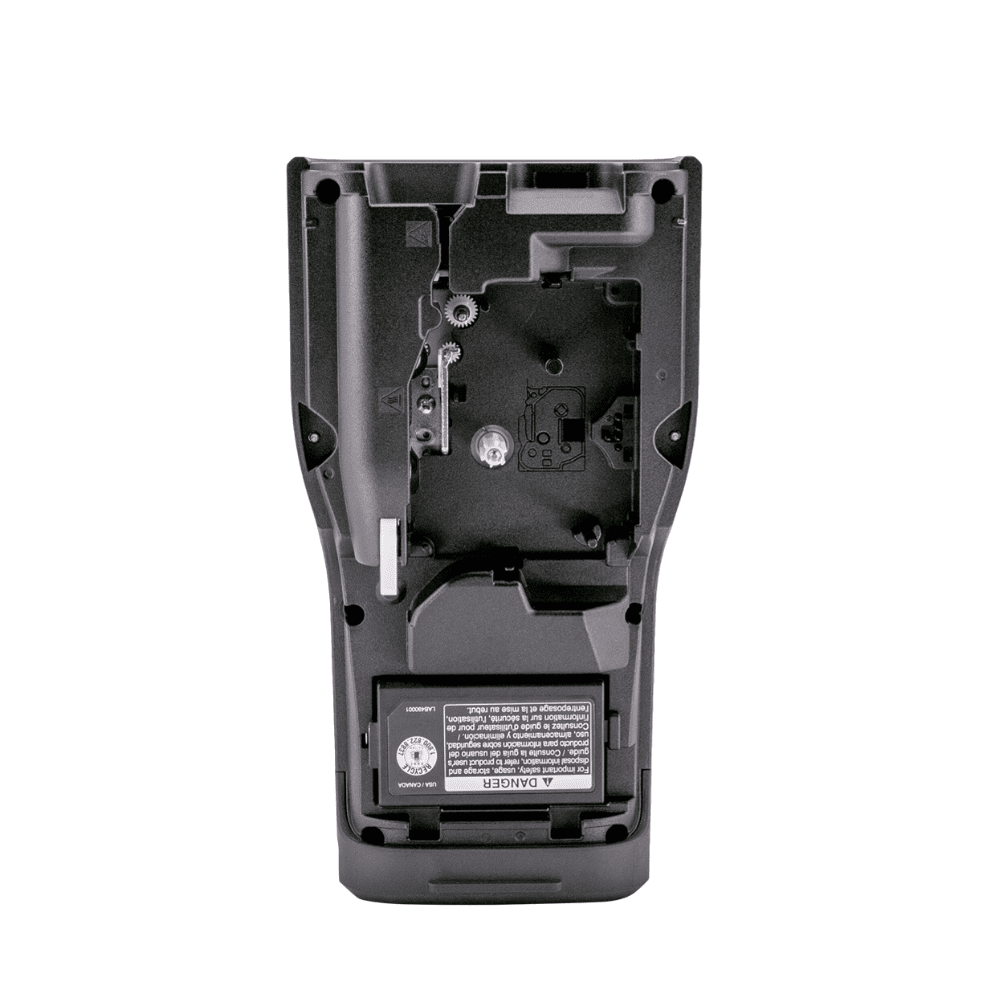

• Media loading: Cartridge
• Media sizes: 24mm, 18mm, 12mm, 9mm, 6mm, 3.5mm
• Media width: 24mm (0.94in) max
• Max print height: 0.71in (18mm)
• Tape Sizes: 9/64", 1/4", 3/8", 1/2", 3/4", 1" (3.5mm, 6mm, 9mm, 12mm, 18mm, 24mm)
• P-touch Tape Types: Standard Adhesive, Extra-Strength Adhesive, Flexible ID Tape, Heat Shrink Tube, Tamper-Evident, Iron-On Fabric, Acid-Free
• Operation Mode: Standalone, Wireless or Wired Download Standalone, Print From Computer, Tablet or Mobile Device
• Rechargeable Batteries: Includes Long Life Li-ion Rechargeable Battery Pack
• Maximum Print Resolution: 180dpi
• Tape Length: 26.2' (8m)
• Tape Material: Laminated
• Carrying Case: Included
• Print Speed: Up to 1.2ips (30mm/sec)
• Rotate Printing: Input & Rotate Line by Line, Rotate & Repeat
• Vertical Printing: Yes
• Number of Fonts: 14 (Helsinki, Brussels, US, Los Angeles, San Diego, Florida, Calgary, Belgium, Atlanta, Adams, Brunei, Sofia, Germany, Letter Gothic)
• Internal Fonts: 14 (Helsinki, Brussels, US, Los Angeles, San Diego, Florida, Calgary, Belgium, Atlanta, Adams, Brunei, Sofia, Germany, Letter Gothic)
• Internal Font Sizes: 9 (6pt, 9pt, 12pt, 18pt, 24pt, 36pt, 42pt, 48pt, Auto)
• Barcoding: ntuitively serialize and create QR codes and linear barcodes
• Interface: USB 3.0; Bluetooth; USB 2.0
• System Requirments: Computer: Windows 11/10 (32/64 bit), Mac macOS 12.x or Later, Mobile: Android 10 or Later, iOS 16 or Later,

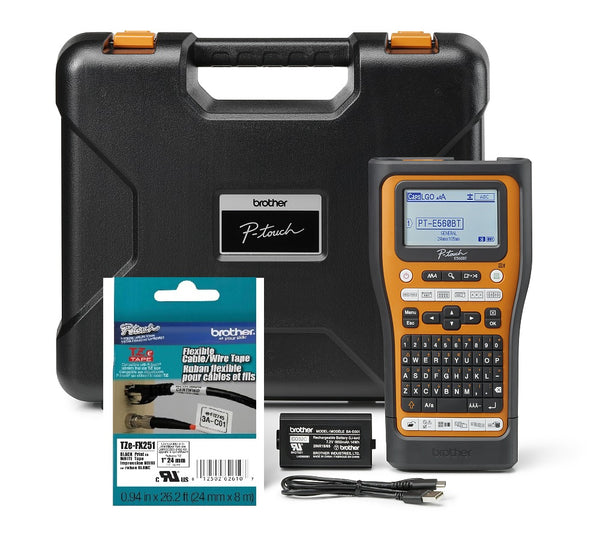

• Included Items: PT-E560BTVP Electronic Label Maker, Hard carrying case, Patch panel ruler, Hand strap, Long-lasting rechargeable Li-ion battery, USB-C cable
• UPC Code: 012502674146
• UNSPSC: 43212108
• Operating Environment: 50°F - 95°F (10°C - 35°C)
• Storage Environment: -4°F - 140°F (-20°C - 60°C)
• Battery Charge Time: 6 Hours (3 Hours for models compatible with PA-AD-004 Adapter)
• Battery Life: 300 Cycles
• Power Source Options: AutoRanging Power Supply, Replaceable Rechargeable Battery
• Bitmap Fonts: Helsinki, Brussels, US, Los Angeles, San Diego, Florida, Calgary, Belgium, Atlanta, Adams, Brunei, Sofia, Germany, Letter Gothic)
• Stored Templates: Up to 99 templates
• Brand: Brother
• MPN: PTE560BTVP
• Maximum Media Size: 24mm
• Included Components: Carry Case, Hand Strap, Patch Panel Ruler, TZeFX251 black on white Flexible ID tape 0.94in x 26.2ft (24mm x 8m), USB-C Cable (1m)
• Print media: Labels
• Compatible Devices: Laptops, PC, Smartphones, Tablets
• Wattage: 14 watts

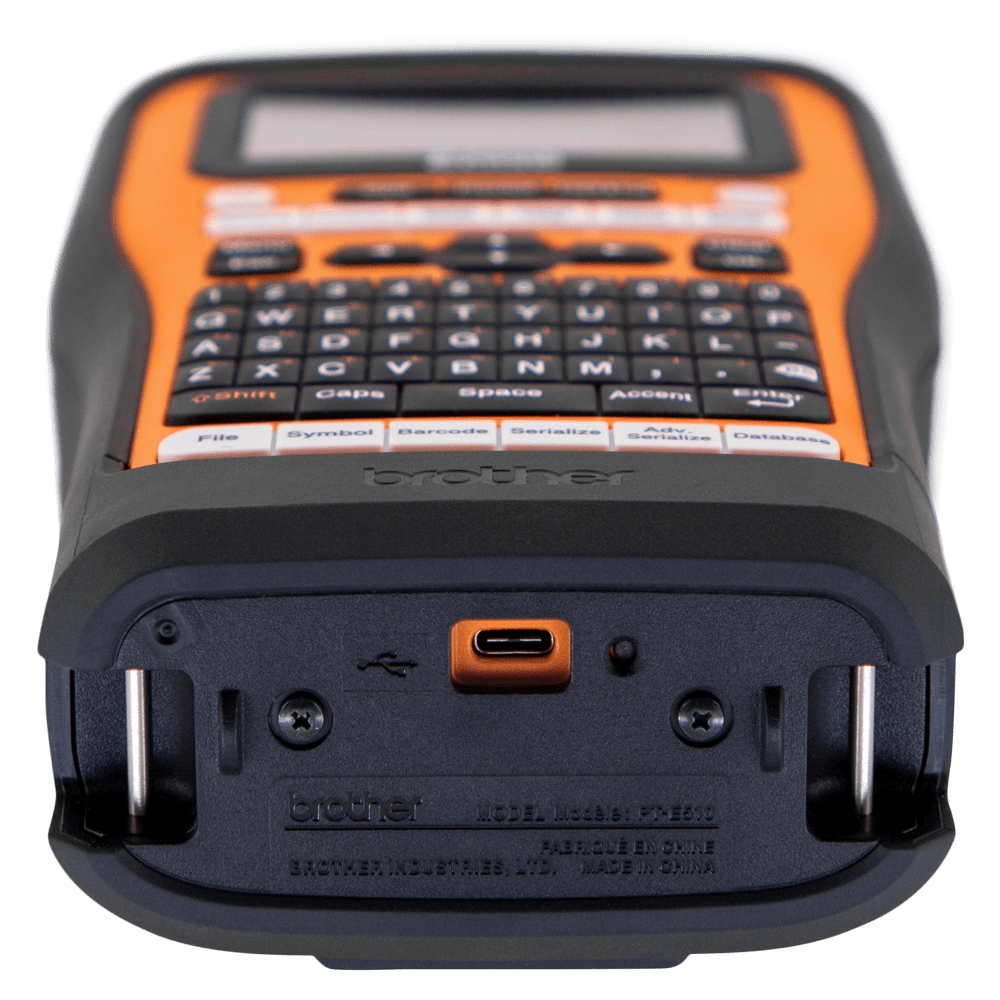

• Hardware Interface: USB Type C
• Control Method: App
• Sheet Size: 24mm, 18mm, 12mm, 9mm, 6mm, 3.5mm
• Compatible Cartridge: P-touch TZe, HGe, Hse, Sle, STe
• Ink Color: black
• Model Series: P-touch EDGE
• Specific Uses For Product: Electrical Labeling, Low Voltage Labeling, MRO Labeling
• Item model number: PTE560BTVP
• Batteries: 1 Lithium Ion batteries required. (included)
