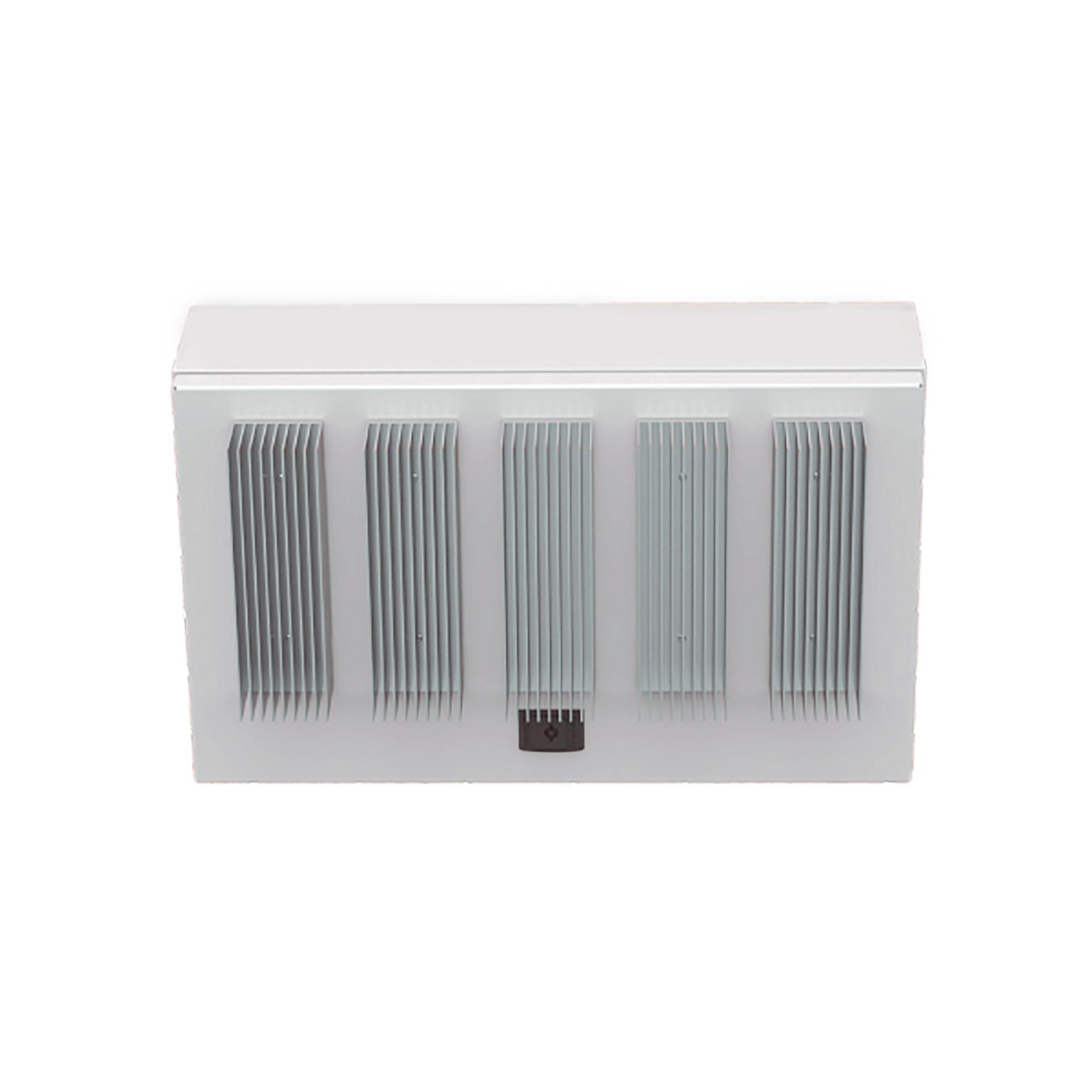

Bromic Heating BH8380055 Smart-Heat Control Eclipse Pendant 5CH

Product Description

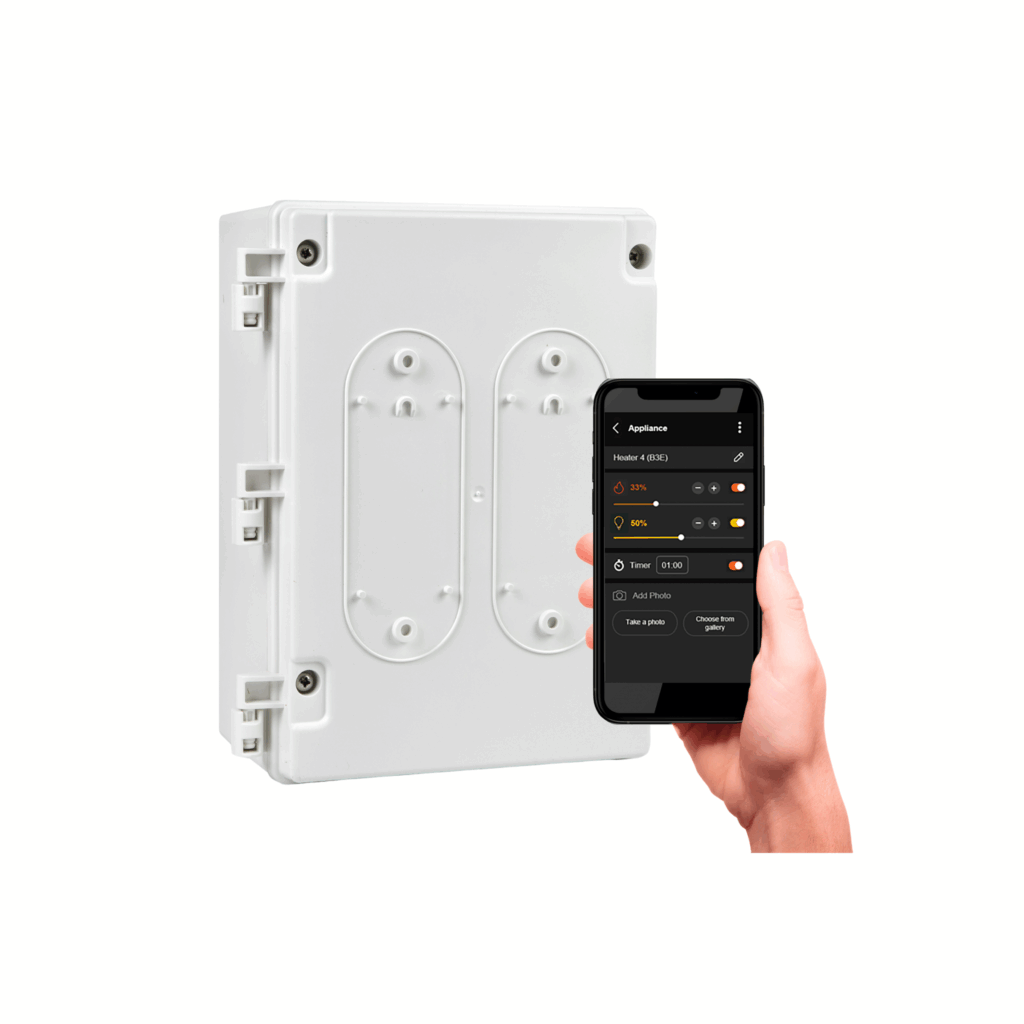

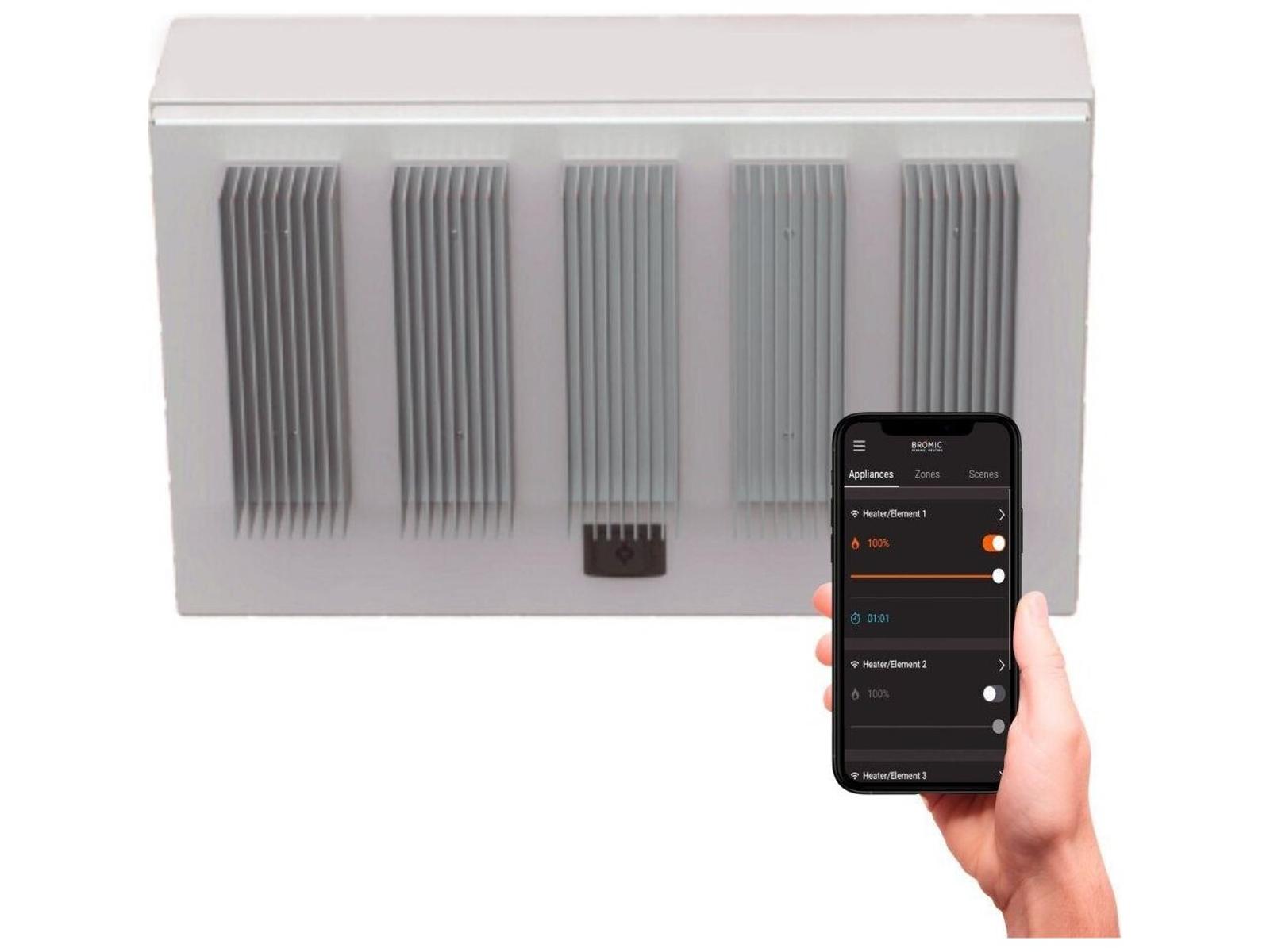

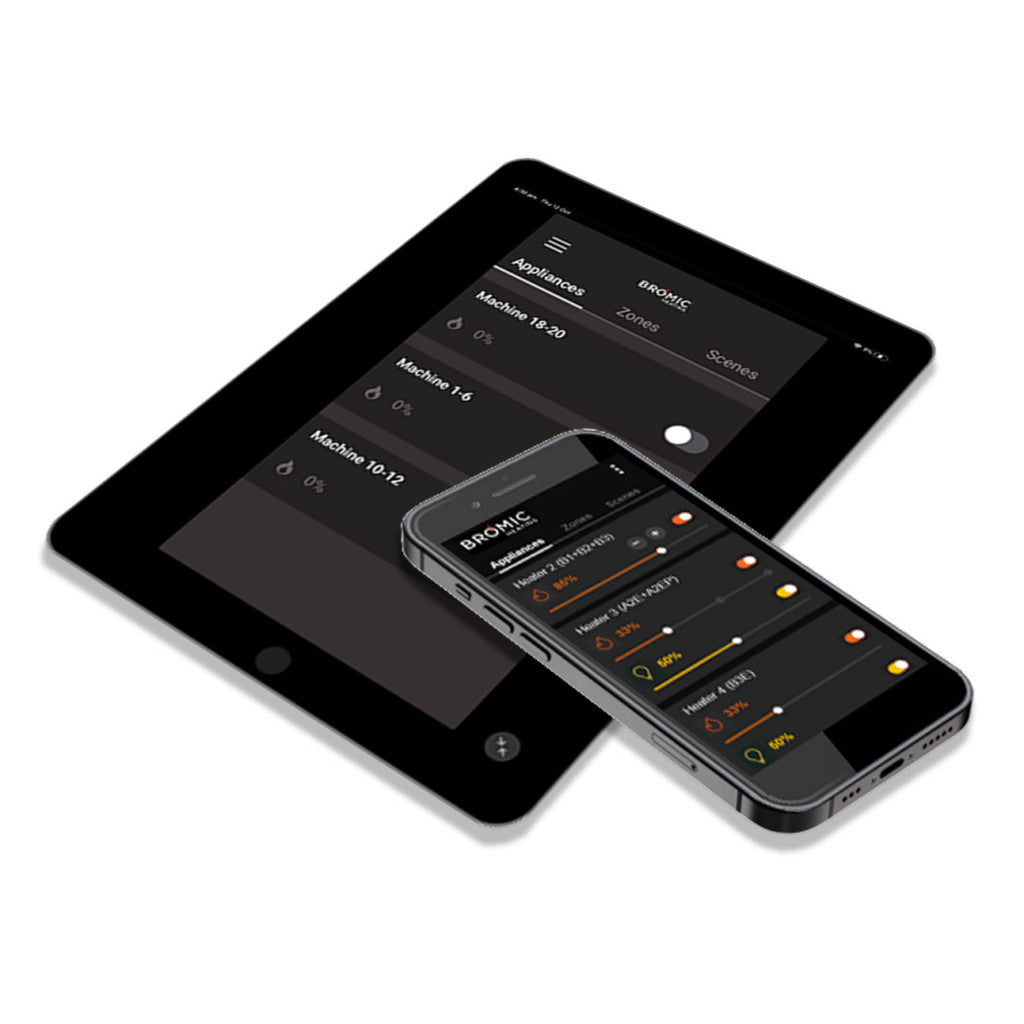

The Bromic Heating BH8380055 Affinity Smart-Heat Eclipse controller is designed for the Eclipse Collection, offering 5 channel input options for the fixed Eclipse Pendant. Using the Bromic Heating app, have complete incremental control over heat and LED light rail output. It allows you to curate a sophisticated outdoor atmosphere.

• Complete Incremental control over heat and light
• WiFi & Bluetooth Enabled
• Flexible heat and light controls down to 1% increments

Product Highlights

The Affinity Eclipse Series allows for incremental adjustment of both heat and light output for precise control. It has more settings than ever to enjoy the comforts of your Eclipse outdoor heater.

Product Information

Standard Information

• Brand: Bromic Heating
• Manufacturer Part Number: BH8380055

Technical Specifications

• Model Number: BH8380055
• Width: 19.7"
• Height: 13.4"
• Depth: 10"
• MODEL: AFFINITY ECLIPSE
• PART NUMBER: BH8380055
• NO. OF CHANNELS: 5 CH
• VOLTAGE-MAX CAPACITY PER CHANNEL: 3N-220/380V – 6kW 3N-230/400V – 6kW 3N-240/415V – 6kW 3N-277/480V – 6kW 3- 120/208V – 6kW
• OPERATING TEMPERATURE RANGE: -4°F to +86°F
• NON-OPERATING TEMPERATURE RANGE: -22°F to +158°F
• PROTECTION RATING: IP54
• WIFI CONNECTIVITY: 2.4GHZ
• APPROVAL CERTIFICATION: UL 60730-1, CAN/CSA E60730-1
• HEATER COMPATIBILITY: Eclipse Electric
• Voltage: 220-240V
• Wattage: 6,000 Watts
• Features: Bluetooth, WiFi Enabled
• Product Line: Bromic Heating Affinity
• Type: Add-On Accessories
• Controls: Remote Controls
• Brand: Bromic
• Model Name/Series: Smart-Heat Control Eclipse Pendant
• Finish/Color: Gray
• Number Of Channels: 5 CH
• Front Cover Fastener: Double bit key for locking
• Supply Phase: 3 Phase 3 Wire or 3 Phase 4Wire
• Current Terminal Type: M6 Ring terminal
• Supply: a.c. 50-60Hz
• Rated Impulse Voltage: 2500V
• Operating Humidity Range: 0-85%
• Ground Connection Type: Internal busbar with M6 ring terminal, spring washer and nut
• Manufacturer: Bromic Heating
• Output: 5 Channel
• Control: Via the Bromic Heating app, On/Off Control
• LED Control: Incremental
• Operating Capacity: 6kw (30a max)
• Fits: Bromic Eclipse Pendant Heaters
