Bromic Heating BH3130052 Affinity Smart-Heat On/Off Controller 12kW 2-Channel

Product Description

The Bromic Heating BH3130052 Affinity Smart-Heat On/Off Controller provides wireless control of outdoor heating systems. Compatible with Bromic Platinum and Tungsten gas and electric heaters, this 2-channel controller supports up to 6000W per channel. Control via Wi-Fi or Bluetooth using the Bromic Heating App. The IP54-rated enclosure ensures durability in outdoor conditions.

• Compatible with Bromic Platinum and Tungsten gas and electric heaters.
• Features Wi-Fi (2.4GHz) and Bluetooth connectivity for remote control.
• IP54-rated for weather resistance.

Product Highlights

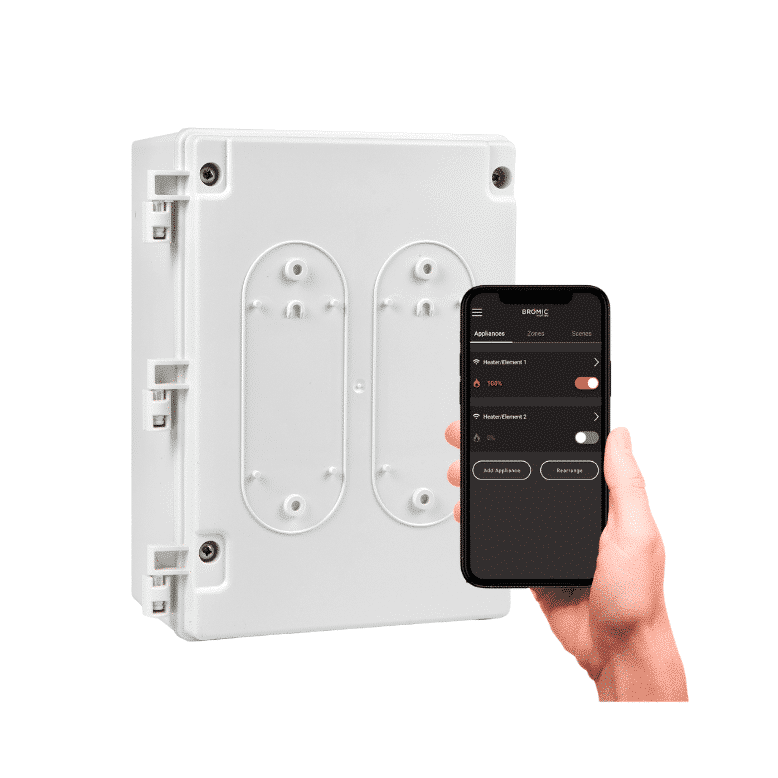

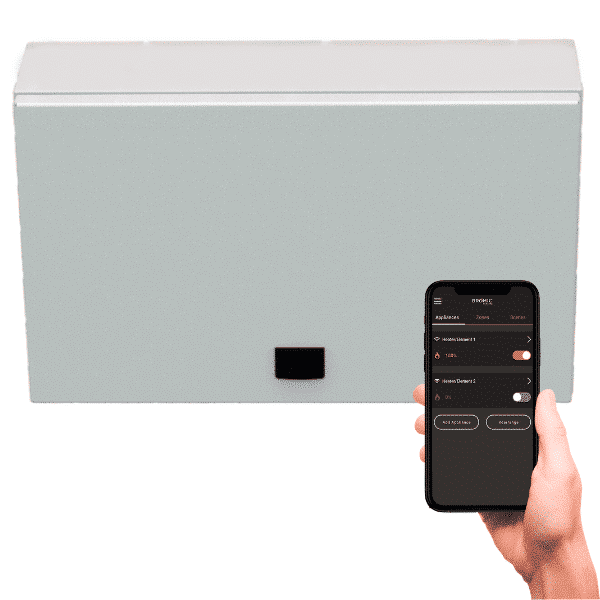

Provides convenient wireless control of outdoor heating systems via the Bromic Heating App.

Product Information

Standard Information

• Brand: Bromic Heating
• Manufacturer Part Number: BH3130052

Technical Specifications

• MODEL: AFFINITY ON/OFF
• PART NUMBER: BH3130052
• NUMBER OF CHANNELS: 2
• VOLTAGE-MAX CAPACITY PER CHANNEL: 100-127V – 1kW 208-277V – 6kW
• OPERATING TEMPERATURE RANGE: -4°F to +86°F
• NON-OPERATING TEMPERATURE RANGE: -22°F to +158°F
• PROTECTION RATING: IP54
• WIFI CONNECTIVITY: 2.4GHZ
• APPROVAL CERTIFICATION: UL 60730-1, CAN/CSA E60730-1
• HEATER COMPATIBILITY: Platinum Electric & Tungsten Electric
• Manufacturer: Bromic Heating
• Item model number: BH3130052
• Batteries required: No
• Included Components: Please see instruction manual
• Voltage: 110 - 277 Volts
• Wattage: 6,000 Watts
• Features: Bluetooth
• WiFi Enabled: WiFi Enabled
• Product Line: Bromic Heating Affinity
• Type: Add-On Accessories
• Controls: Remote Controls
