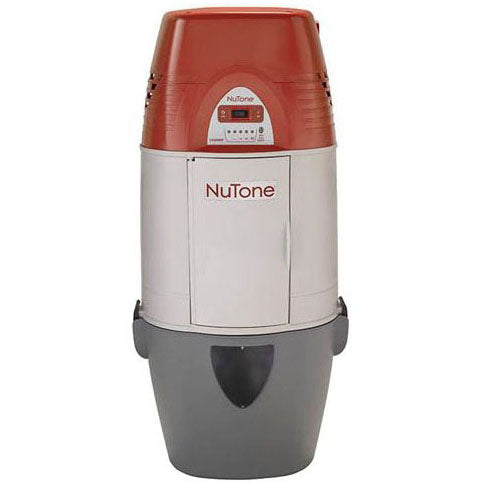

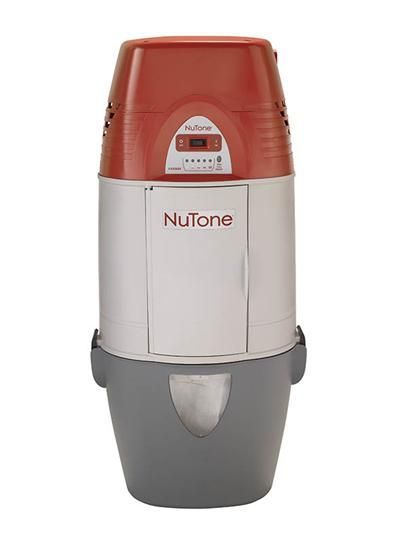

Broan-Nutone VX550C Power Unit 120 Volt

Product Description

The BROAN-NUTONE VX550C power unit features a 2-stage universal bypass motor. Designed for homes up to 8000 sq-ft, this central vacuum system power unit has a revolutionary internal sound suppression system for quiet performance. It has a status light that indicates when the canister is full and needs emptying.

• Features a sleek design allowing it to mount closely against the wall to maximize space.
• Internal sound suppression system provides quiet performance.
• Designed for homes up to 8,000 square feet with a dual 2-stage motor delivering 550 air watts of power.

Product Highlights

The BROAN-NUTONE VX550C power unit provides superior soil removal, filtration, efficiency and carpet wear. It has a large seven gallon debris pail and progressive indicator lights.

Product Information

Standard Information

• Brand: BROAN-NUTONE
• Manufacturer Part Number: VX550C

Technical Specifications

• Type: Central Vacuum System Power Unit
• Brand: Broan-NuTone
• Depth: 11-1/2 Inch
• Width: 17.5 in
• Height: 39 Inch
• Voltage: 120 Volt
• Amperage: 15 Amp
• Standard: UL Listed
• Horsepower: 2.4 hp
• Applications: For Homes Up To 8000 SQ-FT
• Motor: 2 Stage Universal Bypass
• Airflow at 2" opening: 135 CFM
• Water Lift: 130"
• Air Watts: 550
• Switch on Power Unit: Yes
• Utility Valve with Power Unit: Yes
• Recommended Circuit: 20 Amp
• Secondary Filtration: Screen
• Housing: Corrosion Resistant, Flame Retardant, Thermoplastic
• Square Footage: 8000
• System Type: Bagless
• Product Warranty: 4 Year Limited
• Capacity (Gallons): 7.00
• Product Width (Inches): 17.50
• Product Height (Inches): 39.00
• Product Length (Inches): 11.50
• Bag Full Indicator?: Yes
• Power Cord Length(Feet): 6.00
• Filter Type: Inverted
• Filtration: Regular
• Amps: 15.00
• Utility Valve?: Yes
• For Use with/Fits: Central Vacuum System
