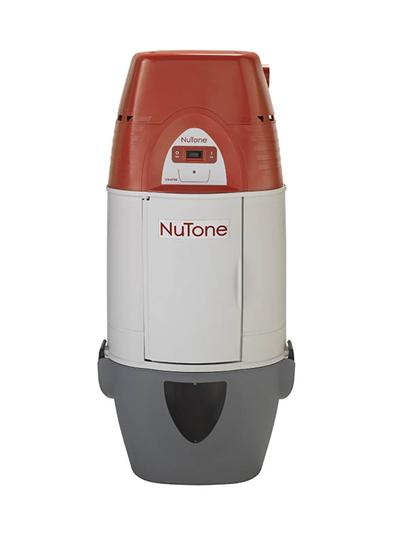

Broan-Nutone VX475C Power Unit 2.2 hp

Product Description

The BROAN-NUTONE VX475C power unit features a 2-stage universal bypass motor and is designed for homes up to 4,000 square feet. This central vacuum system power unit delivers 475 air watts of power. It has an internal sound suppression system that reduces noise and oversized debris pail handles for easy pail removal. Dual vacuum air intakes are located on both sides of the unit.

• Large four gallon debris pail typically needs emptying only every six months.
• Designed for homes up to 4,000 square feet with a 2-stage motor delivering 475 air watts of power.
• Internal sound suppression system significantly reduces noise.

Product Highlights

This cyclonic version power unit has a sleek design for close-to-wall mounting and exhausts microscopic dust particles to the exterior of your home.

Product Information

Standard Information

• Brand: BROAN-NUTONE
• Manufacturer Part Number: VX475C
• Country of Origin: USA

Technical Specifications

• Type: Central Vacuum System Power Unit
• Brand: Broan-NuTone
• Depth: 11-1/2 Inch
• Width: 16.5 in
• Height: 36 Inch
• Length: 16-1/2 Inch
• Voltage: 120 Volt
• Amperage: 15 Amp
• Capacity: 4 Gallon
• Standard: UL Listed
• Horsepower: 2.2 hp
• Applications: For Homes Up To 4000 SQ-FT
• Motor: 2 Stage Universal Bypass
• Airflow at 2" opening: 114 CFM
• Water Lift: 90"
• Air Watts: 475
• Recommended Circuit: 20 Amp
• Primary Filtration: Self Cleaning, Permanent Cloth Filter
• Secondary Filtration: Screen
• Housing: Corrosion Resistant, Flame Retardant, Thermoplastic
• System Type: Bagless
• Product Warranty: 2 Year Limited
• Capacity Size: 4-Gallon
• Capacity (Gallons): 4.00
• Product Width (Inches): 16.50
• Product Height (Inches): 36.00
• Product Length (Inches): 11.50
• Power Cord Length(Feet): 6.00
• Amps: 15.00
• Square Footage: 4000
• Motor Stages: 2
• Voltage Rating: 120
