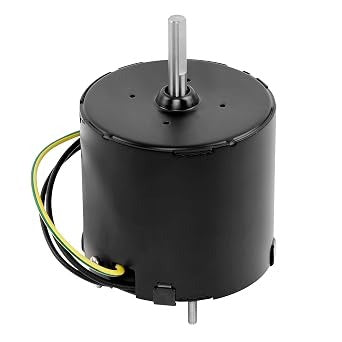

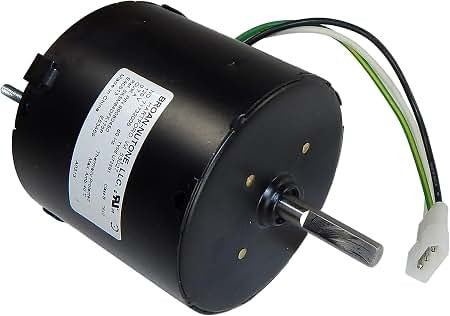

Broan-Nutone S99080450 Nut-Bro Motor 1/100 hp (Replacement 99080450)

Product Description

The Broan-NuTone S99080450 is a replacement fan motor for Broan-NuTone ventilation and bathroom exhaust units. It is rated 120 VAC at 1/100 hp and typically draws 0.65 A, with a 5/16 in shaft (1-1/4 in length) and a compact overall size. The motor offers an 1800 RPM speed rating, a 40 deg C temperature rating, and mounts to housings using four rear studs.

• Electrical: 120 VAC input, 1/100 hp, 0.65 A; temperature rating 40 deg C
• Mechanical: 5/16 in shaft diameter x 1-1/4 in length; overall length 3-3/8 in and width 3.3 in; 1800 RPM
• Installation: Four rear mounting studs (spaced 2-1/8 in), 3-pin Molex connector, counterclockwise shaft rotation

Product Highlights

Replacement fan motor for Broan-NuTone exhaust and ventilation units; 120 VAC, 1/100 hp, 5/16 in shaft; mounts with four rear studs.

Product Information

Standard Information

• Brand: BROAN-NUTONE
• Manufacturer Part Number: S99080450
• Country of Origin: United States
