Product Description

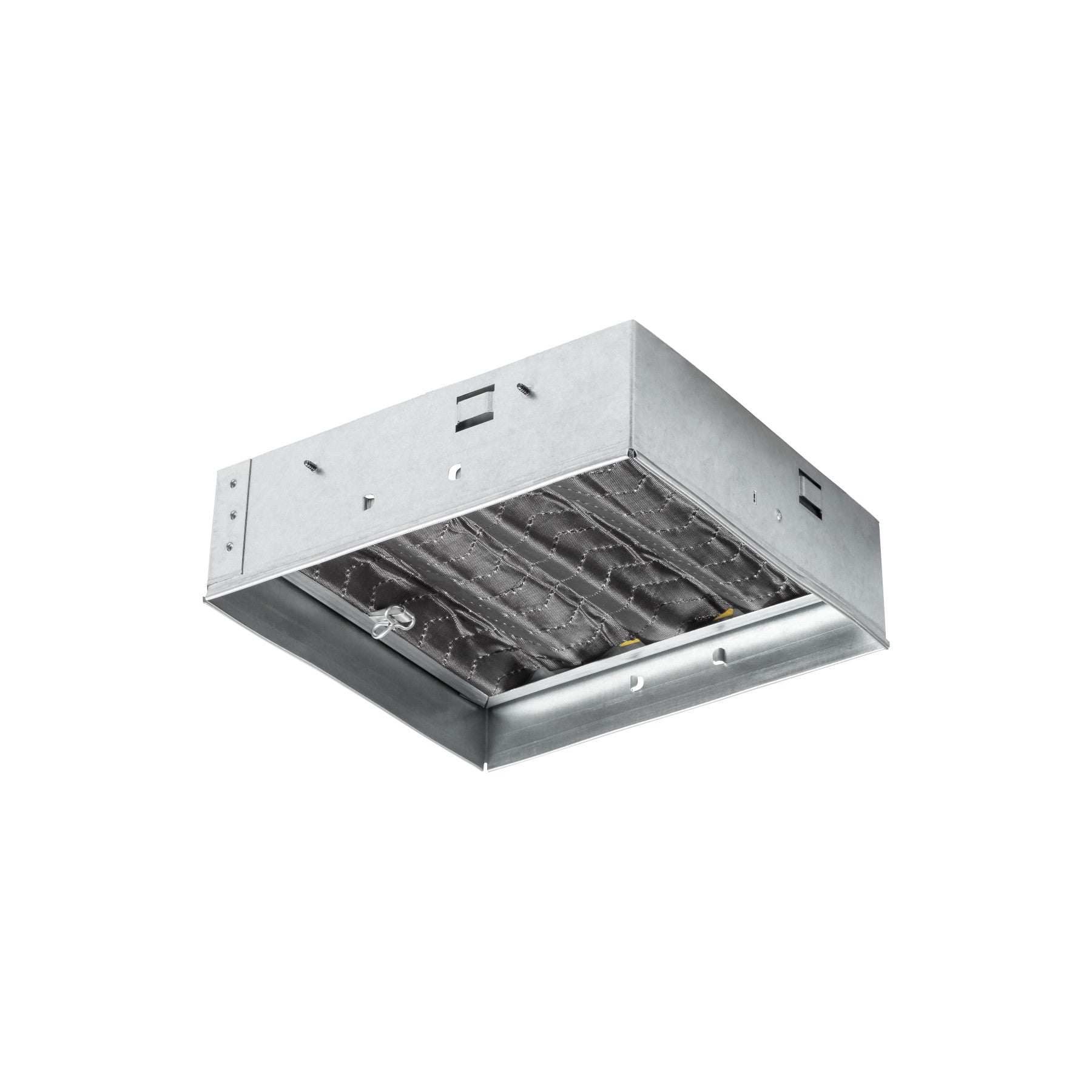

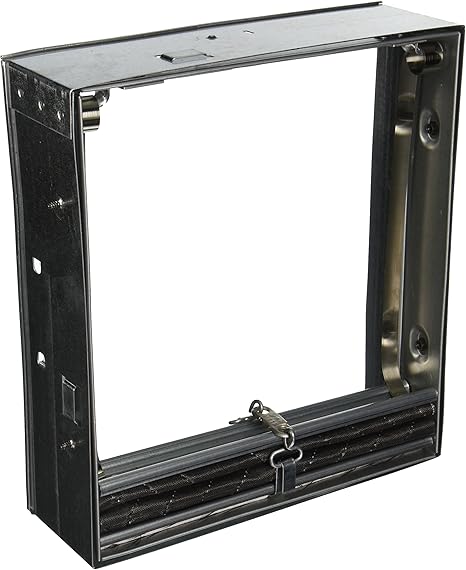

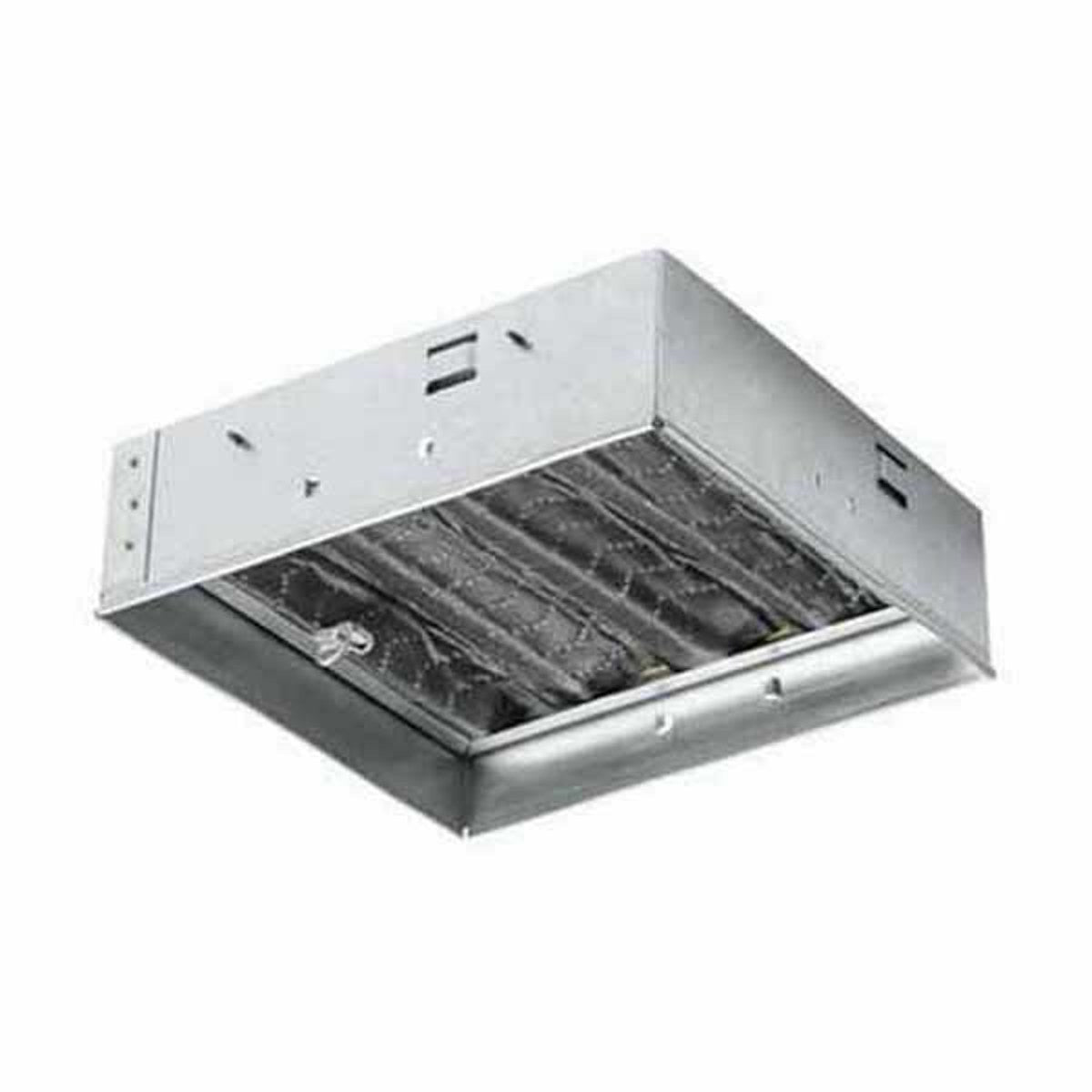

The Broan-NuTone RDFU Radiation Damper prevents the rapid spread of fire. It is required by many codes for exhaust fans installed in multi-family homes with fire-rated ceilings. When the air temperature exceeds 165.F, the fusible link melts, triggering the thermal fabric to automatically close across the damper, preventing the spread of fire.

• For use in 1, 2 and 3 hour rated floor-ceiling and roof-ceiling constructions
• Galvanized steel frame
• High temperature, non-asbestos, reinforced fiber thermal fabric

Product Highlights

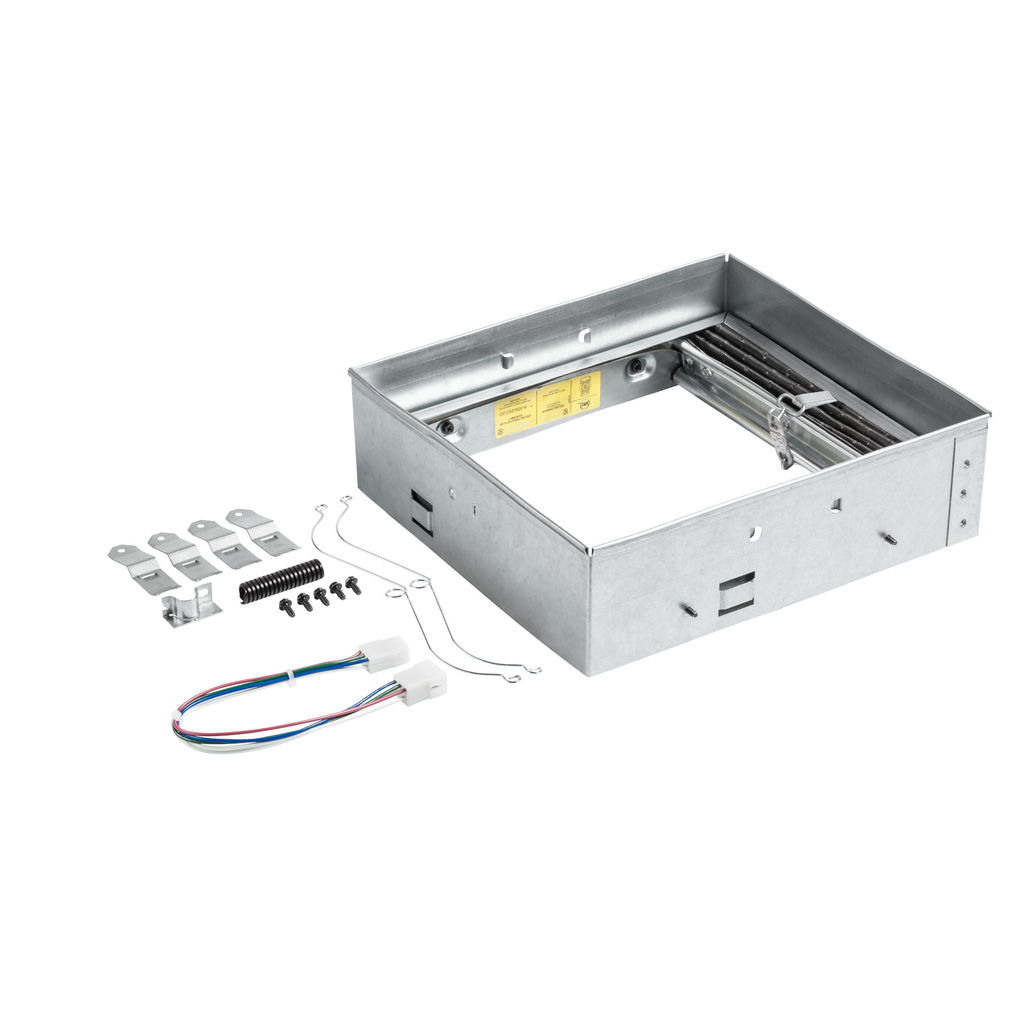

The RDFU damper features a galvanized steel frame, a 165°F fusible link, and is UL Classified (UL-555C). It is compatible with various fan and fan/light models.

Product Information

Standard Information

• Brand: BROAN-NUTONE
• Manufacturer Part Number: RDFU
• Country of Origin: USA

Technical Specifications

• Brand: Broan-NuTone
• Width: 11.625 in
• Height: 3-1/4 Inch
• Length: 10-3/4 Inch
• Material: Steel
• Catalog Number: RDFU
• Manufacturer: Broan-NuTone
• UPC: 026715234790
• GTIN: 00026715234790
• Item Type: Damper
• Length UOM: Inch
• Width UOM: Inch
• Height UOM: Inch
• Weight UOM: Pounds
• Electric fan design: Exhaust Fan
• Special Feature: Fire Safety Radiation Damper
• Recommended Uses For Product: Exhausting
• Indoor/Outdoor Usage: Indoor
• Model Name: RDFU 11676886
• Item model number: RDFU
• Assembly required: No
• Batteries required: No
