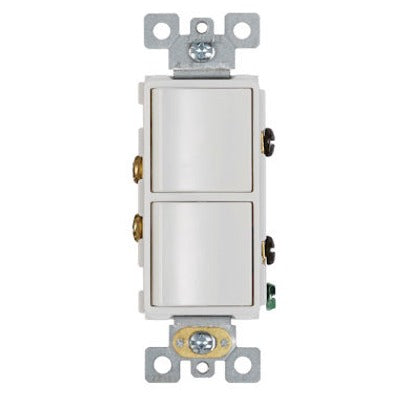

Broan-nutone Llc P2RW 2-function Rocker Switch 120V

Product Description

The BROAN-NUTONE LLC P2RW is a dual-rocker combination wall control switch rated for 120 volts at 60 Hz with a maximum load of 15 amps per switch. It provides independent control of two separate devices from a single wall-mounted unit. The white finish suits standard residential and light commercial wall plate configurations. HVAC technicians, electricians, and ventilation installers use this control to manage combinations of fans, lights, heaters, or nightlights from one location, reducing the need for multiple single-function switches in the same gang box space.

This wall control is suited for residential and light commercial applications where ventilation or bath exhaust equipment requires combined switching. Typical installations include bathroom exhaust fan and light combos, fan and heater units, or fan and nightlight assemblies. Its dual-rocker format allows each device to be switched on or off independently, giving occupants granular control without requiring separate switch locations.

Key Features

• Dual rocker design controls two devices independently from one wall unit
• Rated 120 volts at 60 Hz, 15 amps maximum per switch
• Compatible with fan, light, heater, and nightlight device combinations
• White finish for standard residential wall plate matching
• Single-gang footprint replaces two individual single-function switches

Compatibility

Designed as an OEM-style replacement or upgrade wall control for residential ventilation and bath exhaust combination units requiring dual-function switching at 120 volts.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC guidelines. Shut off the branch circuit breaker and verify power is absent at the switch box before beginning wiring. Confirm that the combined load of both controlled devices does not exceed the 15-amp per-switch rating. Standard single-gang wiring tools apply; follow local code requirements for box fill and wire management.

Technical Specifications

• Voltage: 120 volts at 60 Hz
• Amperage: 15 amps maximum per switch
• Number of Functions: 2
• Switch Type: Dual rocker
• Color: White
• Weight: 1.3 pounds
• Package Quantity: 4 per unit of measure

Standard Information

• Brand: BROAN-NUTONE LLC
• Manufacturer Part Number: P2RW
