Broan-nutone f402411 Range Hood 160 Cfm 24 Inches

Product Description

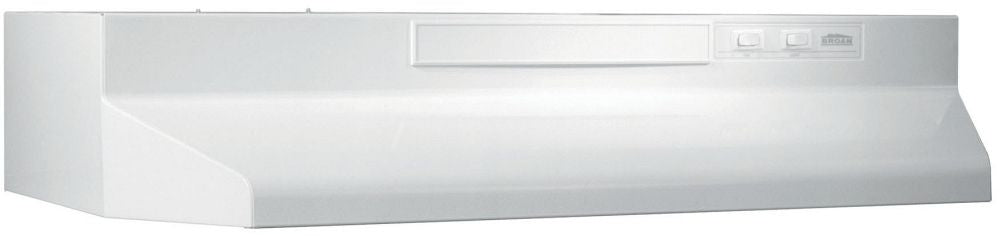

The BROAN-NUTONE f402411 is an under-cabinet range hood designed for residential kitchen ventilation. It operates on 120 volts at 2.5 amps and delivers 160 CFM through horizontal or vertical duct runs, or 190 CFM when vented vertically through the included 7-inch round adapter. A two-speed fan control lets the installer or homeowner match airflow to cooking demand. The hood measures 24 inches wide by 17.5 inches deep by 6 inches tall and ships in a white-on-white finish. A 75-watt incandescent lamp provides task lighting over the cooktop. UL listed for safety compliance. This unit is made in the USA.

The f402411 mounts under a cabinet directly above a residential range or cooktop. Its 4-way convertible duct configuration supports horizontal or vertical exhaust paths using the included 3.25-inch by 10-inch damper and adapter, or vertical round ducting through the 7-inch round plate. This flexibility suits a range of kitchen cabinet layouts where duct routing may vary. Installation is handled by a qualified contractor or licensed HVAC or appliance installer. The washable aluminum grease filter keeps maintenance simple between service visits.

Key Features

• Two-speed fan control for adjustable ventilation output
• 160 CFM airflow (horizontal or vertical) and 190 CFM (vertical round duct)
• 4-way convertible ducting with included 3.25-inch by 10-inch damper and 7-inch round adapter
• Washable aluminum grease filter for easy maintenance
• 75-watt incandescent lamp included for cooktop illumination
• UL listed; white-on-white finish; made in the USA

Compatibility

Designed as an OEM under-cabinet range hood replacement or new installation unit for residential kitchens with standard 24-inch cabinet widths. Compatible model family: F40000.

Installation Notes

Installation should be performed by a qualified contractor or licensed tradesperson in accordance with local building codes and the manufacturer's instructions. Disconnect power at the circuit breaker before beginning any wiring or mounting work. Ensure duct connections are sealed and the damper is oriented correctly for the selected exhaust path before energizing the unit. Do not operate the hood without the grease filter in place.

Technical Specifications

• Air Flow Rate: 160 CFM (horizontal or vertical), 190 CFM (vertical, round duct)
• Voltage Rating: 120 volts
• Current Rating: 2.5 amps
• Lamp Type: 75-watt incandescent
• Sound Level: 6.5 sones (horizontal or vertical), 6 sones (vertical, round duct)
• Width: 24 inches
• Depth: 17.5 inches
• Height: 6 inches
• Duct Size: 10 inches L by 3.25 inches W (horizontal or vertical), 7 inches diameter (vertical)
• Duct Type: 4-way convertible
• Filter Type: Aluminum (washable)
• Mounting Type: Under cabinet
• Finish: White on white
• Approval: UL
• Country of Origin: USA

Standard Information

• Brand: BROAN-NUTONE
• Manufacturer Part Number: f402411
