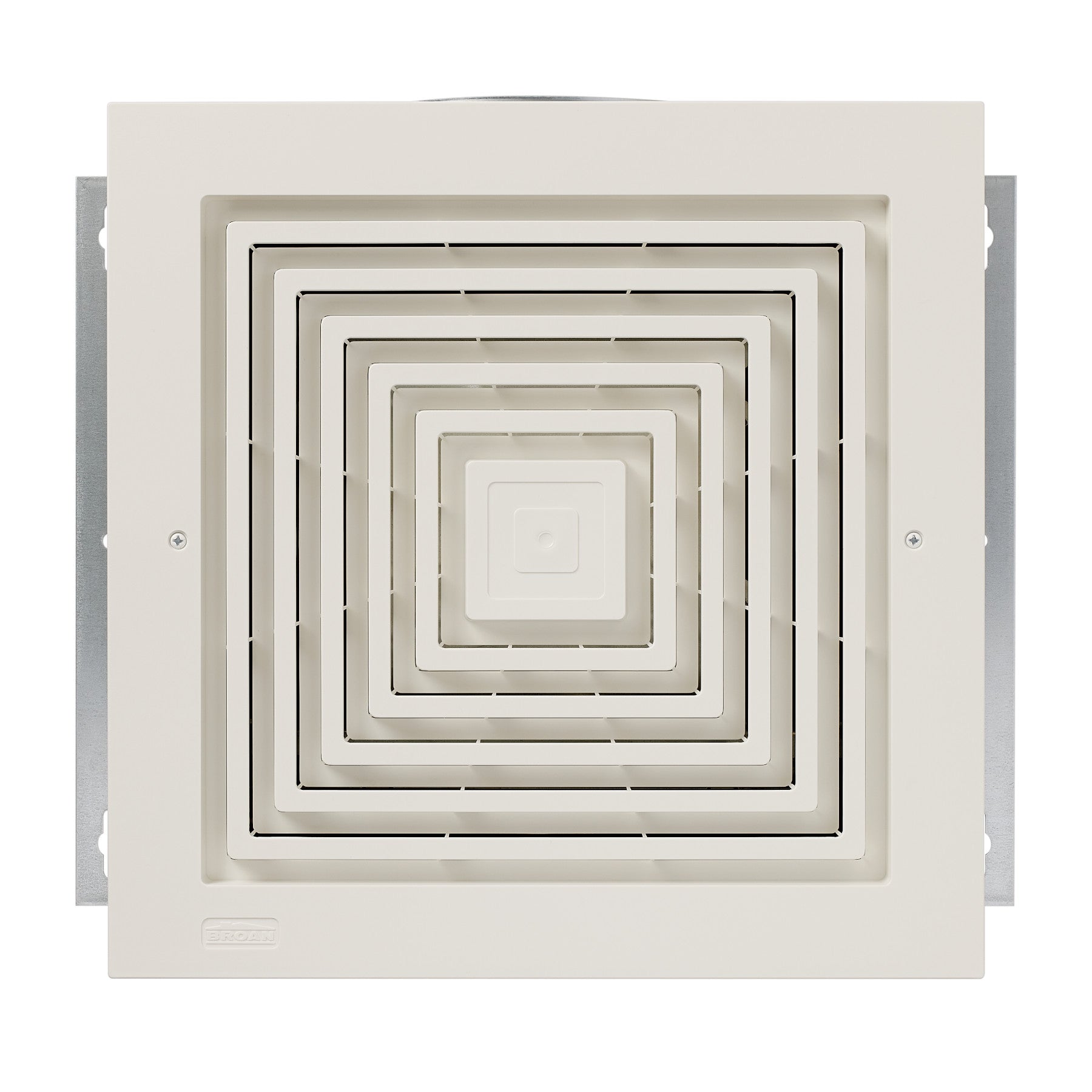

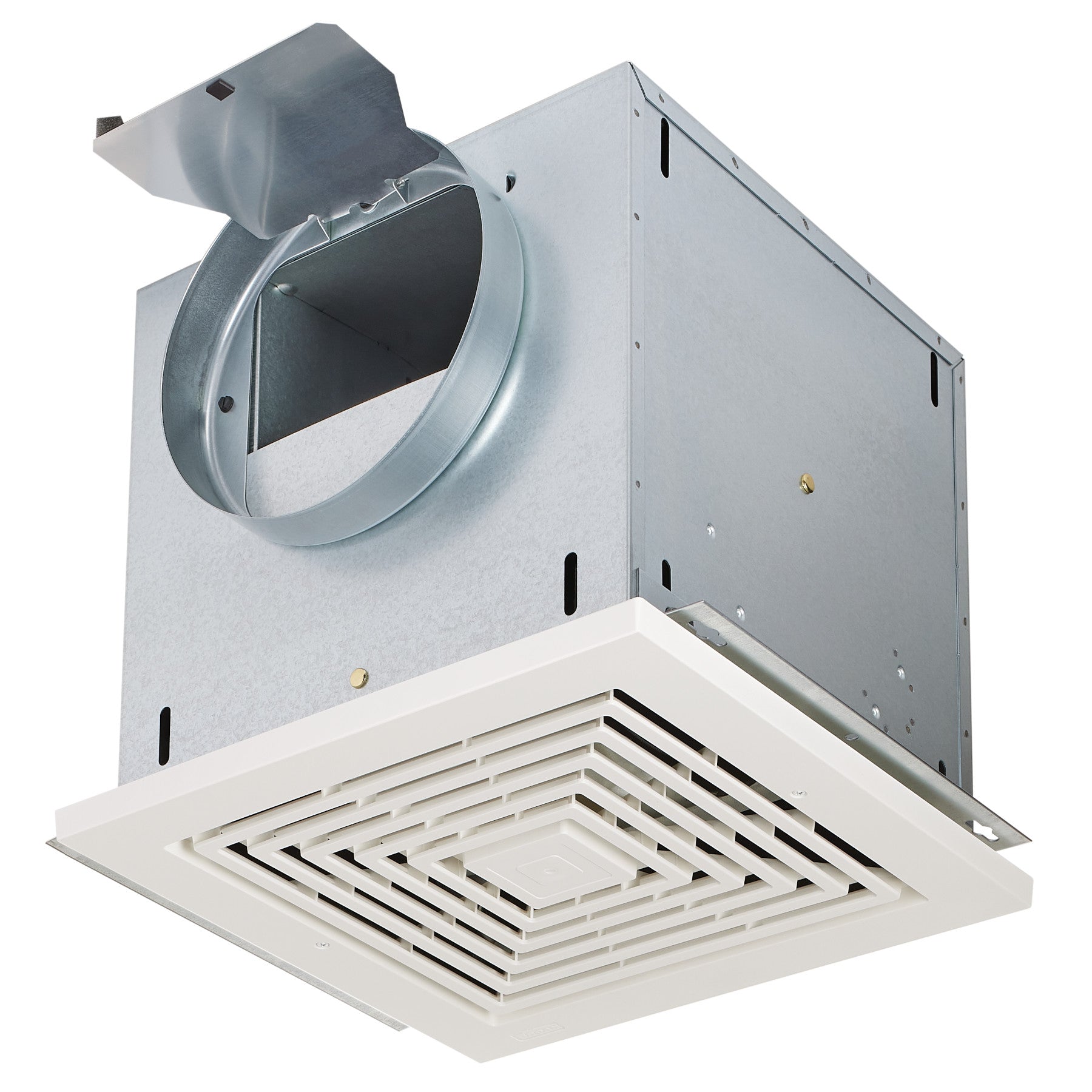

Broan-Nutone BRL100E High-Capacity, Light Commercial 130 CFM Ceiling Mount Ventilation Fan

Product Description

The BROAN-NUTONE BRL100E is a high-capacity, light commercial ENERGY STAR certified fan designed for continuous ventilation. Ideal for conference rooms and public restrooms, this fan features a heavy-duty motor and operates quietly. It includes 8-way adjustable mounting brackets for easy ceiling installation and complies with ASHRAE 90.1 (2019), IECC-C (2021), and IMC (2021).

• ENERGY STAR certified
• Features 8-way adjustable mounting brackets for easy ceiling-mount installation
• Complies with ASHRAE 90.1, IECC-C, and IMC standards

Product Highlights

High-capacity, low-vibration fan for continuous ventilation in commercial spaces. Includes adjustable mounting brackets and is ENERGY STAR certified.

Product Information

Standard Information

• Brand: BROAN-NUTONE
• Manufacturer Part Number: BRL100E

Technical Specifications

• CFM: 130
• Color Finish: White
• Duct Size: 8
• ENERGY STAR certified: Yes
• Grille Length: 14"
• Grille Width: 14"
• Housing Dimensions: 12.25” x 12.25” x 11.75”
• Sound Level (Sones): 0.3
• UL Listed: Yes
• Grille Finish: White
• Humidity Sensing: No
• Motion Sensing: No
• Motor Engineered For Continuous Operation: Yes
• Night Light: No
• Radiation Damper Available: Yes
• Room Side Installation: No
• UL Listed for use over bathtubs or showers when connected to a GFCI circuit: No
• Rated Amps: 0.3
• Voltage: 120
• Can Be Used To Comply With Title 24: No
• Manufacturer Warranty: 1 Year
