Broan-Nutone AE50110DCF Flex DC Series 50-80-110 Selectable CFM Ventilation Fan Finish Pack

Product Description

The BROAN-NUTONE AE50110DCF Flex DC Series ventilation fan finish pack offers selectable CFM for effective moisture removal. Features include selectable settings of 50, 80, or 110 CFM, and operates at <0.3-0.4-0.9 sones for quiet performance. Retrofit installations can be completed from the room-side, eliminating the need for attic access. The TrueSeal damper reduces air leakage by up to 50%.

• Selectable setting of 50, 80 or 110 CFM for Effective ventilation
• <0.3-0.4-0.9 sones for ultra quiet performance
• Retrofit installations can be done entirely from the room-side, no attic access required

Product Highlights

ENERGY STAR certified with a brushless DC motor for efficient operation. Suitable for rooms up to 100 sq. ft. UL Listed for use over tubs and showers with a GFCI circuit.

Product Information

Standard Information

• Brand: BROAN-NUTONE
• Manufacturer Part Number: AE50110DCF

Technical Specifications

• Catalog Number: AE50110DCF
• Manufacturer: Broan-NuTone
• Brand: Broan-NuTone
• UPC: 026715256983
• Item Type: Ventilation Fan
• CFM: 50-80-110
• Duct Size: 4
• ENERGY STAR® certified: Yes
• Grille Length: 11.5
• Grille Width: 12

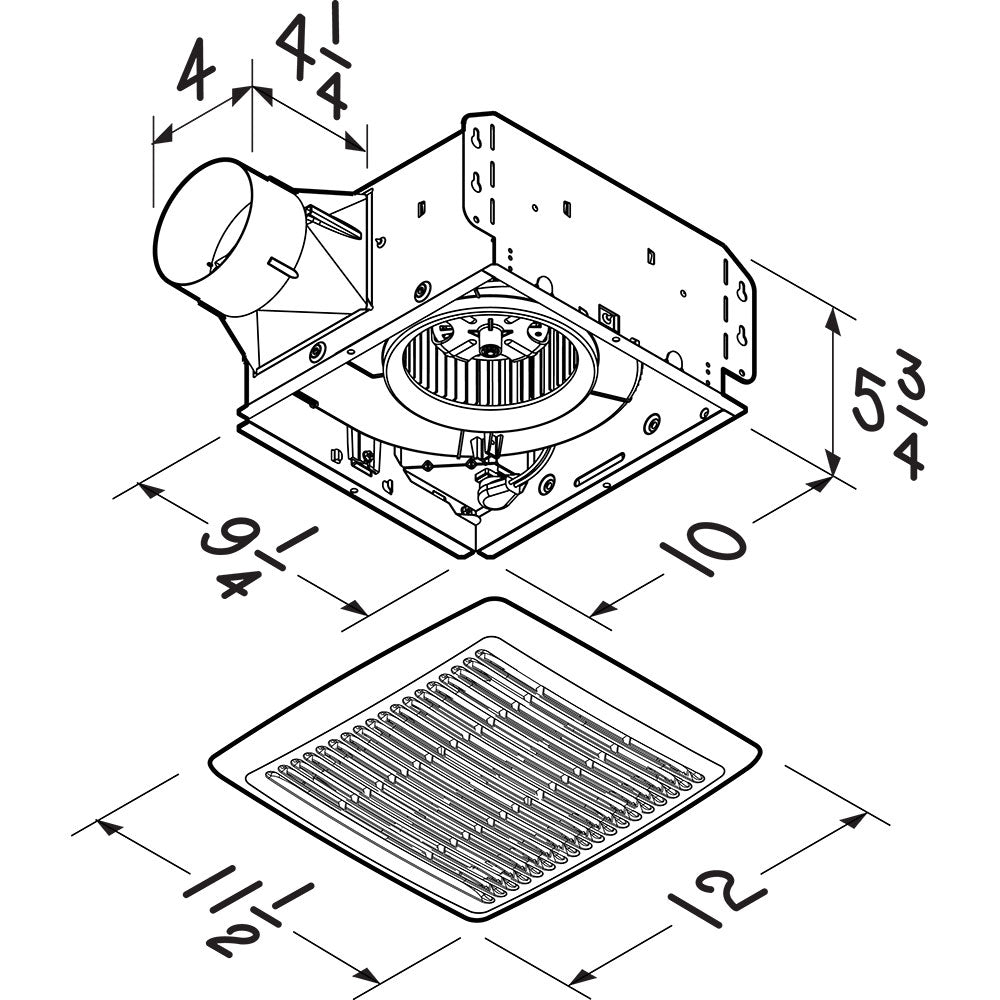

• Housing Dimensions: 9-1/4" x 10" x 5-3/4"
• Sound Level (Sones): 0
• UL Listed: Yes
• Grille Finish: White
• Humidity Sensing: No
• Motion Sensing: No
• Motor Engineered For Continuous Operation: Yes
• Night Light: No
• Radiation Damper Available: Yes
• Room Side Installation: Yes
• UL Listed for use over bathtubs or showers when connected to a GFCI circuit: Yes
• Heater Wattage: 0
• Recommended Room Size (Sq Ft): 105
• Rated Amps: 0.3
• Voltage: 120
• Can Be Used To Comply With Title 24: No
• Minimum Construction Space Required: 2" x 6"
• High Efficiency Luminaire: No
• Minimum Recommended Flow: 0
