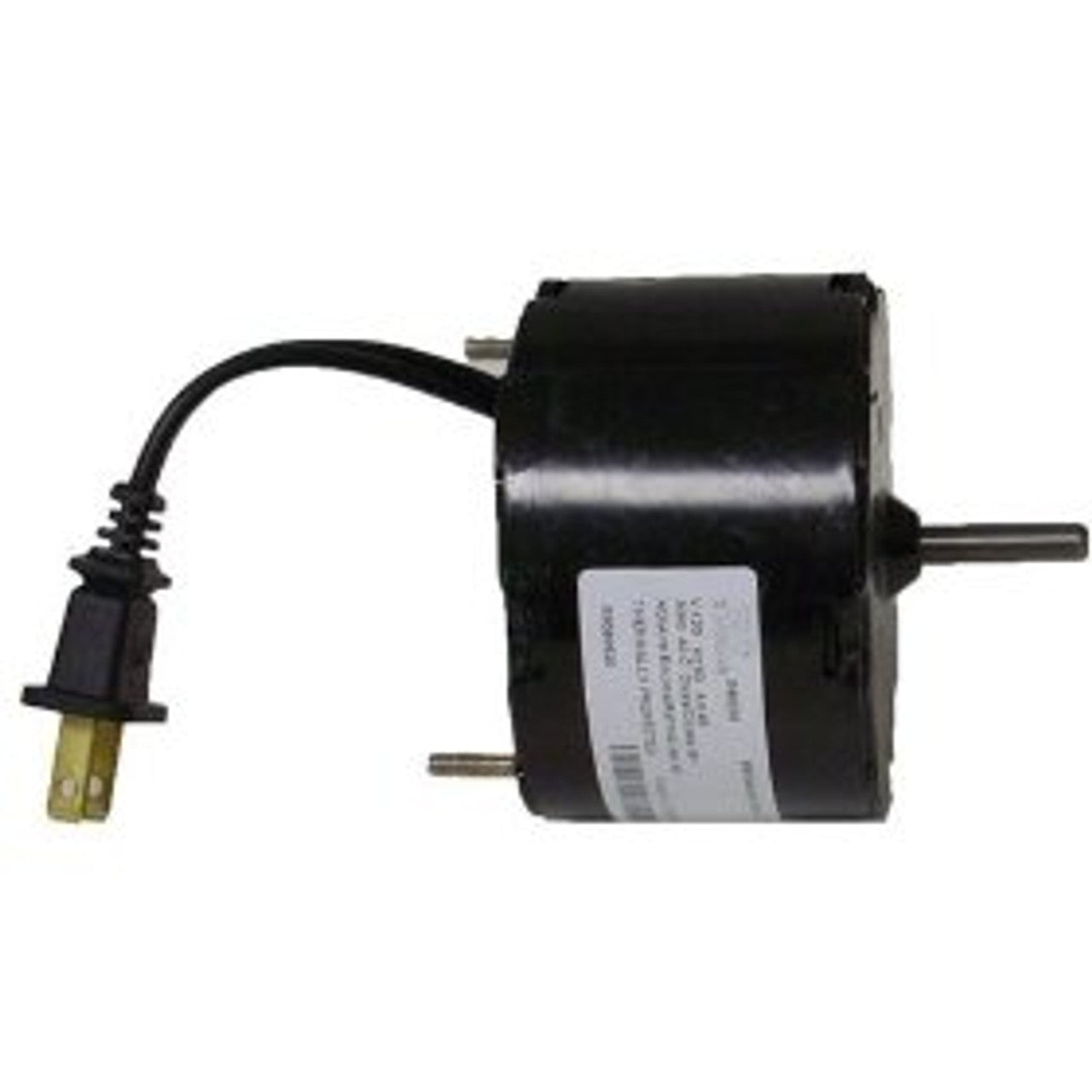

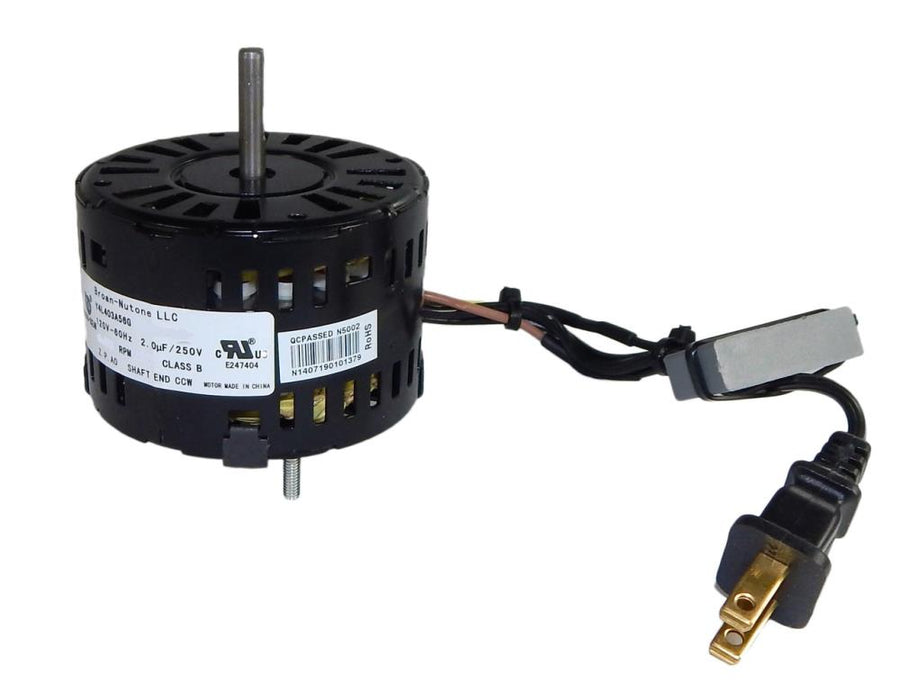

Broan-Nutone 99-08-0517 Vent Fan Motor

Product Description

The Broan-Nutone 99-08-0517 is a motor built for Broan and Nutone ventilation fan units. It has a frame size of 3.3 inches and an open enclosure. This motor includes thermal protection and operates with air-over cooling. The shaft measures one-fourth inch in diameter and seven-eighths inch in length, designed for rear stud mounting with two studs.

• Motor frame size: 3.3 inches
• Shaft dimensions: 1/4 inch x 7/8 inch
• Mounting style: Rear stud (2 studs)

Product Highlights

This motor is suitable for various ventilation needs. It is designed to fit specific Broan and Nutone models, ensuring efficient airflow.

Product Information

Standard Information

• Brand: Broan-Nutone
• MPN: 99-08-0517

Technical Specifications

• Product Type: PSC (Permanent Split Capacitor)
• Motor Speed: 1600 RPM
• Input Voltage: 120 Volts
• Input Frequency: 60 Hz
• Input Current: 0.9 Amps
• Phase: 1
• Frame Size: 3.3
• Enclosure Type: Open
• Mounting Type: Rear stud (2 studs)
• Shaft Diameter: 1/4
• Shaft Length: 7/8
• Rotation: CCW Shaft End
• Cooling Type: Air Over
• Protection: Thermally Protected
• A Dimension: 2-1/4
