Broan-nutone 90 Ventilation Fan Led 90 Cfm 1.0 Sones

Product Description

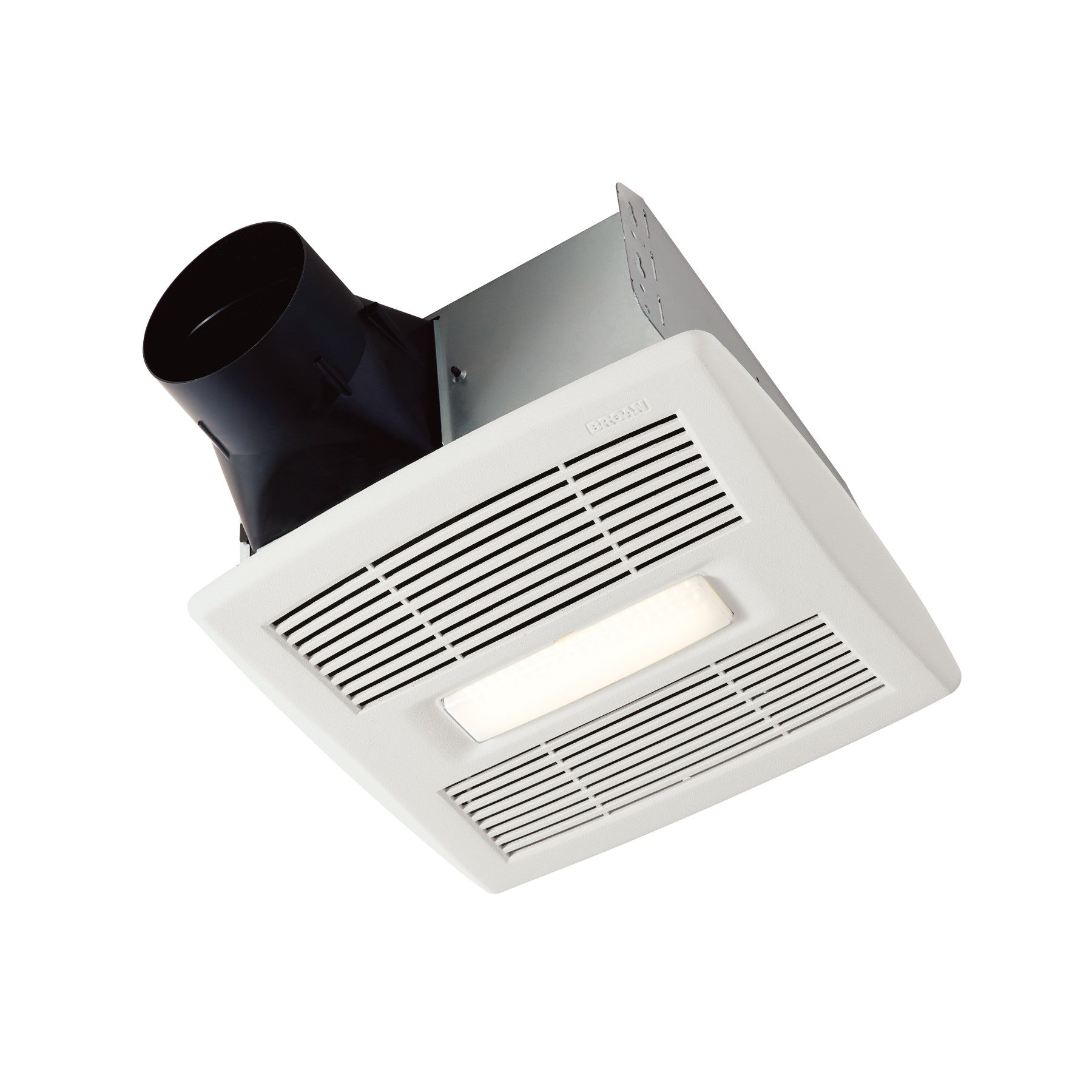

The BROAN-NUTONE 90 is a ceiling-mounted bathroom ventilation fan with integrated LED lighting designed for residential full-bath applications. Running at 90 CFM and 1.0 sones, it moves enough air to service rooms up to 85 square feet while staying nearly silent during operation. The 3000K LED fixture replaces a separate light source and draws less power than incandescent alternatives. Licensed HVAC techs and electricians install this unit in new construction framing or as a direct retrofit into an existing ceiling opening, with all work accessible from the room side without attic entry.

This fan is suited for full bathrooms, water closets, and enclosed shower rooms in residential settings. The EzDuct connector attaches from the room side, eliminating the need for attic or crawl space access during duct hookup. TrueSeal Damper technology cuts air leakage by up to 50 percent compared to standard backdraft dampers, which reduces conditioned-air loss and helps maintain indoor air quality between cycles. Foldable mounting ears accommodate both new-construction joist bays and room-side replacement installs without additional framing hardware.

Key Features

• 90 CFM airflow rated for rooms up to 85 square feet
• 1.0 sone noise rating for near-silent operation
• Integrated 3000K energy-efficient LED lighting
• EzDuct connector installs from the room side with no attic access required
• TrueSeal Damper reduces air leakage by up to 50 percent
• ENERGY STAR certified and HVI-2100 certified
• UL listed for use over tub or shower on a GFCI branch circuit (ceiling mount only)

Compatibility

Designed as an OEM-style replacement or new-construction ventilation fan for residential full-bath ceiling installations requiring a 90 CFM rated exhaust fan with integrated lighting.

Installation Notes

Installation is performed by a licensed electrician in compliance with NEC requirements, including a GFCI-protected branch circuit when the unit is mounted over a tub or shower. Power to the circuit must be shut off at the breaker before any wiring work begins. Duct connections should be made to rigid or semi-rigid metal duct per local mechanical code to maintain airflow performance and minimize condensation in the duct run. Do not install in a wall-mount orientation; this unit is rated for ceiling mount only.

Technical Specifications

• Airflow: 90 CFM
• Noise Level: 1.0 sones
• Light Color Temperature: 3000K
• Maximum Room Coverage: 85 square feet
• Air Leakage Reduction: Up to 50 percent (TrueSeal Damper)
• Certifications: ENERGY STAR, HVI-2100, UL Listed
• Mount Type: Ceiling mount

Standard Information

• Brand: BROAN-NUTONE
• Manufacturer Part Number: 90
