BROAN-NUTONE 69357 Fan Motor Assembly

Product Description

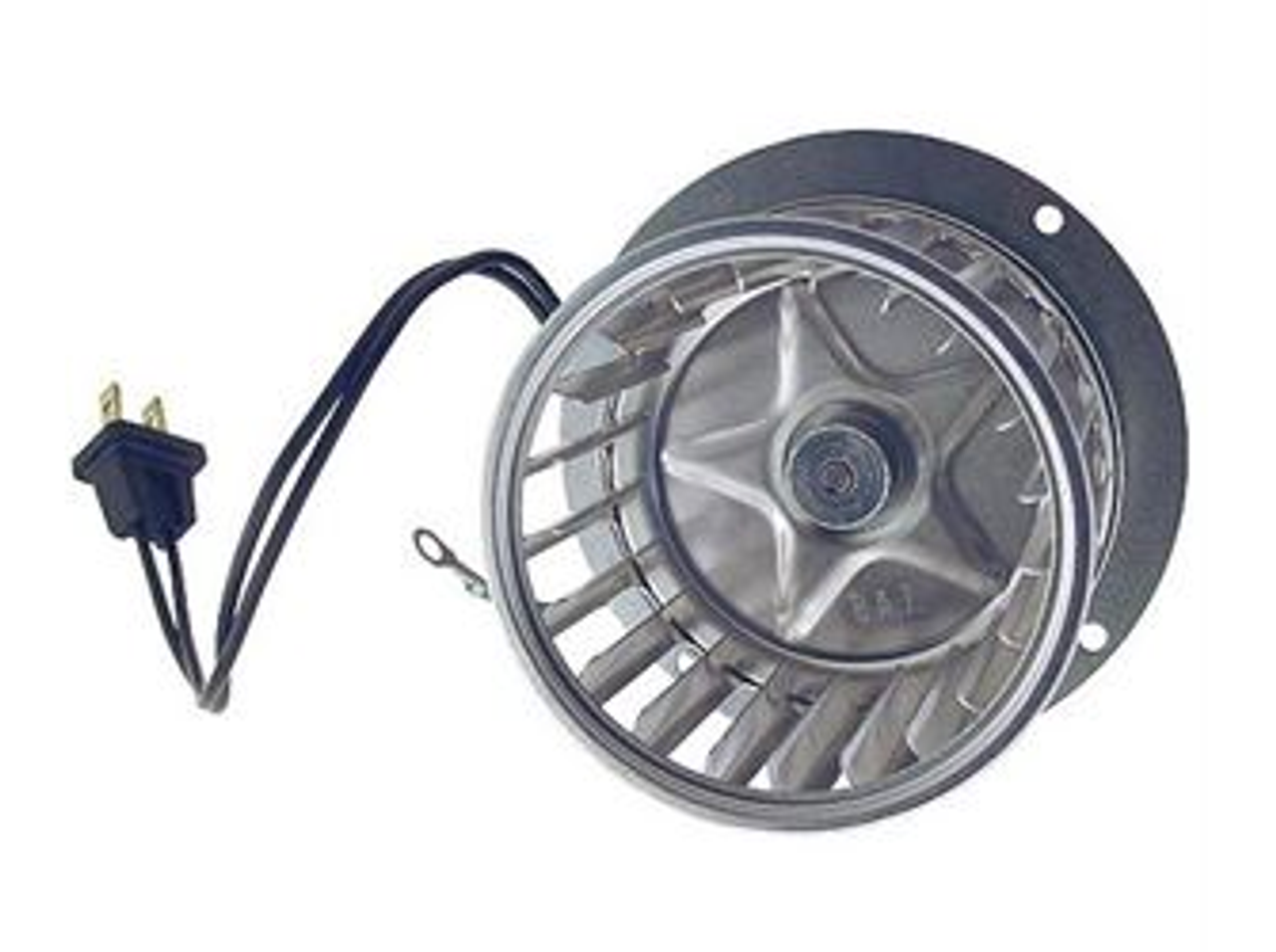

The BROAN-NUTONE 69357 Fan Motor Assembly is designed for use in ventilation systems. This assembly includes a motor, fan blade, and a two-prong plug, making it a complete replacement part. The motor functions efficiently at 120 volts and 0.9 amps. The fan features a wheel with a diameter of three and three-quarters inches and a height of two and three-eighths inches. The mounting bracket measures four and five-eighths inches in diameter and includes mounting holes spaced three inches apart.

• Complete assembly with motor, fan blade, and plug.
• Fan wheel dimensions: 3-3/4 inches in diameter, 2-3/8 inches in height.
• Mounting bracket with specific hole spacing for easy installation.

Product Highlights

This fan motor assembly is essential for maintaining effective airflow in your ventilation system.

Product Information

Standard Information

• Voltage: 120 Volts
• Current: 0.9 Amps

Technical Specifications

• Wheel Diameter: 3-3/4 inches
• Wheel Height: 2-3/8 inches
• Mounting Bracket Diameter: 4-5/8 inches
• Mounting Holes Center to Center: 3 inches
