BROAN-NUTONE 0696B Fan Vent Assembly

Product Description

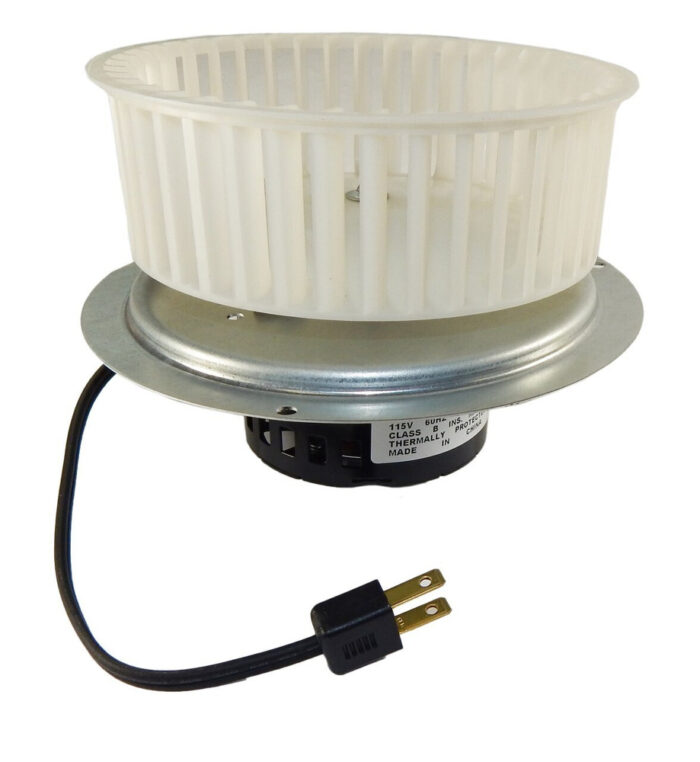

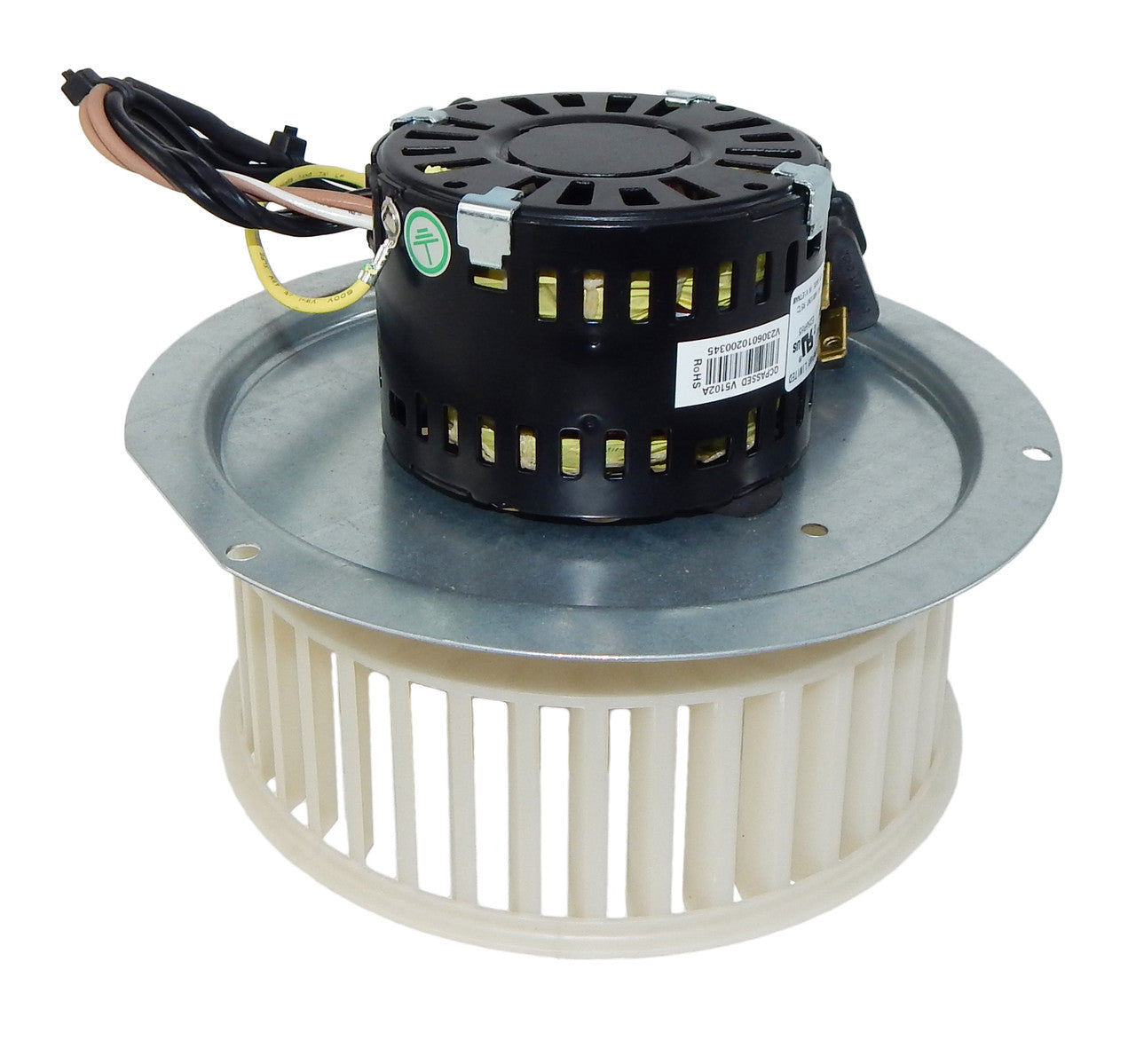

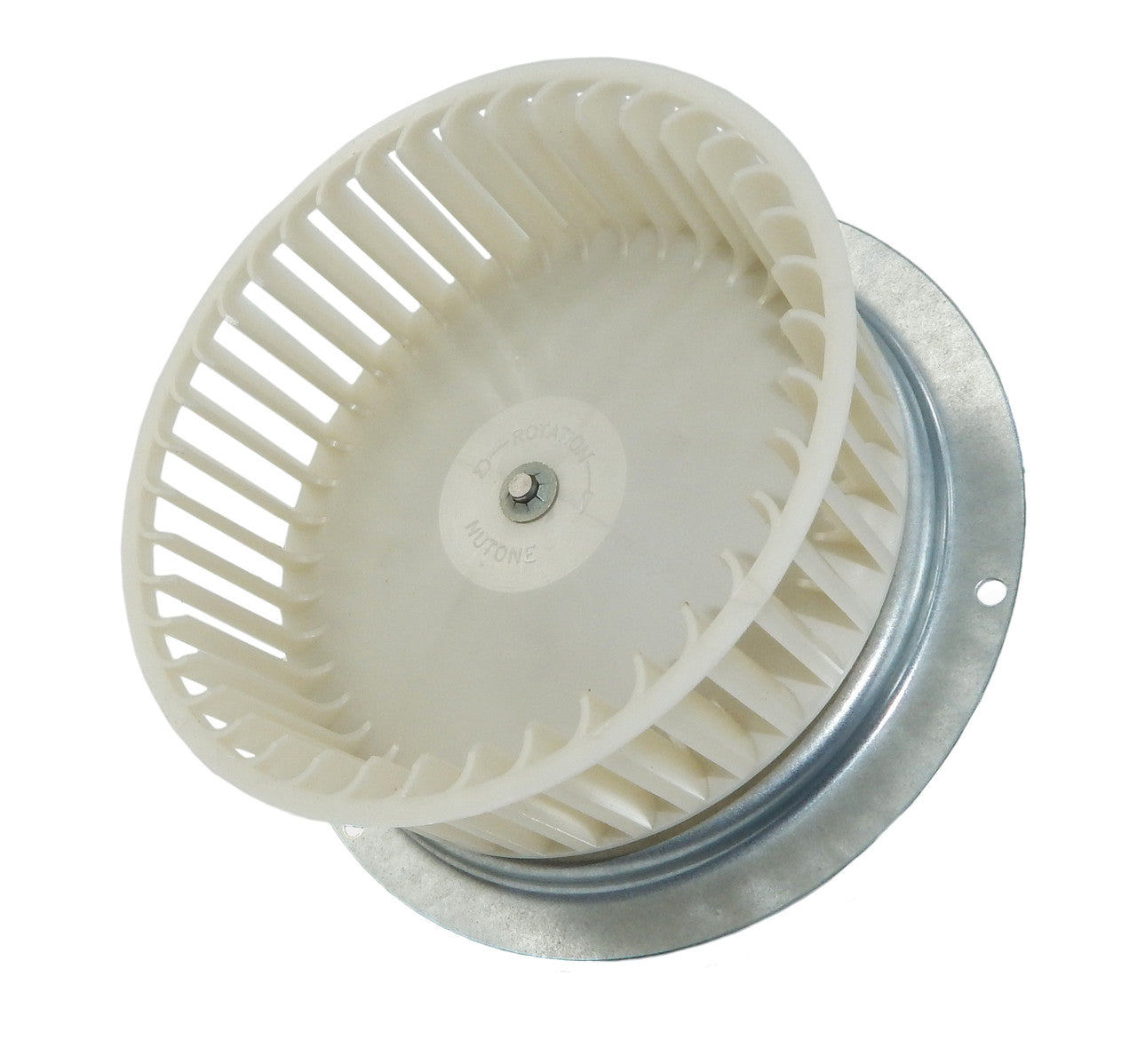

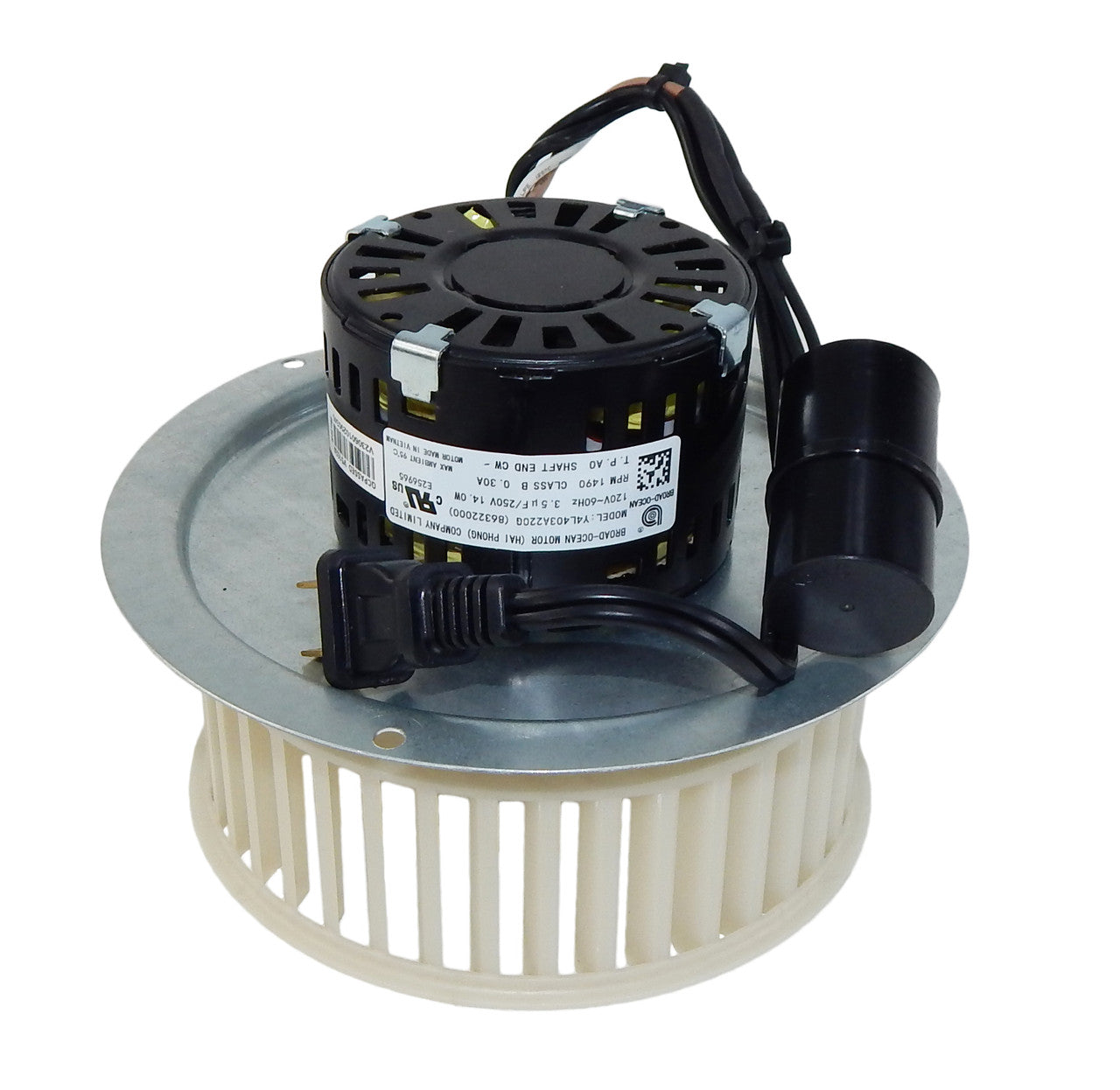

The BROAN-NUTONE 0696B fan vent assembly is a reliable component designed for ventilation systems. This assembly includes a motor, blower wheel, and mounting plate with a plug. The motor features an integrated run capacitor for efficient operation. With a motor diameter of three point three inches and a clockwise rotation, this assembly ensures effective airflow. The blower wheel has dimensions of six and a quarter inches by two inches.

• Includes motor, blower wheel, and mounting plate
• Features motor with integrated run capacitor
• Blower wheel dimensions: six and a quarter by two inches

Product Highlights

Product Information

Standard Information

• Brand: BROAN-NUTONE
• MPN: 0696B

Technical Specifications

• Voltage: 115V
• Frequency: 60HZ
• Current: 0.8A
• RPM: 1630
• Rotation: CW
• Blower Wheel Dimensions: 6-1/4 inches x 2 inches
• Insulation Class: Class B
• Ambient Temperature: 40 degrees Celsius
• Motor Diameter: 3.3 inches
• Shaft Size: 1/4 x 1 inch
• Motor Case Length: 2 inches
• Mounting Plate: 5 13/16 inches o.c.
• Plug Type: 2 prong
• Weight: 6.00 lbs
• Motor Rotation: CWSE
