Product Description

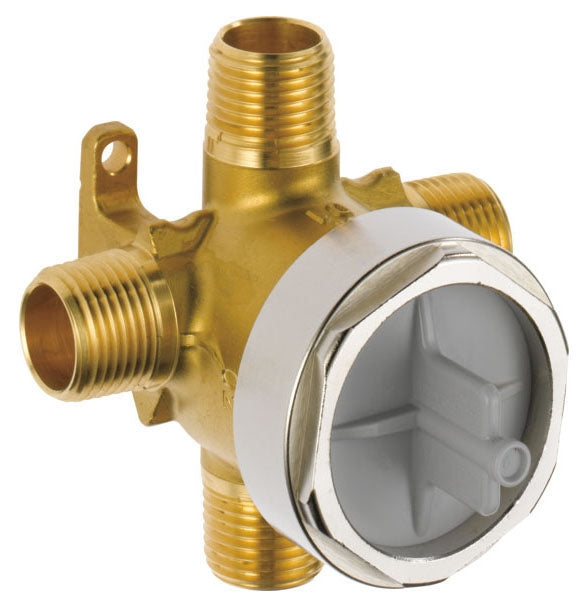

The Brizo R60700 is a diverter rough that supports multiple functions. It is designed for use in tub and shower applications. The product features a three-port configuration ideal for both 3 and 6-function diverter trims. This rough-in valve can be installed prior to selecting your trim, thus allowing flexibility during project development.
- 3-Port diverter design
- Constructed from forged brass
- Male threaded inlet and outlet connections
Product Highlights
Suitable for installation in residential and commercial settings, this unit is compliant with ASME standards and includes an extension kit for up to one inch of additional installation length. The extension kit is a part of the product and simplifies installation.
Product Information
Standard Information
Technical Specifications
-
Type: 3-Port, 6-Function, Diverter, Rough-In
-
Inlet Size: 1/2 Inch
-
Valve Material: Forged Brass
-
Connection Type: Male Threaded
-

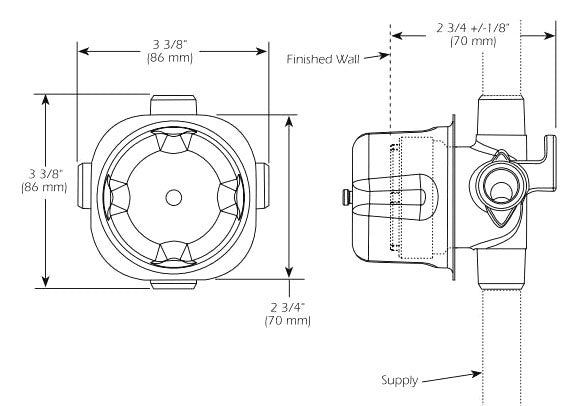

Overall Dimensions: 3-3/8 Inch Width x 3-3/8 Inch Height
-
Test Pressure: Air (200 PSI) or Water (300 PSI)
-
Inclusions: Extension Kit, Test Cap
-
Applicable Standard: ASME A112.18.1/CSA B125.1
