Brizo 64965lf-bllhp Smarttouch Pull Down Kitchen Faucet

Product Description

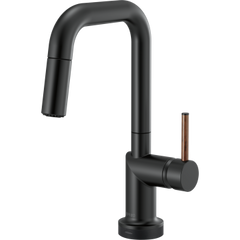

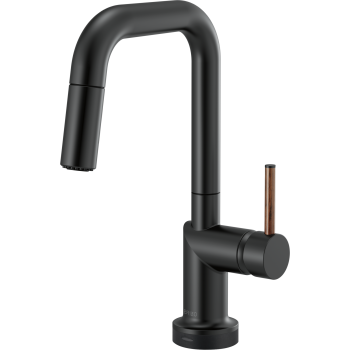

The BRIZO 64965lf-bllhp is a SmartTouch pull-down prep and kitchen faucet from the Odin collection, designed for single-hole deck-mount installations. The faucet uses SmartTouch Technology with TempID tap-on/off functionality and a temperature-indicating LED light, giving installers and end users a clear visual read on water temperature. The Diamond Valve pairs with InnoFlex waterways to deliver long-term drip-free performance at a rated flow of 1.8 gallons per minute. The square spout rotates 360 degrees and the pull-down wand delivers two functions: aerated stream and spray. This unit ships without a handle, which is required and sold separately.

The 64965lf-bllhp is suited for residential kitchen installations, particularly prep sink applications. It accommodates deck thicknesses up to 3 inches and ships with 3/8-inch compression fittings. A spout projection of 7.125 inches and an overall height of 12.625 inches fit standard under-cabinet clearances. An optional A/C adapter (EP73954) and optional voice activation module (EP100854) for connected home integration are available separately. An optional escutcheon is also available for installations requiring deck coverage.

Key Features

• SmartTouch Technology with TempID LED temperature indicator for tap-on/off control
• MagneDock Technology magnetic wand docking system for secure wand retention
• Two-function pull-down wand with aerated stream and spray modes
• Diamond Valve with InnoFlex waterways for long-term leak-free operation
• 360-degree swivel spout with 7.125-inch projection
• Accommodates deck thickness up to 3 inches with included 3/8-inch compression fittings
• Compatible with optional voice activation module (EP100854) for smart home integration

Compatibility

Handle required and sold separately — compatible handles include HLK175 and HLK177. Optional escutcheon available as RP71451. Optional A/C adapter EP73954 and optional voice activation module EP100854 are available for connected home use. Designed for single-hole deck-mount installations accommodating up to 3 inches of deck thickness.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC guidelines. Shut off the water supply and relieve line pressure before beginning work. The unit ships without a handle — verify the correct handle model is on hand before starting the installation. Connect the included 3/8-inch compression fittings to the supply lines and confirm all connections are leak-free before restoring water supply.

Technical Specifications

• Flow Rate: 1.8 GPM
• Spout Projection: 7.125 inches
• Overall Height: 12.625 inches
• Distance from Aerator to Deck: 7.125 inches
• Spout Style: 360-Degree Swivel
• Faucet Style: Pull-Down
• Number of Faucet Holes: 1
• Handle Position: Side
• Handle Material: Metal
• Installation Type: Deck Mount
• Max Deck Thickness: 3 inches
• Supply Fitting: 3/8-inch compression
• Collection: Odin

Standard Information

• Brand: BRIZO
• Manufacturer Part Number: 64965lf-bllhp
