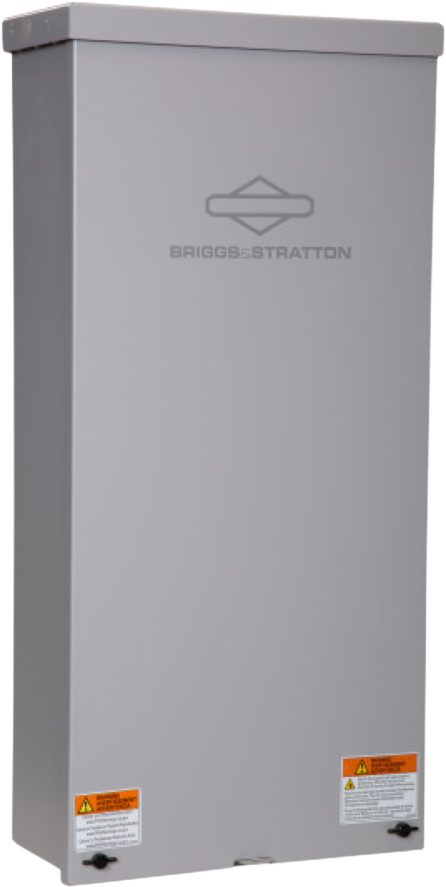

Briggs & Stratton 071270 200-Amp Outdoor Automatic Transfer Switch

Product Description

The Briggs & Stratton 071270 is a 200-Amp Outdoor Automatic Transfer Switch designed for use with Briggs & Stratton standby generators. This powerful unit is rated for service entrance and can manage up to 200 amps at 240 volts, allowing it to power all circuits without the need for a sub-panel.

• Service Entrance Rated (200A @ 240V)
• NEMA 3R Outdoor Rated Enclosure
• Compatible with Symphony Choice for advanced load management

Product Highlights

This transfer switch features flexibility in mounting locations, providing options for both indoor and outdoor setups. It is equipped with computer-controlled load management, enabling the prioritization of powered circuits to expand the capacity of your generator setup. A 7-year warranty is included for added peace of mind.

Product Information

Standard Information

• Brand: Briggs & Stratton
• MPN: 071270

Technical Specifications

• Voltage: 120/240 Single-Phase
• Rated Amps: 200 Amps
• Maximum Wattage: 48000 Watts
• Transfer Switch Style: Service Disconnect
• Enclosure: NEMA 3R
• Product Length: 16 inches
• Product Width: 7 inches
• Product Height: 30 inches
• Frequency: 60 Hertz
• UL Listed: Yes
• Consumer Warranty: 7 Years
• Maximum Utility Input: 200 Amps
• Maximum Generator Input: 200 Amps
