Bridgeport SGB38840 3 IN Split Grounding Bushing #6-250Mcm, Box of 25

Product Description

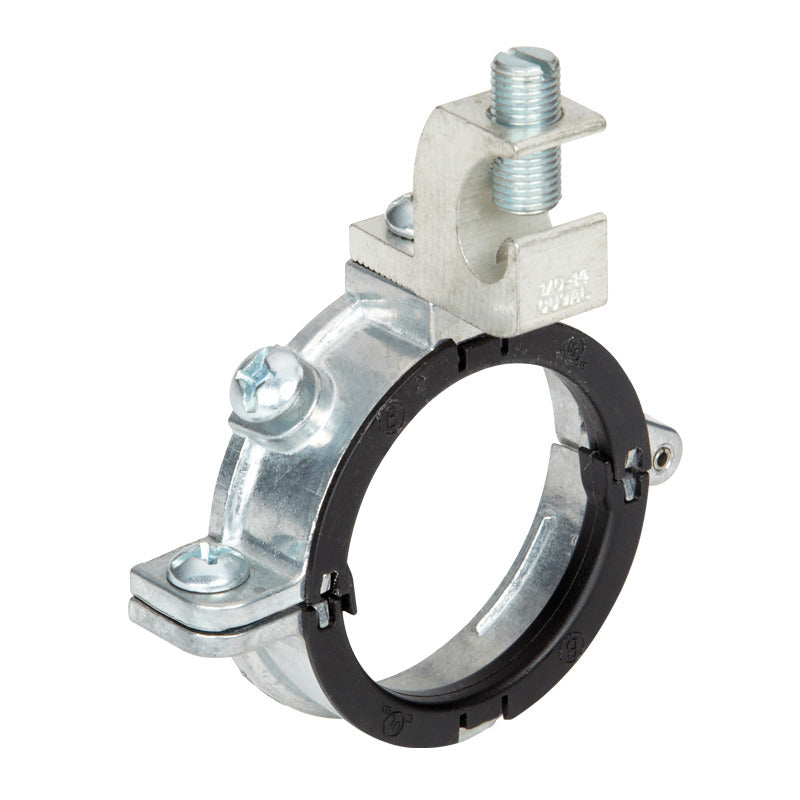

The Bridgeport SGB38840 3" Mighty-Rite Zinc Die Cast Insulated Split Grounding Bushing with Aluminum Lug is used to install bushings to 3" rigid or IMC conduit or EMT fittings before or after wire pull-through. It joins 6 AWG to 250 MCM conduit to 3 inch conduit and meets OSHA-recognized, NRTL-listed electrical standards.

• Eco-Friendly: The byproducts of zinc casting can be melted down and recast to make new metals without property degradation
• Grounded & Insulated: The tin-plated aluminum alloy 6061-T6 grounding lug provides maximum precipitation hardening and the UV-stabilized nylon insulator lining prevents damage to the wire
• Might-Rite Patented Design: The Might-Rite split design, available with stainless steel hardware and UV-stabilized insulators, makes positioning easy to save time and money on expensive rework

Product Highlights

The Bridgeport SGB38840 grounding bushing features a ball burnished finish and is suitable for use with rigid/IMC conduit. It is cULus listed and meets bonding and grounding requirements of 514B and 467 cULus.

Product Information

Standard Information

• Brand: BRIDGEPORT
• Manufacturer Part Number: SGB38840
• Country of Origin: China

Technical Specifications

• Material: Zinc Alloy
• Finish: Ball Burnished; Mirror Smooth
• Pack Qty: 25
• UPC: 781747938855
• Application: Used in situations where wires have already been pulled through Rigid/IMC conduit, and an insulated bushing is required. Grounding lug; aluminum alloy 6061-T6. Rated 150 Degree C. cULus listed. Patented. Now featuring UV Stabilized Insulators and Stai
• Use With: Rigid/IMC Conduit
• Lug Capacity: 6 AWG to 250 MCM
• Lug Type: Aluminum
• Temp. Rating: 150°C
