Bridgeport SGB-388CL Bushing Grounding Split 3in 6AWG

Product Description

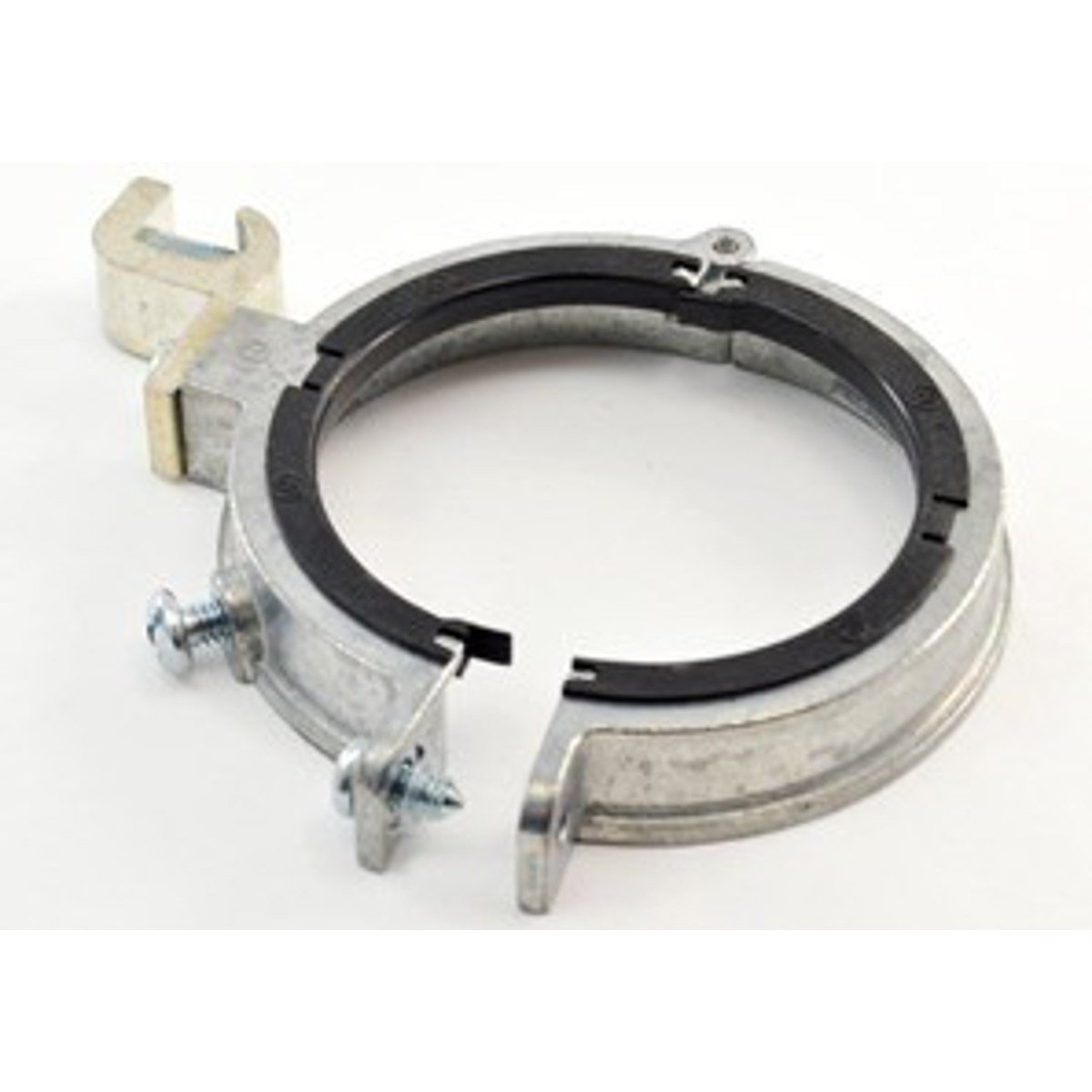

Bridgeport SGB-388CL is a grounding split bushing designed for use in Rigid and IMC conduits. This bushing is suitable for installations where wires have already been pulled through, making it ideal for electricians. The aluminum alloy grounding lug accommodates wire sizes from six AWG to two hundred fifty kcmil.

• Insulated split design allows for easy installation after wire pull
• Rated for one hundred fifty degrees Celsius
• Durable zinc die-cast construction

Product Highlights

Bridgeport's split bushing installs quickly and securely. The hinged design allows for flexibility during installation, providing ease of use in tight spaces.

Product Information

Standard Information

• Manufacturer: Bridgeport Fittings, LLC
• Brand: Bridgeport

Technical Specifications

• Material: Zinc Die Cast
• Diameter: Four inches ID x Two point eighty-seven inches OD
• Minimum Wire Size: Six AWG
• Maximum Wire Size: Two hundred fifty kcmil
• Temperature Rating: One hundred fifty degrees Celsius
• RoHS Compliant: Yes
• Application: For use with Rigid and IMC conduits
• Standard: cULus Listed, NEMA FB-1
