Bridgeport Fittings SB-386NM Split Conduit Bushing Plastic Insulating 2 in.

Product Description

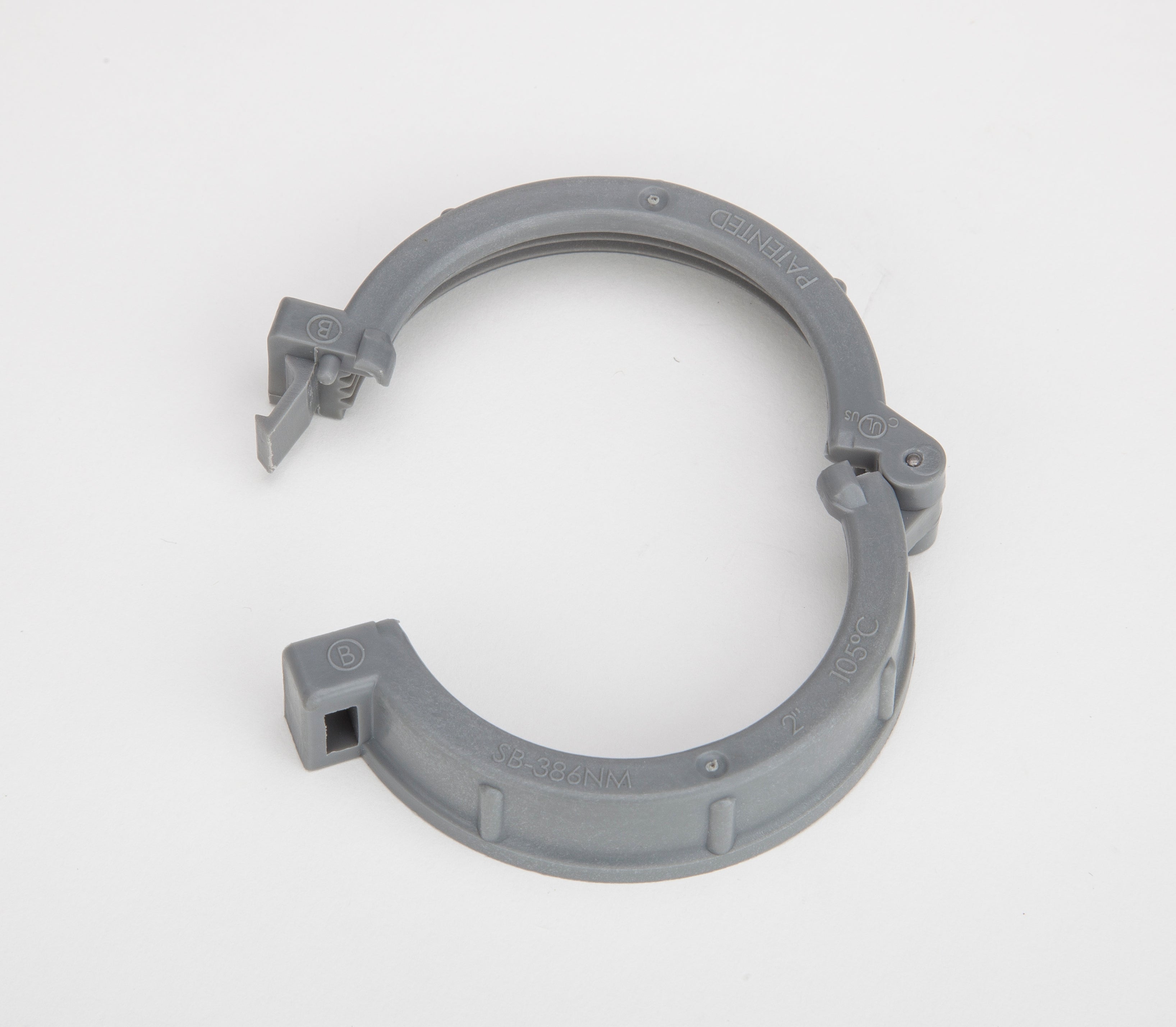

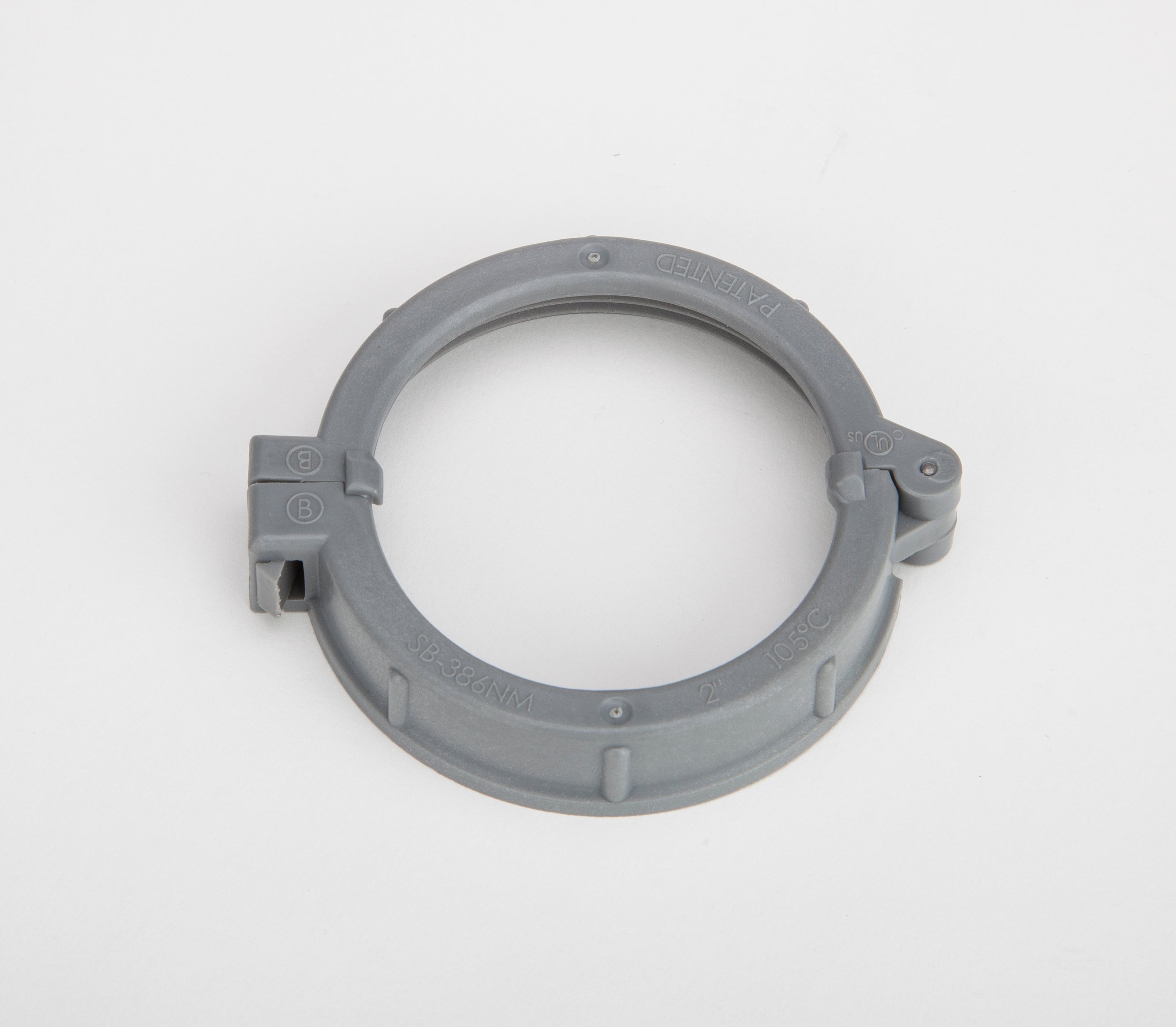

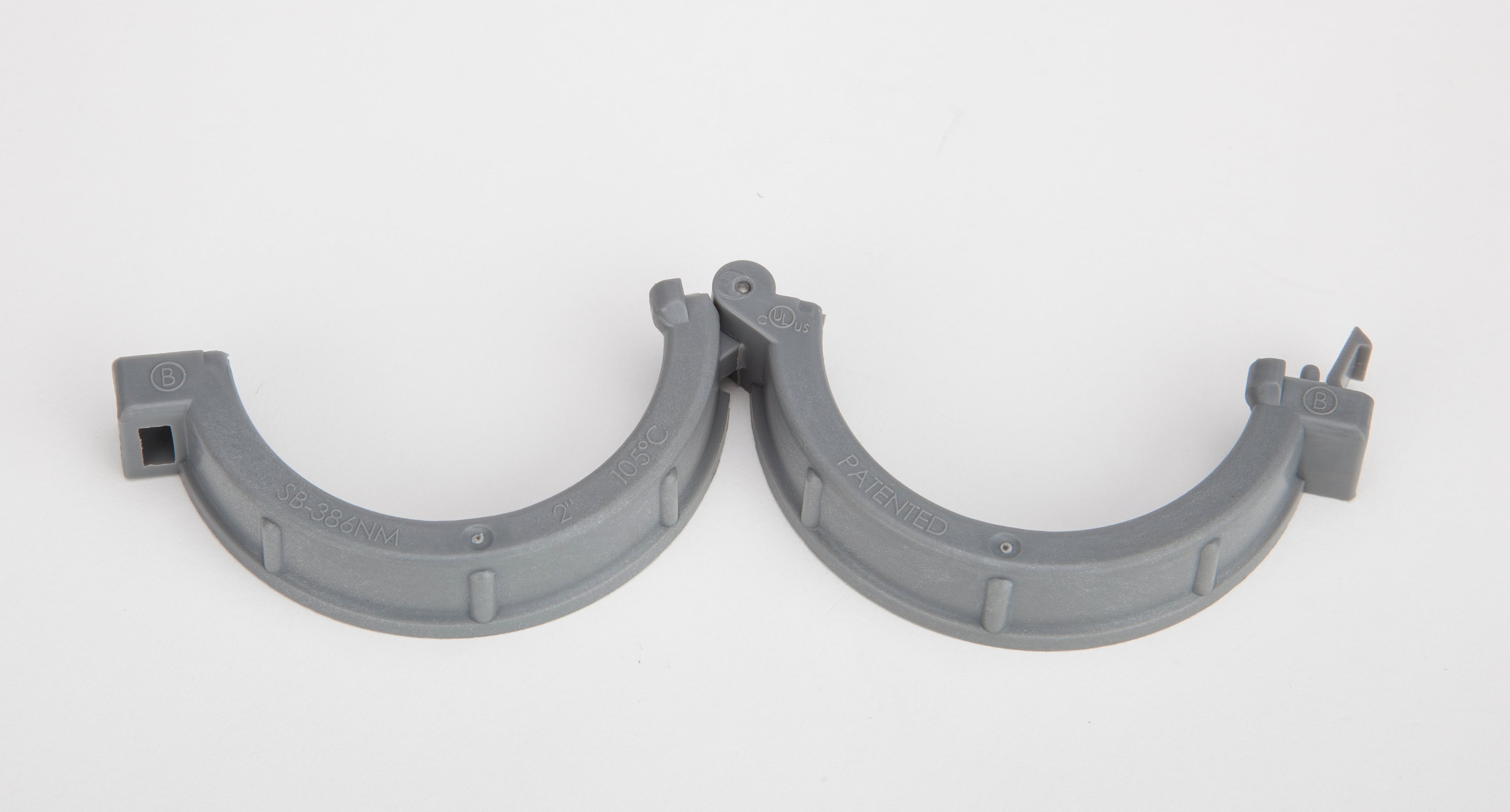

The BRIDGEPORT FITTINGS SB-386NM is an insulated plastic split conduit bushing designed for 2-inch trade size applications. This patented non-metallic bushing is rated for temperatures up to 105°C and is cULus listed. It is specifically engineered for use in situations where conductors have already been pulled through rigid or IMC conduit, providing insulation and protection.

• Split design allows installation after wires are pulled through conduit.
• Insulated plastic construction protects conductors.
• Rated for 105°C temperature applications.

Product Highlights

Patented non-metallic split bushing for post-wire pull installation in 2-inch rigid/IMC conduit, cULus listed.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: SB-386NM
• Country of Origin: China

Technical Specifications

• ECCN: EAR99
• Country of Origin: China
• UNSPSC: 39121312
• Throat Type: Insulated
• Color: Gray
• Temperature Rating: 105°C
• Trade Size: 2 inch
• Material: Nylon/Plastic
• Type: Non-Metallic Patented Split Bushing
• Finish: Plain
• Dimensions: 1.99 in ID x 2.64 in OD
• Standards: RoHS Compliant, UL File No. E9391, cULus Listed, UL-514B
• Use With: Rigid/IMC Conduit
