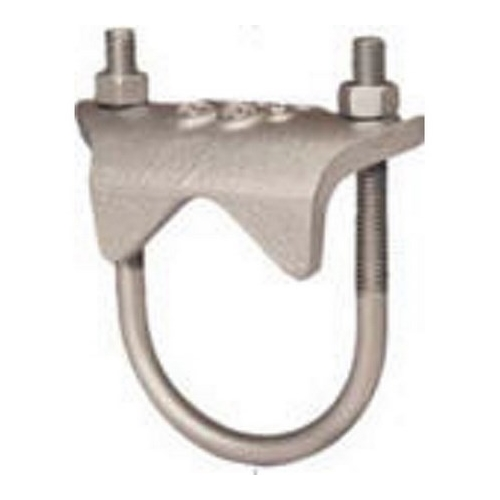

Bridgeport Fittings 967 Right Angle Conduit Clamp 2-1/2 in

Product Description

The BRIDGEPORT FITTINGS 967 is a right angle type conduit clamp designed to secure rigid metal conduit and intermediate metal conduit (IMC) perpendicular to structural support beams. Constructed from malleable iron, this clamp delivers the strength and durability required for commercial and industrial conduit installations. A U-bolt design captures the conduit, and tightening the nuts locks it firmly in place. This fitting is installed by licensed electricians and electrical contractors working on conduit support and routing systems where a reliable, angle-mount solution is needed.

This clamp is suited for use in residential, commercial, and industrial electrical installations where rigid or intermediate metal conduit must be anchored at a right angle to overhead or structural members such as beams, channels, or strut. The 967 is sized for 2-1/2 inch trade size conduit. The right angle configuration is a common requirement in panel rooms, mechanical rooms, and industrial facilities where conduit runs parallel to the floor along ceiling beams or structural steel.

Key Features

• Right angle mounting secures conduit perpendicular to structural support beams
• Malleable iron construction provides high strength and impact resistance for heavy-duty applications
• U-bolt design with nuts allows simple, tool-friendly installation and secure conduit retention
• Sized for 2-1/2 inch trade size rigid and intermediate metal conduit
• Part of a conduit clamp product line available in trade sizes 1/2 inch through 4 inch

Compatibility

Designed for use with 2-1/2 inch trade size rigid metal conduit (RMC) and intermediate metal conduit (IMC) in right angle support applications.

Installation Notes

Installation is performed by a licensed electrician in accordance with applicable NEC requirements for conduit support spacing and mounting. De-energize all circuits in the work area before beginning conduit installation or support work. Ensure the structural member being fastened to is capable of bearing the load of the supported conduit run. Tighten each U-bolt nut evenly to prevent conduit from shifting without over-stressing the malleable iron casting.

Technical Specifications

• Trade Size: 2-1/2 inches
• Material: Malleable Iron
• Clamp Type: Right Angle U-Bolt Conduit Clamp
• Compatible Conduit Types: Rigid Metal Conduit (RMC), Intermediate Metal Conduit (IMC)

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 967
