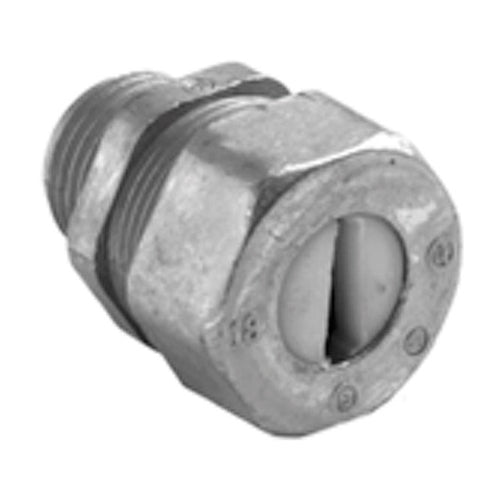

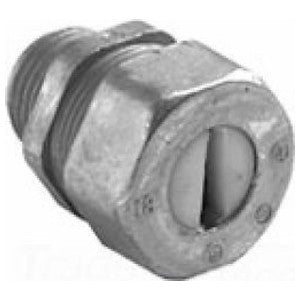

Bridgeport Fittings 762-UF threaded cable connector 3/4 in.

Product Description

The BRIDGEPORT FITTINGS 762-UF is a threaded cable connector designed for 14/3 to 10/3 underground feeder cable, connecting to a 3/4 inch K.O. This die-cast zinc connector features tapered threads, ensuring a secure and watertight seal. It is suitable for service entrance cable applications, providing a reliable connection in various environments.

• Designed for 14/3 to 10/3 underground feeder cable to 3/4 inch K.O.
• Constructed from die-cast zinc with tapered threads.
• Provides a watertight seal for secure electrical connections.

Product Highlights

Die-cast zinc connector with tapered threads for watertight underground feeder cable connections.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 762-UF
• Country of Origin: United States

Technical Specifications

• ECCN: EAR99
• Country of Origin: US - United States
• UNSPSC: 39121431
• Cable Size: (3) 14 to 10 AWG
• Constructional Feature: Watertight/Raintight
• Diameter: 1.63 IN
• Material: Ball Burnished Mirror Smooth Die-Cast Zinc
• Thread Length: 9/16 Inch
• Type: Compression
• Finish: Ball Burnished/Mirror Smooth
• Standards/Approvals: RoHS Compliant, REACH Compliant, UL 514B File No. E11698, NEMA FB-1
• Suitable For Use With: Underground Feeder Cable
• Trade Size: 3/4 in NPT
• UPC: 781747076205
• Connection Type: Threaded
