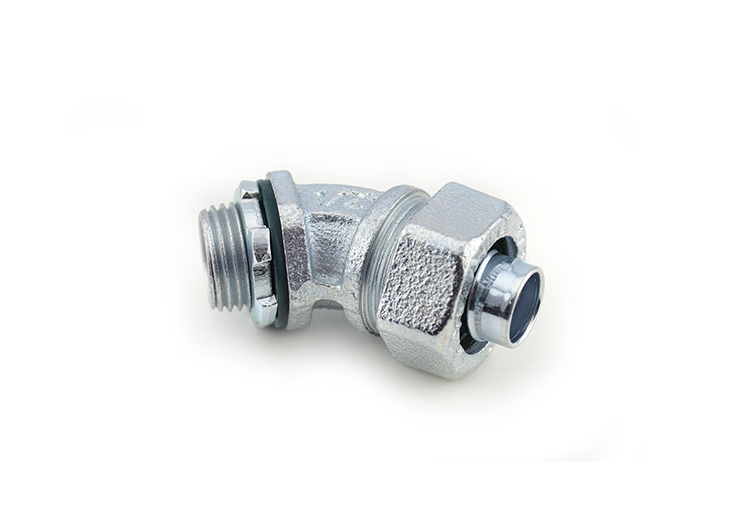

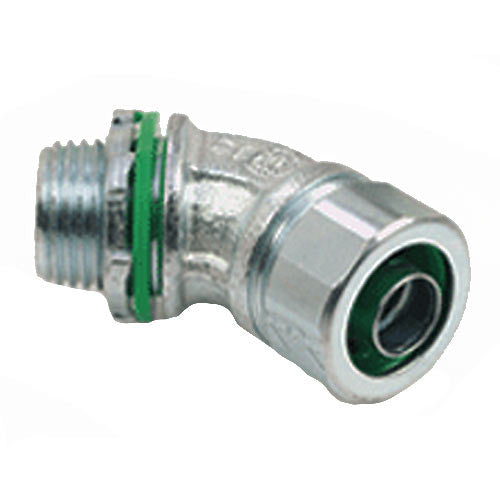

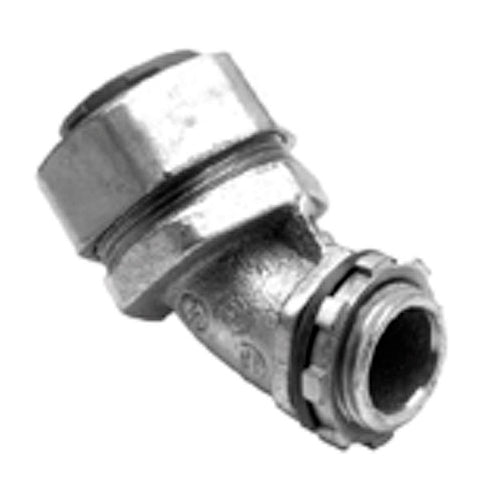

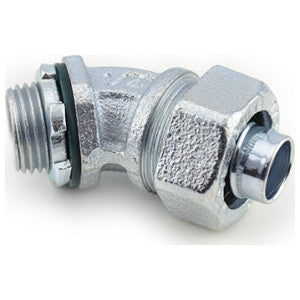

Bridgeport Fittings 450-SLT liquid tight connector 45 degree 1/2 in

Product Description

The BRIDGEPORT FITTINGS 450-SLT is a 45-degree liquid tight connector designed for joining metallic liquid tight conduit to an electrical box or enclosure. Constructed from malleable iron, it features NPT threads, a knockout gasket, and an internal sealing ring to ensure a liquid tight connection in wet locations. This 1/2 inch connector is suitable for various electrical installations requiring robust and secure conduit termination.

• Malleable iron construction offers superior strength, rigidity, and ability to flex without breaking.
• Features NPT threads, a knockout gasket, and an internal sealing ring for a liquid tight connection.
• Designed for easy installation by sliding the compression nut and sealing ring over the conduit.

Product Highlights

Malleable iron construction ensures superior strength and rigidity. Designed for wet locations, meeting NEMA TYPE 2, 3, 3R, 4 & 12 requirements.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 450-SLT
• Country of Origin: China

Technical Specifications

• Angle: 45 Degree
• Throat Type: Non-Insulated
• Finish: Zinc Plated
• UL Standard: UL-514B
• Material: Malleable Iron
• Size: 1/2 inch
• Connector Type: Liquid Tight
• End Type: FE
• NEMA Rating: FB-1
• Standard: UL, CSA
