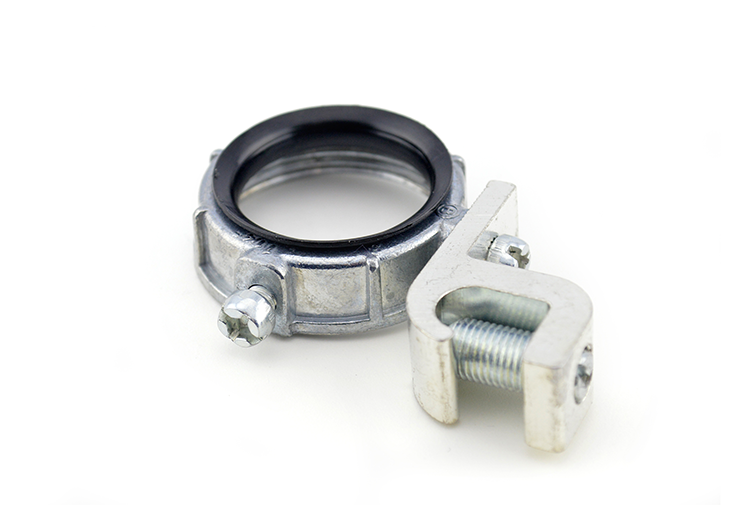

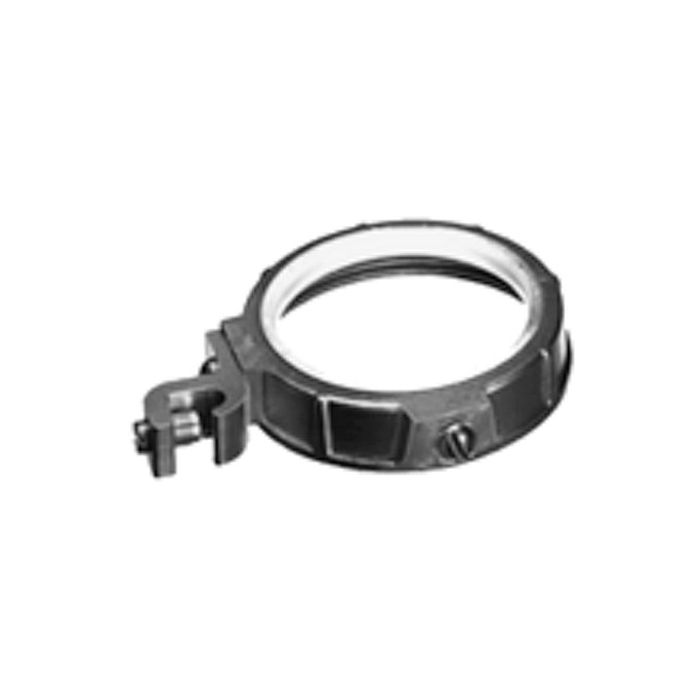

Bridgeport Fittings 384DC 1-1/4 grd.bush.ins.14-1/0 zinc

Product Description

The Bridgeport Fittings 384DC is a 1-1/4 inch zinc alloy insulated grounding bushing designed to terminate conduit to a cabinet with a locknut. It features a plastic metaliner to prevent wire insulation damage and a 14 to 1/0 lug for bonding a jumper to a neutral busbar. This bushing is temperature rated to 150°C and meets UL-514B & UL467 standards.

• Eco-Friendly: Zinc casting byproducts can be melted and recast without property degradation.
• Heat Rating: Temperature rated to 150°C for use in industrial environments.
• Grounded & Insulated: Tin-plated aluminum alloy 6061-T6 grounding lug and plastic metaliner prevent wire insulation damage.

Product Highlights

This insulated grounding bushing ensures secure conduit termination and wire protection, featuring a 150°C temperature rating and a durable zinc alloy construction.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 384DC

Technical Specifications

• Finish: Ball Burnished Mirror Smooth
• UL Standard: UL-514B & UL467
• Material: Zinc Alloy
• Color: Grey with Black Insulator
• UNSPSC: 39121312
• EAN/UCC-13: 0781747093844
• Prop 65 Flag: No
• Size: 1-1/4 Inch
• Temperature Rating: 150 C
• Type: Bushing
• Manufacturer: Bridgeport Fittings, LLC.
• AC Cable Size: 14 to 1/0 AWG
• Insulation Type: Insulated
