Bridgeport Fittings 322-B Bushing Nylon Rigid/IMC Conduit 3/4 In.

Product Description

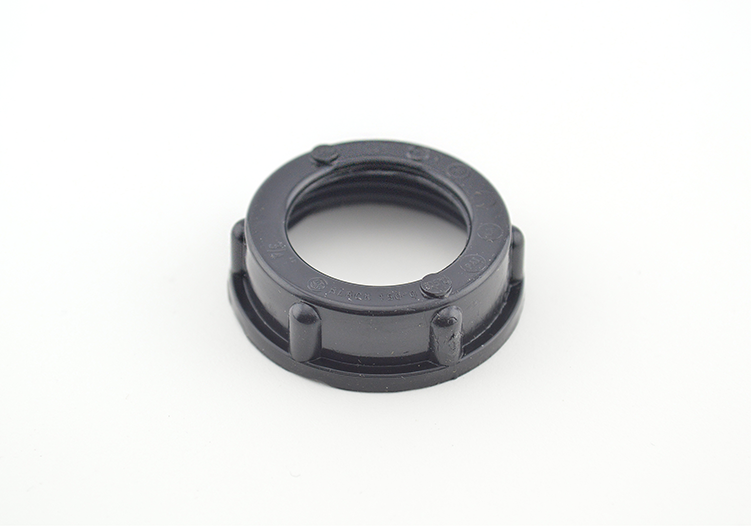

The BRIDGEPORT FITTINGS 322-B is a 3/4 inch plastic bushing designed for rigid and IMC conduits. It is used with a locknut to terminate threaded rigid and IMC conduits to a box, or with a connector to protect wire insulation from damage. This nylon plastic bushing has a temperature rating of 150°C, ensuring performance in various electrical applications. It helps protect conductors when entering a box.

• Plastic material construction.
• 3/4 inch trade size for rigid and IMC conduits.
• Temperature rating of 150°C.

Product Highlights

Durable nylon plastic bushing for rigid and IMC conduits, rated for 150°C, protecting conductors and wire insulation.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 322-B
• Country of Origin: United States

Technical Specifications

• Temperature Rating: 150°C
• Color: Black
• UL Standard: UL-514B
• Material: Nylon
• Trade Size: 3/4 Inch
• Type: Bushing
• Bushing Type: Rigid Conduit
• Installation: FNPT
• NEMA Standard: FB-1
