Bridgeport 684-DC2 Connector, Strap, Two Screw, Zinc Die Cast, Size K.O. 1-1/4 Inch

Product Description

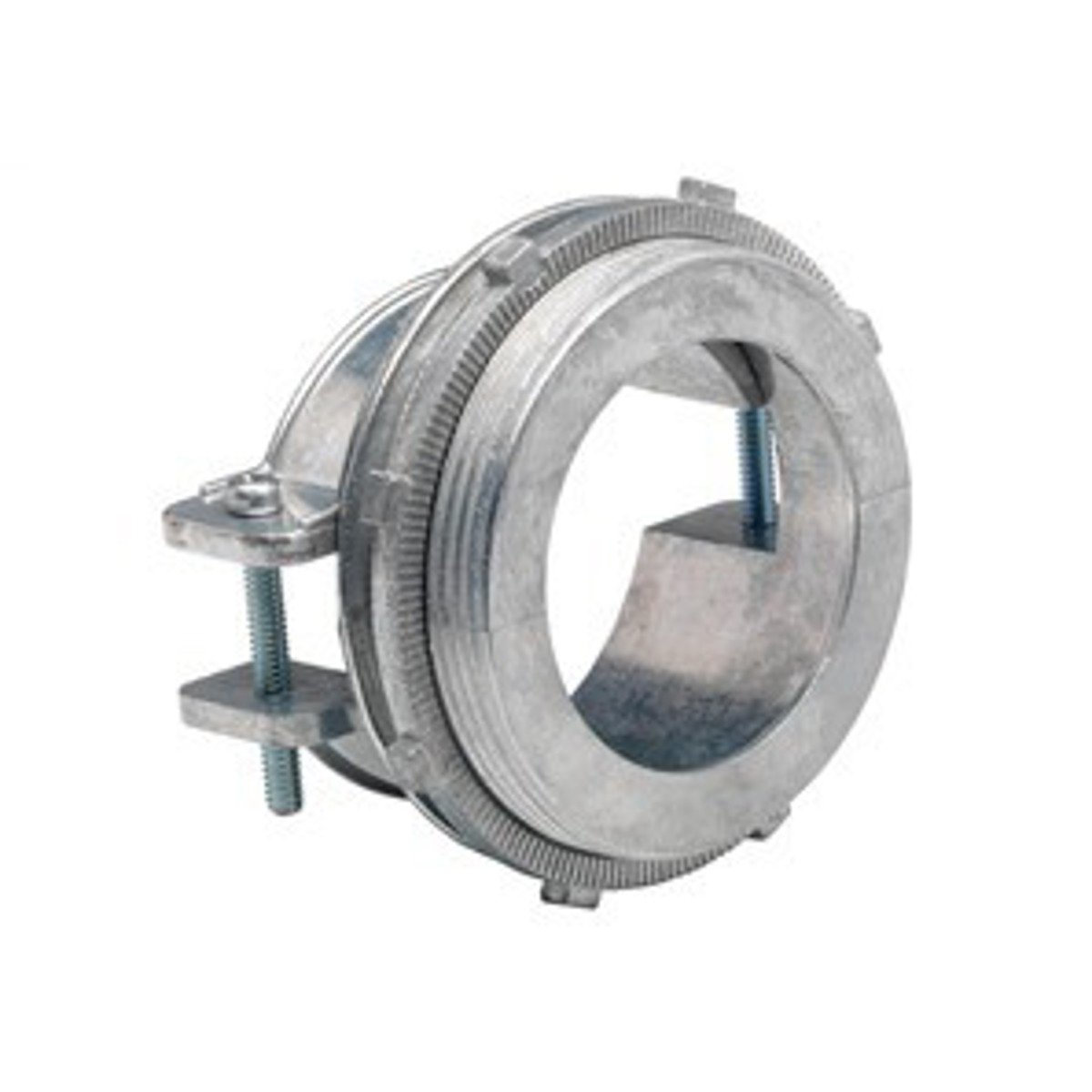

The Bridgeport 684-DC2 is a connector strap designed for metal clad cables. This connector is suitable for use with steel or aluminum interlocked metal clad cable between one point one inches and one point twenty-five inches in size, specifically for four AWG to three AWG conductor ranges. It is constructed of zinc die cast material, ensuring durability. This product is ideal for both residential and commercial electrical installations.

• Rated for up to one and one-quarter inches cable.
• Compatible with UL standards.
• Designed for easy installation with a two screw mechanism.

Product Highlights

The Bridgeport 684-DC2 provides reliable support and secure connections for armored cables.

Product Information

Standard Information

• Brand: Bridgeport
• Country of Origin: United States

Technical Specifications

• Catalog Number: 684-DC2
• Conductor Range: 4/4 to 3/4 inches
• Material: Zinc Die Cast
• Finish: Ball Burnished
• Number of Conductors: 1 Cable
• Standards Compliance: UL
• UPC: 781747156846
• RoHS Compliance: Yes
