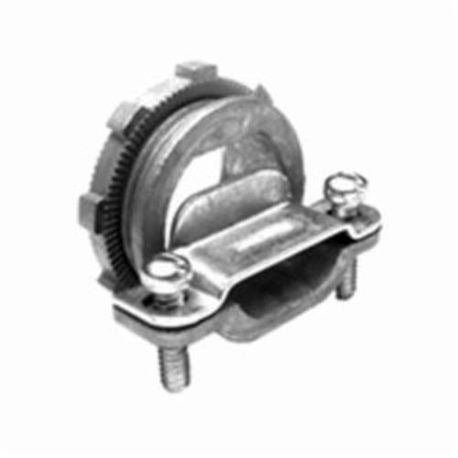

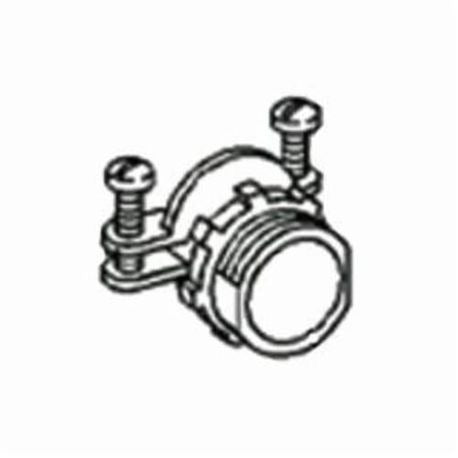

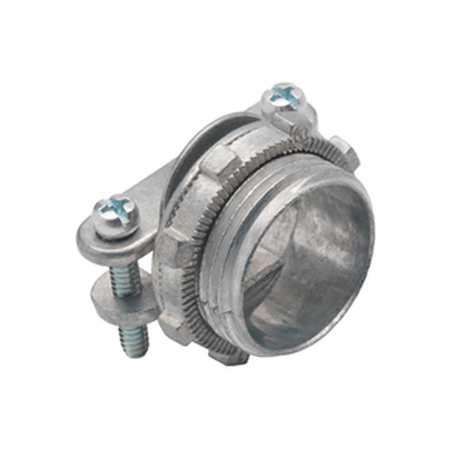

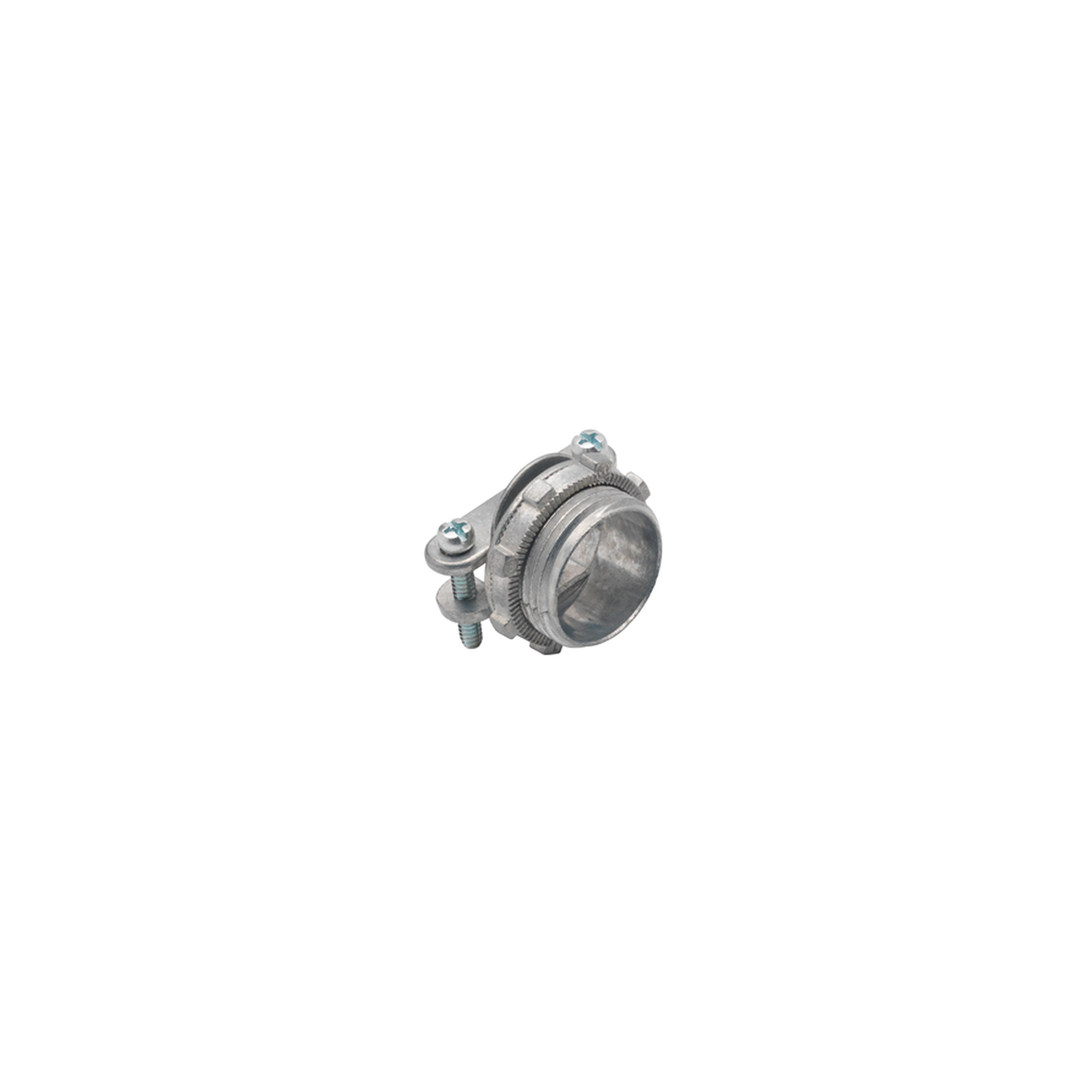

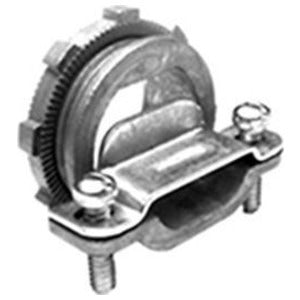

BRIDGEPORT FITTINGS Bridgeport Fittings 670-DC2 Strap-Type Cable Connector 3/4 in (180°)
BRIDGEPORT FITTINGS Bridgeport Fittings 670-DC2 Strap-Type Cable Connector 3/4 in (180°)
BRIDGEPORT FITTINGS Bridgeport Fittings 670-DC2 Strap-Type Cable Connector 3/4 in (180°)
BRIDGEPORT FITTINGS Bridgeport Fittings 670-DC2 Strap-Type Cable Connector 3/4 in (180°)
BRIDGEPORT FITTINGS Bridgeport Fittings 670-DC2 Strap-Type Cable Connector 3/4 in (180°)
BRIDGEPORT FITTINGS Bridgeport Fittings 670-DC2 Strap-Type Cable Connector 3/4 in (180°)
BRIDGEPORT FITTINGS Bridgeport Fittings 670-DC2 Strap-Type Cable Connector 3/4 in (180°)
BRIDGEPORT FITTINGS Bridgeport Fittings 670-DC2 Strap-Type Cable Connector 3/4 in (180°)
BRIDGEPORT FITTINGS Bridgeport Fittings 670-DC2 Strap-Type Cable Connector 3/4 in (180°)
BRIDGEPORT FITTINGS Bridgeport Fittings 670-DC2 Strap-Type Cable Connector 3/4 in (180°)

Bridgeport Fittings 670-DC2 Strap-Type Cable Connector 3/4 in (180°)

Brand: BRIDGEPORT FITTINGS
SKU: 670-DC2
Availability: In Stock

Ships same day if ordered by 12 pm
$447.45
$447.45
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Bridgeport Fittings 670-DC2 is a two-screw strap-type cable connector in zinc die-cast construction designed to secure 3/4 inch oval service entrance or nonmetallic (NM) cable to a 3/4 inch enclosure knockout. The 180° strap configuration has a 0.812 inch throat diameter, ball burnished/mirror-smooth finish, and is furnished with 2-way Phillips/slotted head screws. Overall dimensions are 1-5/8 in L x 17/32 in W x 1-1/32 in D.

  • Secures 3/4 in oval or nonmetallic (NM) cable to a 3/4 in enclosure knockout
  • Zinc die-cast two-screw strap design furnished with 2-way Phillips/slotted head screws
  • 180° strap configuration with 0.812 in throat diameter and ball burnished/mirror-smooth finish; dimensions 1-5/8 in x 17/32 in x 1-1/32 in

Product Highlights

Two-screw zinc die-cast strap connector for 3/4 in knockout; 180° angle; 0.812 in throat; for oval and NM cable.

Product Information

Standard Information

  • Brand: BRIDGEPORT FITTINGS
  • Manufacturer Part Number: 670-DC2
  • Country of Origin: United States
Technical Specifications
MPN
670-DC2
Brand
Bridgeport Fittings
Manufacturer
Bridgeport Fittings
Product Name
Service entrance 2-screw strap-type cable connector (oval)
Connector Type
Two-screw strap-type
Suitable For
Oval service entrance cable, non-metallic (NM) cable
Knockout Size
3/4 in
Trade Size
3/4 in
Angle
180°
Throat Diameter
0.812 in
Material
Zinc die-cast
Finish
Ball burnished / mirror-smooth
Dimensions
1-5/8 in L x 17/32 in W x 1-1/32 in D
Weight
0.12 lb
Hardware
Furnished with 2-way Phillips/slotted head screw
Application
For connecting nonmetallic cable to box or enclosure
Certifications
RoHS Compliant; UL 514B File No. E15123; Federal Specification A-A-50552; NEMA FB-1; CSA File No. LR39354; REACH Compliant
Country of Origin
United States
UPC
78174715670
UNSPSC
39121419
ECCN
EAR99
Product SKU
88032030
Catalog Number
670DC2
