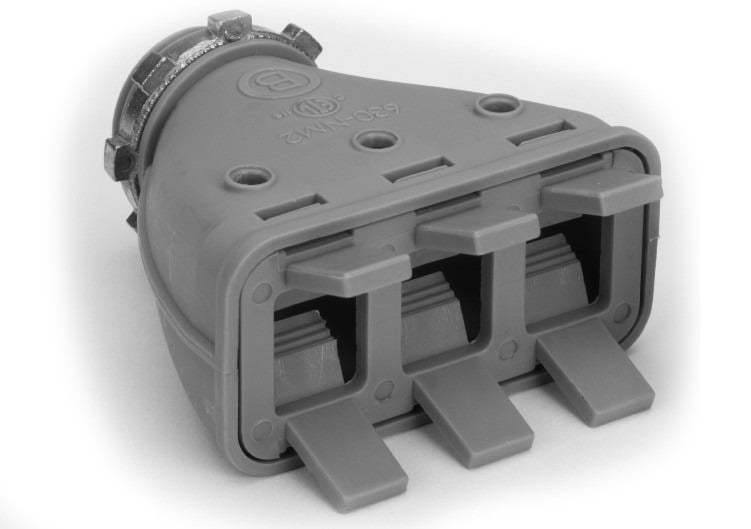

Bridgeport 630-NM2 Mighty-Merge Transition Fittings 3/4 Multi-NM Connector

Product Description

The Bridgeport 630-NM2 is designed for the efficient installation of multiple nonmetallic cables into a single three-fourths knockout. This connector simplifies the process, allowing users to easily squeeze the tabs to install or remove cables. It is well-suited for the prefabrication of cable bundles, delivering significant labor savings compared to traditional junction boxes or fitting assemblies.

• Each port can accommodate one cable ranging from 10/3 to 14/2.
• Supports oval cables including one 10/2, 12/2, or 14/2.
• Allows dual installation for oval 14/3 or 12/3, and two oval NM cables from 10/2 to 14/2.

Product Highlights

This fitting is patented for ease of use and optimal performance in electrical installations.

Product Information

Standard Information

• Catalog Number: 630-NM2
• Manufacturer: Bridgeport Fittings, LLC

Technical Specifications

• Material: Plastic
• Country of Origin: China
• Application: Designed for multiple nonmetallic cable installations
• Conductor Range: Up to six conductors maximum
• NEMA Rating: FB-1
• Standard: cETLus
• UPC: 781747406309
• Item Type: Connector
• Size: 3/4 in
