Product Description

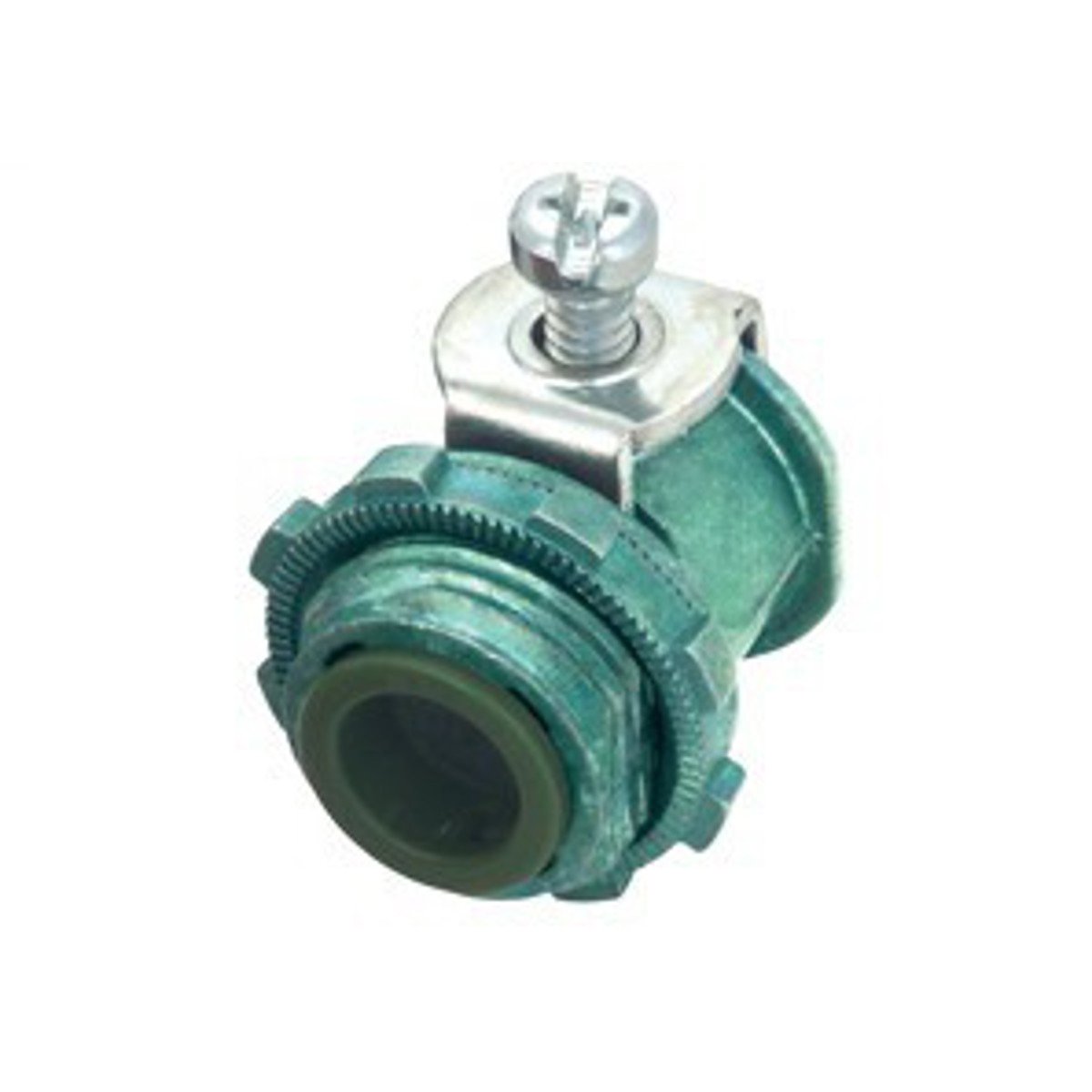

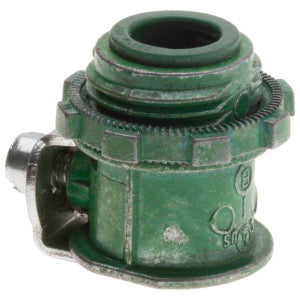

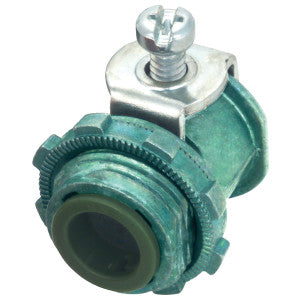

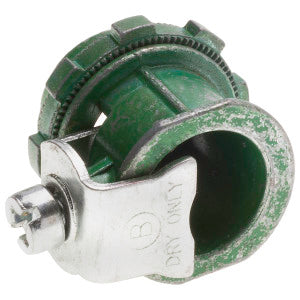

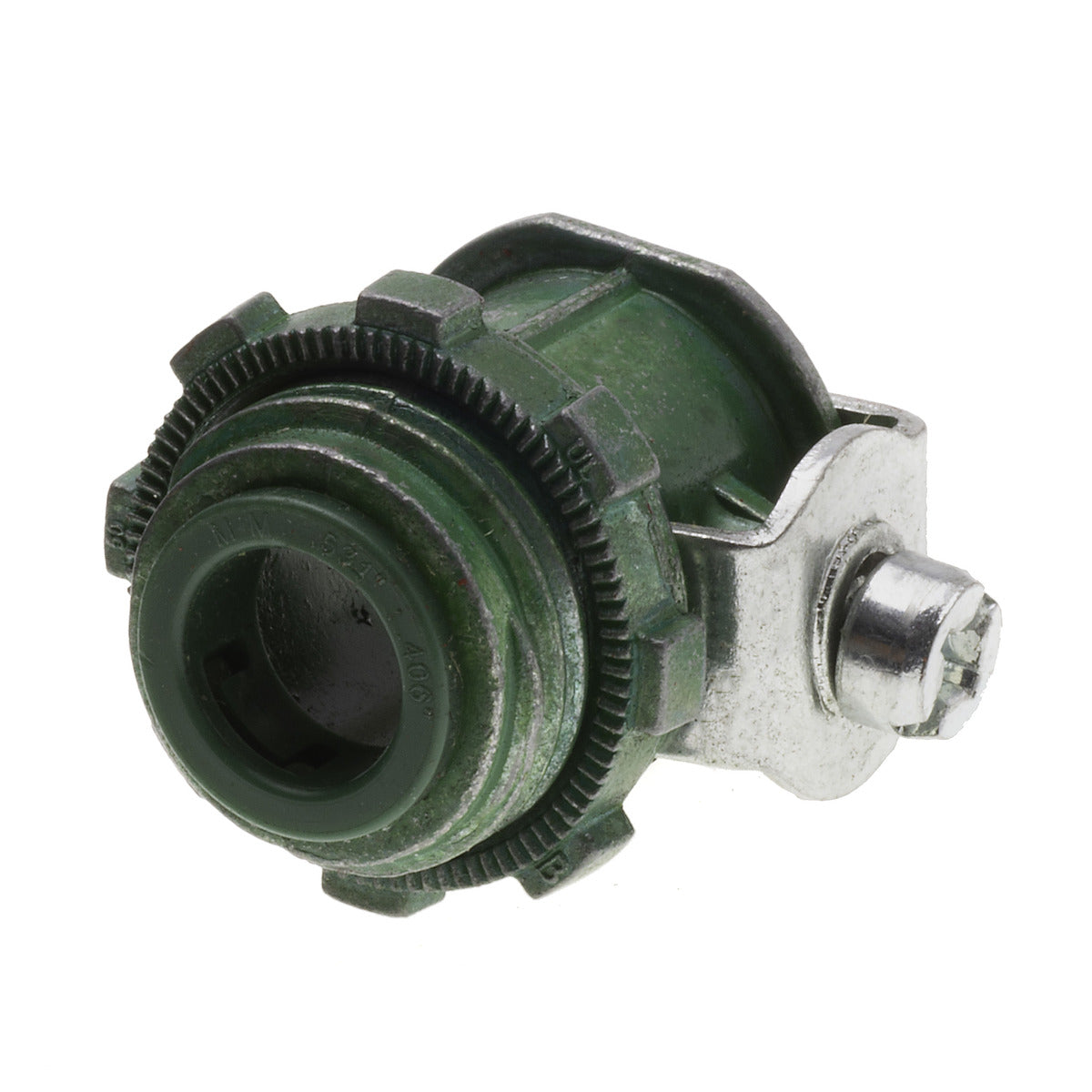

The BRIDGEPORT 570-GI HCF Green Cable Connector is designed for use with steel or aluminum 14/2 to 10/3 AWG Health Care Facility (HCF) Armored Cable, AC/MC/MCI-A. This connector is made from zinc die cast with a green colored finish and is suitable for use in health care facility applications.
- Recommended for steel or aluminum 14/2 to 10/3 AWG Health Care Facility (HCF) Armored Cable
- Features a green colored finish for easy identification in HCF applications
- Constructed from durable zinc die cast material
Product Highlights
The Bridgeport 570-GI HCF Green Cable Connector ensures secure connections in health care facilities with its durable construction and easy installation.
Product Information
Standard Information
-
Brand: BRIDGEPORT
-
Manufacturer Part Number: 570-GI
-
Country of Origin: United States
Technical Specifications
-
Catalog Number: 570-GI
-
Manufacturer: Bridgeport Fittings, LLC
-
Brand: Bridgeport
-
Country of Origin: United States
-
Made in USA: Yes
-
Application: Recommended cable types for use with Steel or Aluminum 14/2 (.38" 0 min) to 10/3 AWG (.61" 0 max) Health Care Facility (HCF) Armored Cable. AC/MC/MCI-A
-
Conductor Range: 14/2 (.38" 0 min) to 10/3 AWG (.61" 0 max)
-
Finish: Green Colored
-
Material: Zinc Die Cast
-
NEMA Rating: FB-1
-
Number of Conductors: 1 Cable
-
Special Features: HCF/HCFMCI-A
-
Standard: UL
-
Item Type: Connector
-
Size: 3/8 in
-
Temperature Rating: 105 Degrees C
-
Type: Straight
-
Trade Size: 3/8 Inch
-
Knockout Size: 1/2 Inch
-
Cable Opening: Single
-
Cable/Conduit Type: Steel/Aluminum Armored/Metal Clad Cable
-
Cord Size: (2) 14 AWG to (3) 10 AWG (Armored/Metal Clad Cable)
-
Length: 1 Inch
-
Installation: Strap
-
Throat Type: Insulated
-
Approval: UL 514B
-
ROHS Compatible: True
-
Applicable Standard: Federal Specification A-A-50552, NEMA FB-1
-
Throat Size: 13/32 Inch Dia
-
Angle: 180 Deg
-
Connector Type: Color-Coded
-
Connection Type: U Shape
-
Use With: AC/MC Cable; Health Care Facility Cable
-
Temp. Rating: 105°C
-
Ul Standard: UL-514B
-
UPC: 781747757067
