Bridgeport 563-DC2 Multi-Purpose Connector Power 1/4 in

Product Description

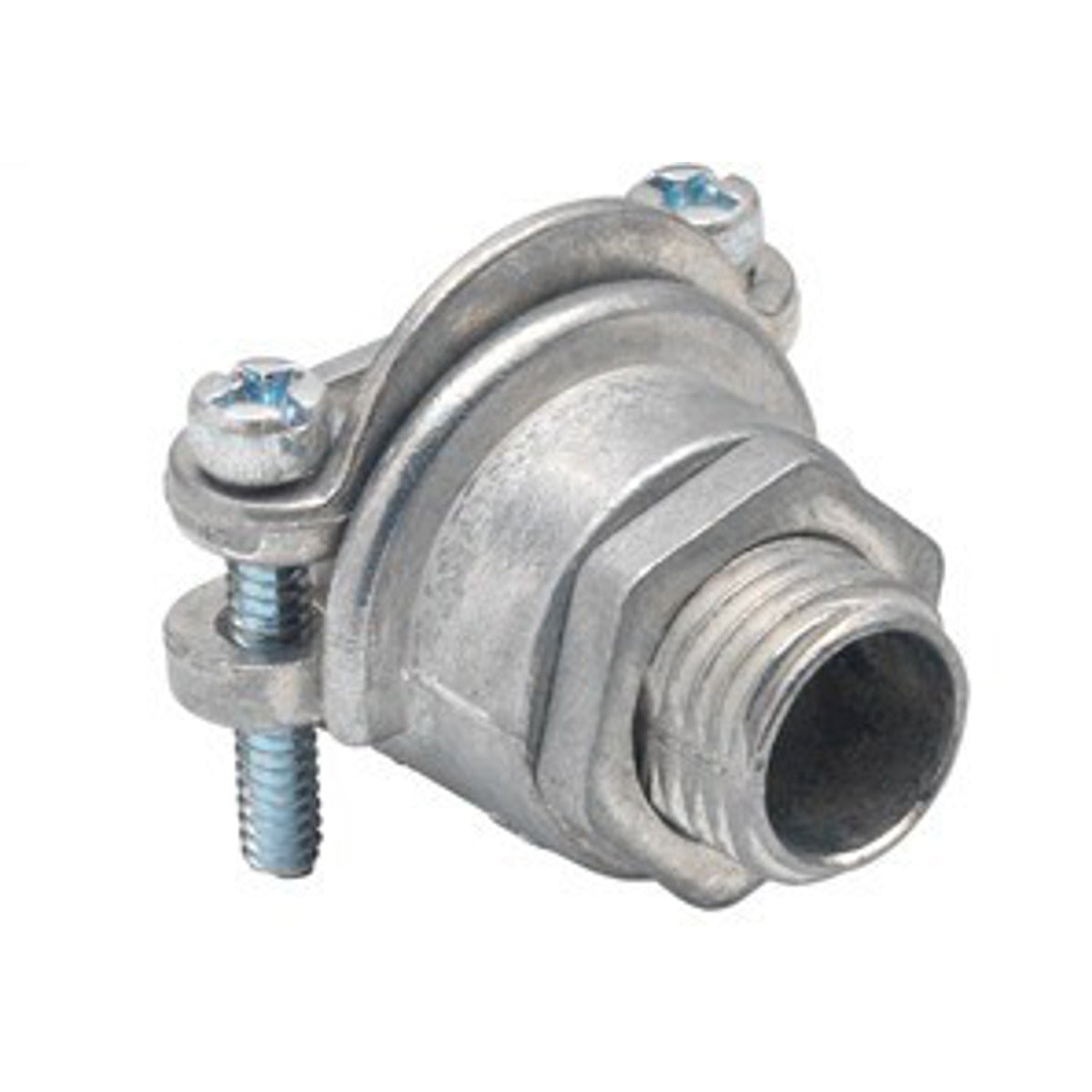

The Bridgeport 563-DC2 is a Multi-Purpose Connector designed for various cable types. Ideal for use with 14/2 or 12/2 nonmetallic sheath cables, steel or aluminum armored cables, and flexible metal conduits. This connector fits 1/4 inch knockouts, making it suitable for lighting and other electrical applications.

• Compatible with various cable types including NM-B, AC, MC, and FMC.
• Meets UL and RoHS standards.
• Constructed from durable zinc die-cast material.

Product Highlights

The 563-DC2 Multi-Purpose Connector effectively connects multiple types of electrical cables securely and reliably.

Product Information

Standard Information

• Brand: Bridgeport
• Manufacturer: Bridgeport Fittings, LLC

Technical Specifications

• Catalog Number: 563-DC2
• Application: Suitable for 14/2 or 12/2 nonmetallic and armored cables
• Conductor Range: 14/2 to 12/2
• Material: Zinc Die Cast
• Finish: Ball Burnished
• Number of Conductors: 1 Cable
• NEMA Rating: FB-1
• Country of Origin: China
