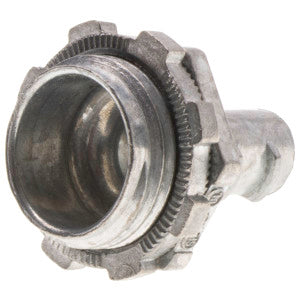

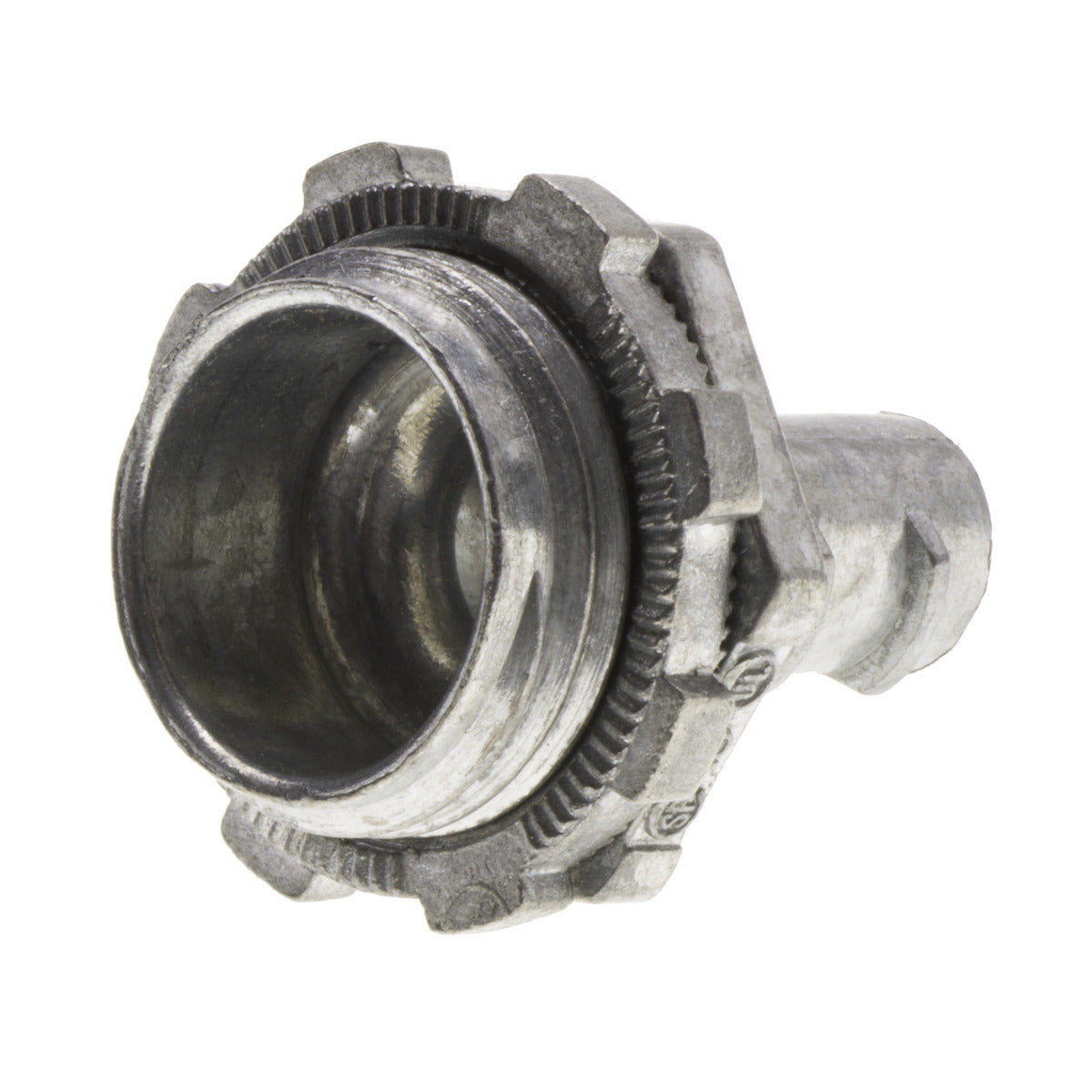

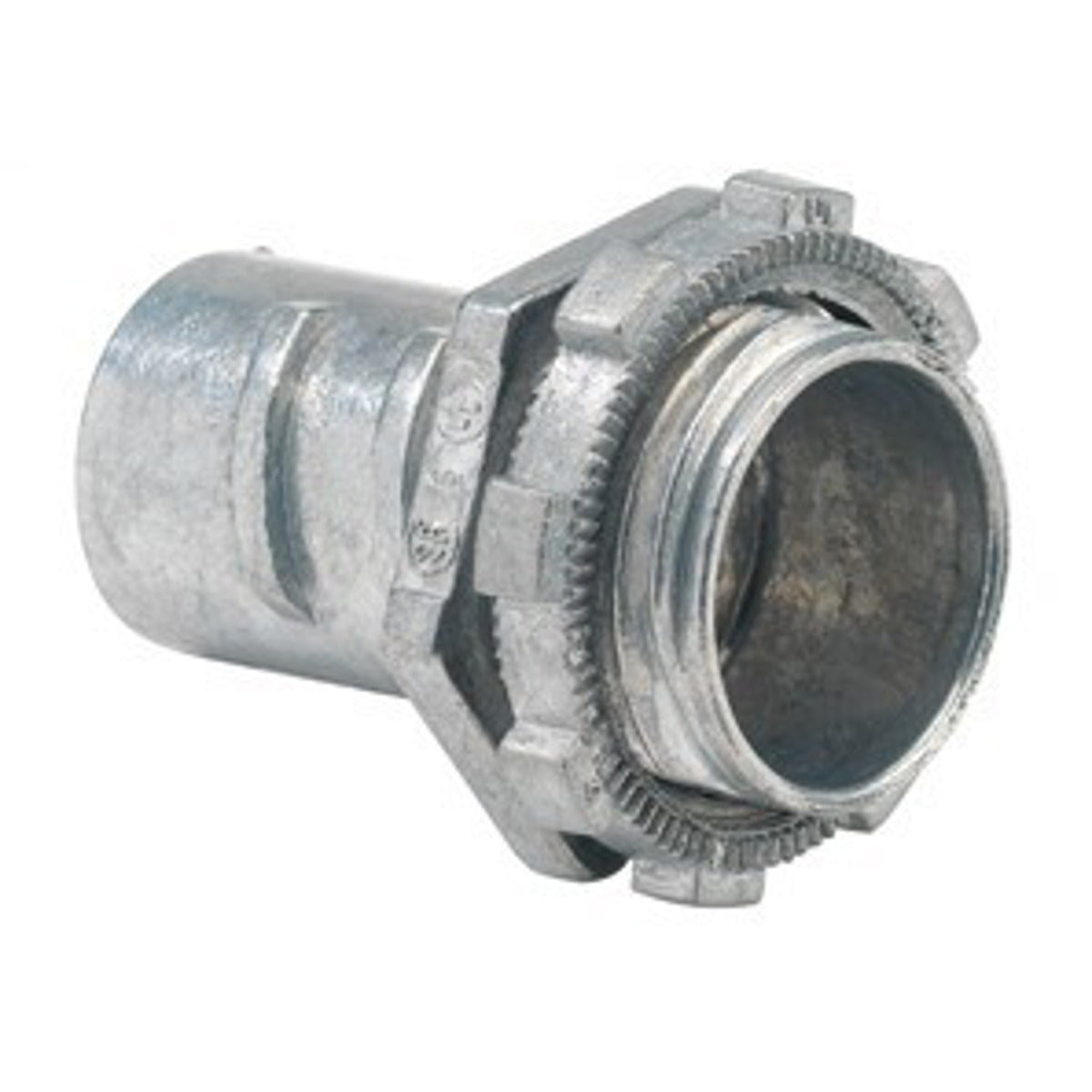

Bridgeport 524-DC2 Connector, Screw-In, Zinc Die Cast, Flex Size 1-1/2 Inch

Product Description

The BRIDGEPORT 524-DC2 connector is a screw-in type, designed to connect flexible metal conduit to a box or enclosure. Constructed from zinc die cast with a ball burnished finish, this straight connector fits a 1-1/2 inch flex size. It features a non-insulated throat and is UL listed. Meets Federal Specification A-A-50552, NEMA FB-1 standards.

• Connects flexible metal conduit to box or enclosure
• Made from zinc die cast with a ball burnished finish
• Features a screw-in installation

Product Highlights

This Bridgeport connector ensures a reliable connection between flexible metal conduit and electrical boxes, with easy screw-in installation.

Product Information

Standard Information

• Brand: BRIDGEPORT
• Manufacturer Part Number: 524-DC2
• Country of Origin: United States

Technical Specifications

• Catalog Number: 524-DC2
• Manufacturer: Bridgeport Fittings, LLC
• Brand: Bridgeport
• Country of Origin: United States
• Made in USA: Yes
• Application: Used to connect flexible metal conduit to box or enclosure.
• Finish: Ball Burnished
• Material: Zinc Die Cast
• NEMA Rating: FB-1
• Standard: UL
• UPC: 781747155245
• GTIN: 00781747155245
• Item Type: Connector
• Size: 1 1/2 in
• Type: Straight
• Trade Size: 1-1/2 Inch
• Knockout Size: 1-1/2 Inch
• Cable Opening: Single
• Cable/Conduit Type: Flexible Metal Conduit
• Installation: Screw-In
• Throat Type: Non-Insulated
• Approval: UL 514B
• ROHS Compatible: True
• Applicable Standard: Federal Specification A-A-50552, NEMA FB-1
• Throat Size: 1.446 Inch Dia
• Ul Standard: UL-514B
• Angle: 180 Deg
• Applications: Used to connect flexible metal conduit to box or enclosure.
• Connector Type: Screw-In
• Connection Type: Screw-In
• Use With: Flexible Metallic Conduit
• UNSPSC: 39121419
